An Hour Before Closing, a Missing Part, and Each Other’s TimePS5 HDMI Port Torn Off + Missing Capacitor Repair — Downtown LA
About an hour before closing on a Saturday, a young customer called about a PS5 HDMI port. The port had broken clean off the board, and when it went, it knocked a capacitor so small most people can’t see it without a microscope. No schematic, no part number — so we found a matching part on a donor iPhone board and moved it over. This one is a repair journal, and also a few personal thoughts about the strangers a broken device brings together.
A tiny capacitor next to it was knocked off and lost
Matching part moved over from a donor iPhone board
Boots to the test monitor, cleaned inside
The job, on one card
What came in, what we found, and how long a job like this really takes.
| Model | Sony PlayStation 5 (Disc Edition) |
|---|---|
| Problem | HDMI port broken completely off the board and rattling loose inside the shell. When it tore away, it pushed a tiny capacitor off the board beside it |
| Repair | Pads checked (all intact) → missing capacitor identified → matching capacitor harvested from a donor iPhone board and soldered in → new HDMI port soldered → reassembled and tested |
| Extras | Interior cleaning, added at check-in |
| Price | Cleaning +$30 with any repair |
| Bench time | 2–3 hours for the port job |
| Teardown | Microscope work4 / 5 |
| Tech’s note | When a port tears off this hard, the pads often come with it — sometimes the board is gouged and has to be rebuilt before a new port can go on. Thankfully, every pad was still there. The real problem was the capacitor that had vanished. With no schematic and no spec for that part, it used to be a dead end. These days, AI tools helped me identify a capacitor with the same specs quickly, and I pulled one from an iPhone board. Fifteen years of hands-on work, plus a new tool — that combination solves jobs that used to get stuck. |
Why a torn-off port is more than a port swap
A port that breaks loose doesn’t only take itself out. Here’s what we check before anything gets soldered.
The pads can tear with it
The port is held by solder pads on the board. A hard pull can rip those pads off, or even dig into the board. Then the footprint has to be rebuilt first, which adds time and risk.
Nearby parts get knocked off
The components around an HDMI port are tiny. When the port tears away it can sweep them off the board, and they’re almost impossible to find afterward. A missing one has to be replaced with a part of the same value.
No schematic, no part number
Console boards don’t come with public schematics. Identifying the right replacement takes experience — and now, AI tools speed that search up a lot.
From a loose port to a clean picture
Check the pads, replace what went missing, then put the new port on.

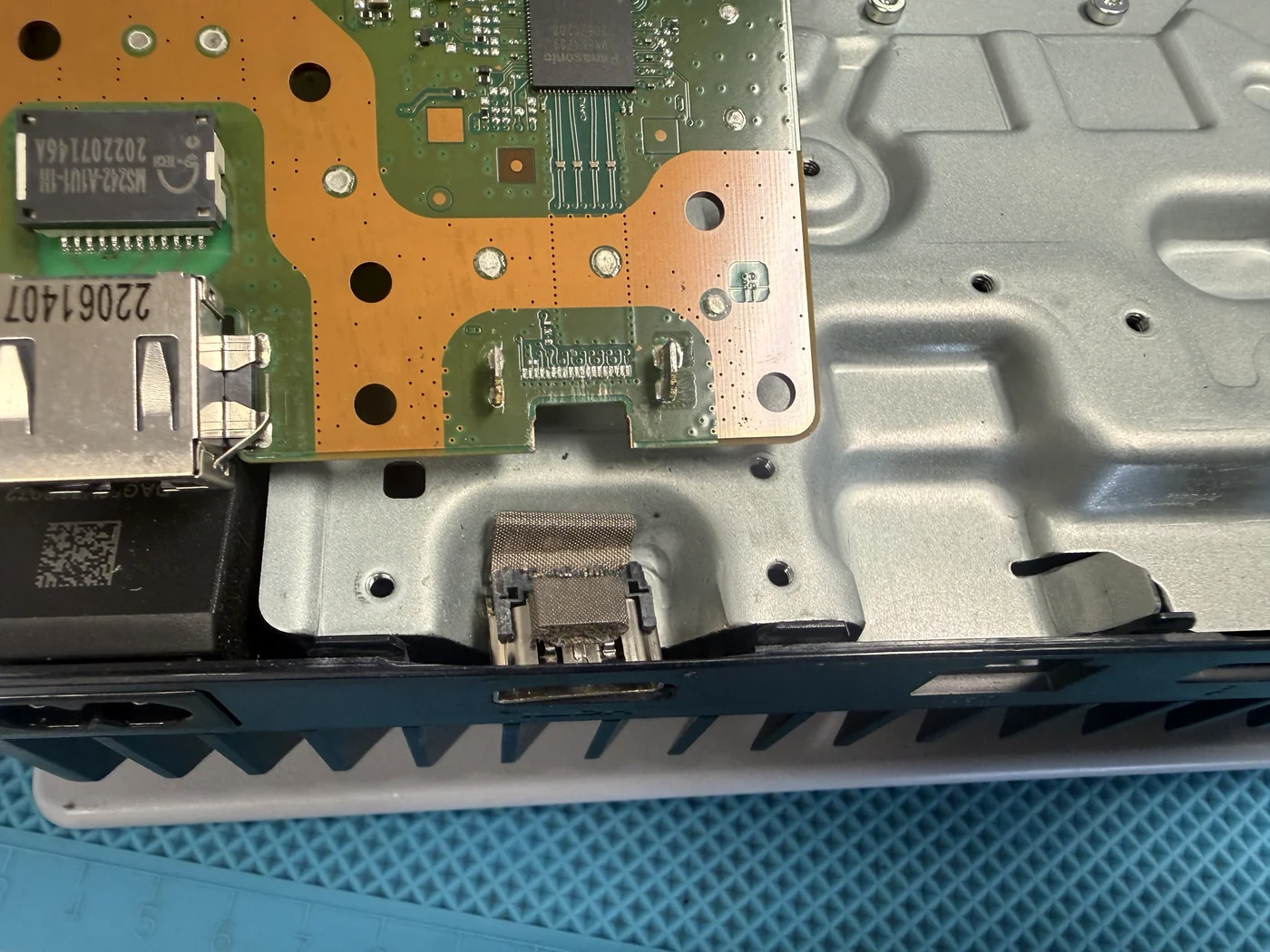

Opened up: the pads survived
The port had separated from the board entirely and stayed behind in the chassis opening. The first thing to check is the pads — and every one of them was still in place. That’s the good news.

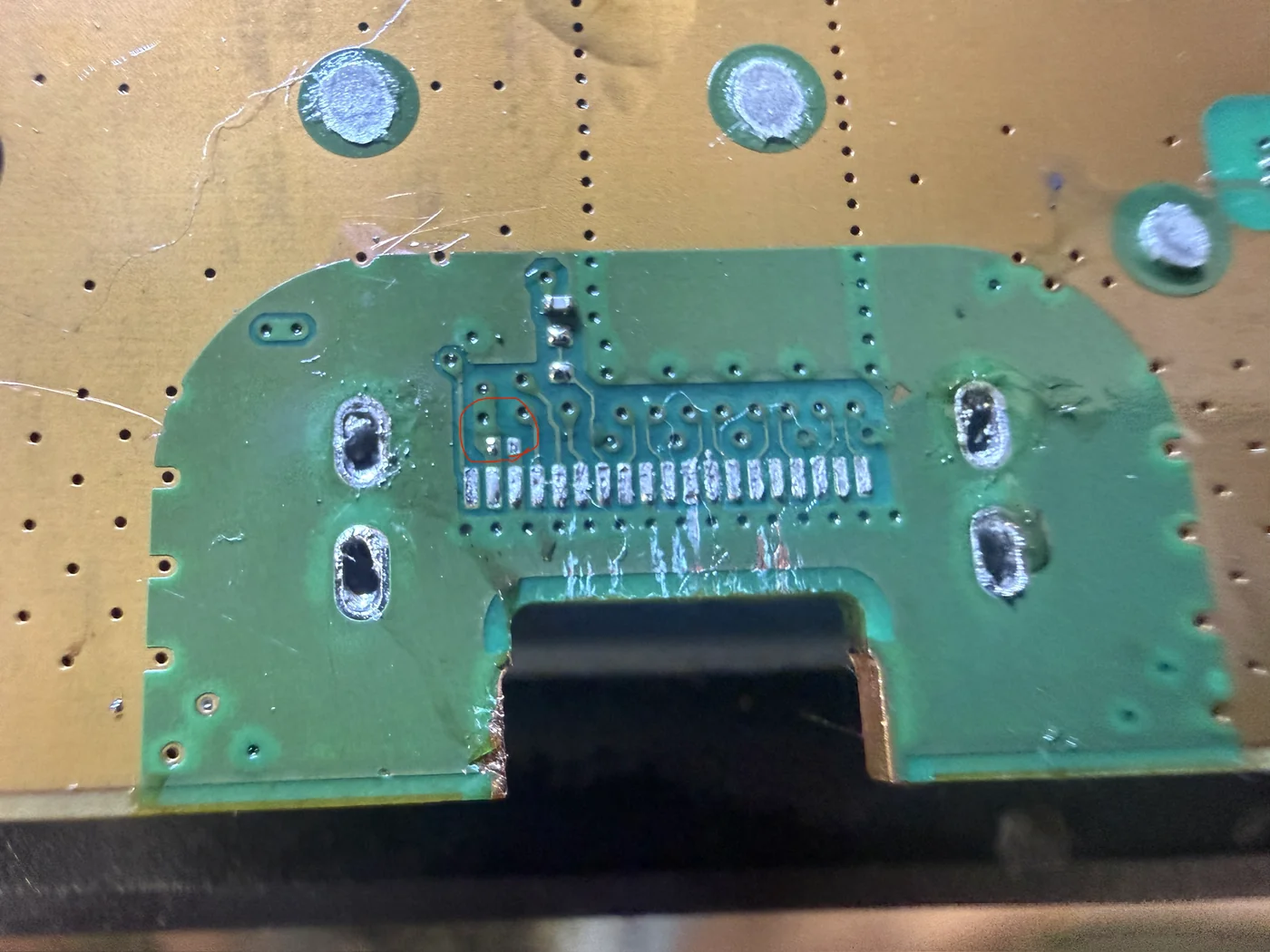

Something is missing
Under magnification, two empty pads beside the port footprint. When the port tore off, it pushed a tiny capacitor off the board and it was gone. Without it, the new port alone might not work properly.

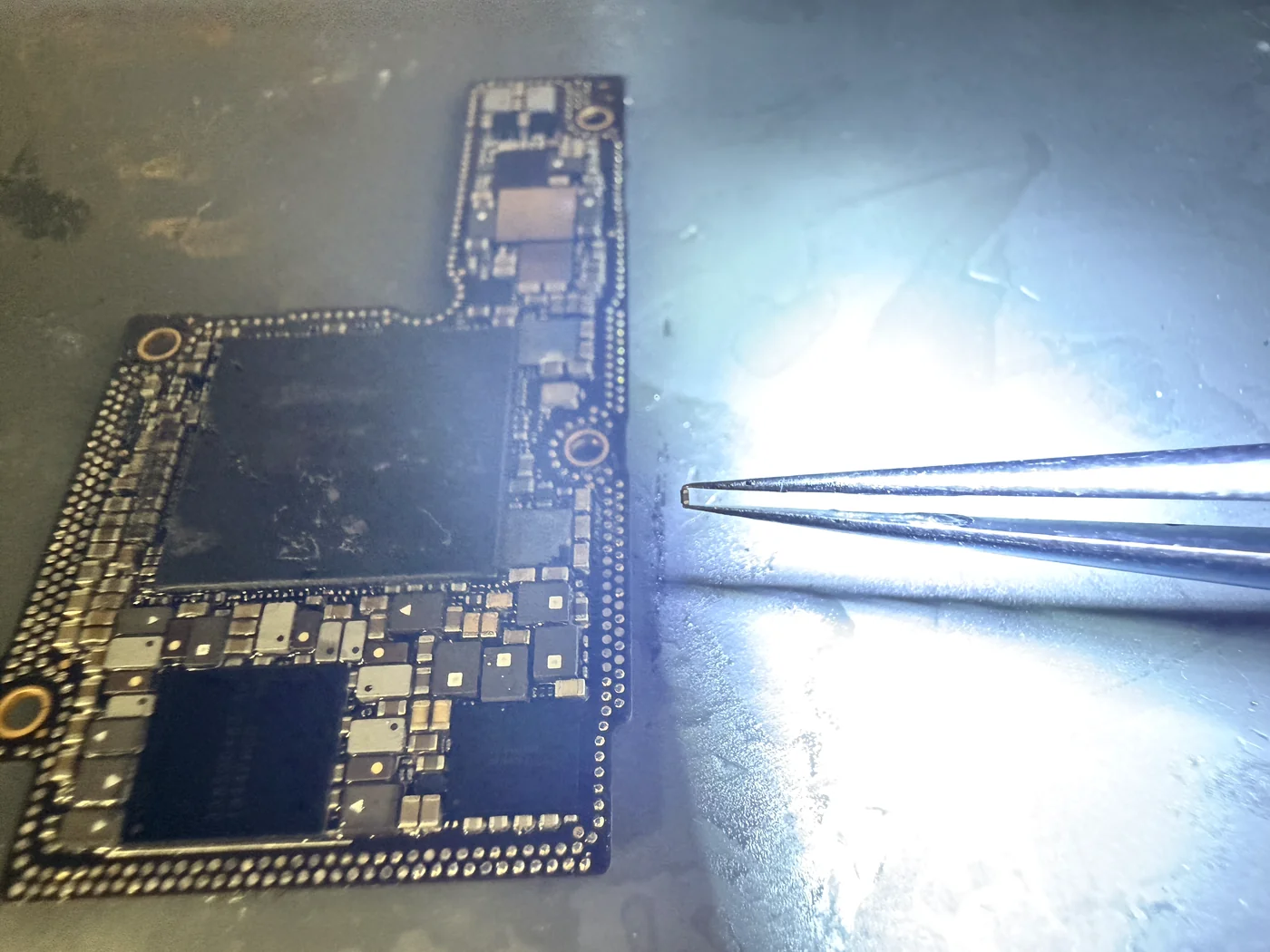

A part from an iPhone
With AI help, we identified a capacitor with the same specs and harvested one from a donor iPhone logic board. See the speck at the tip of the tweezers? That’s the whole part.

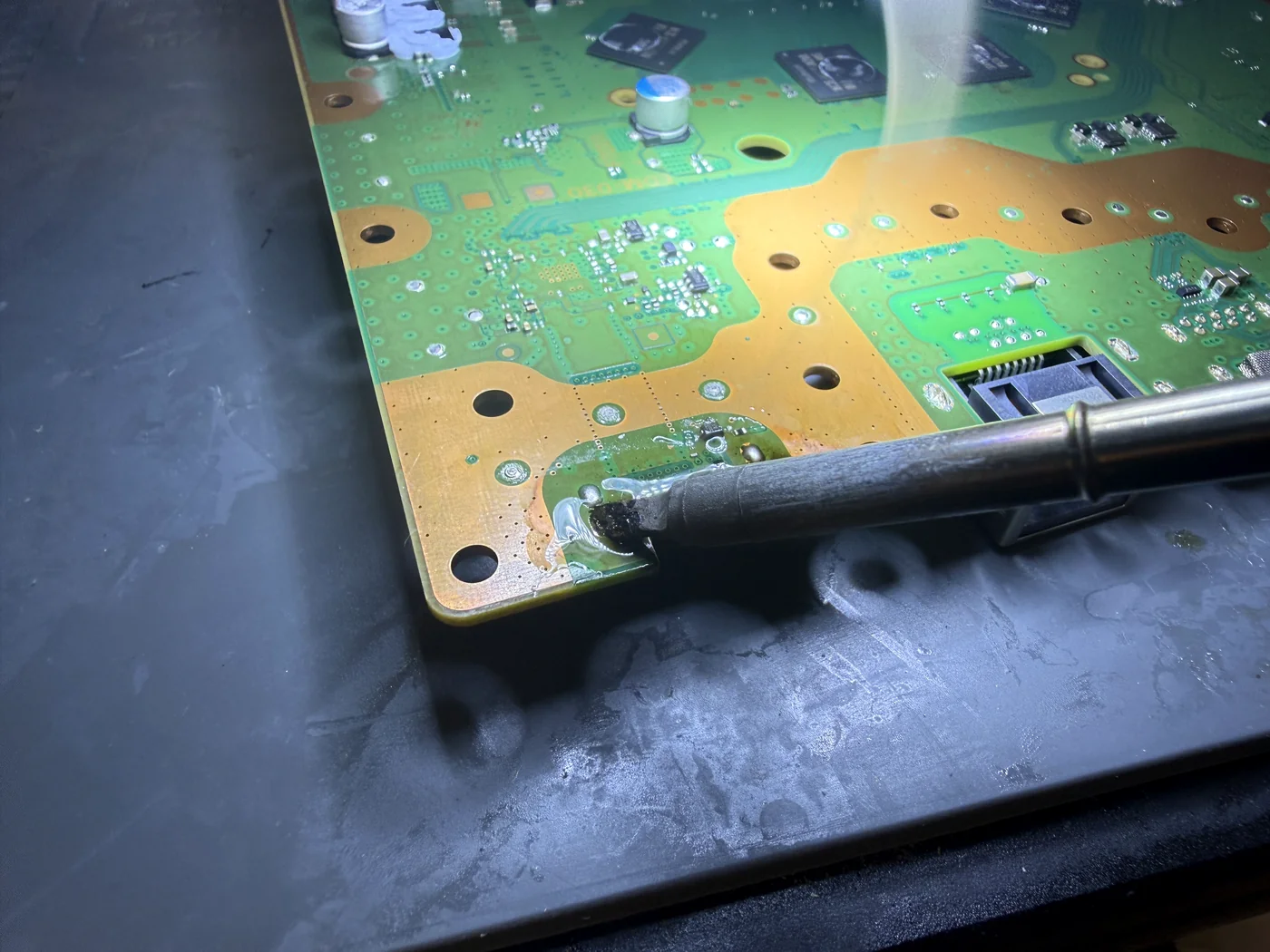

Soldered into place
The capacitor goes onto its pads, and the port footprint is cleaned and tinned with flux so the new connector sits flat and solders evenly.

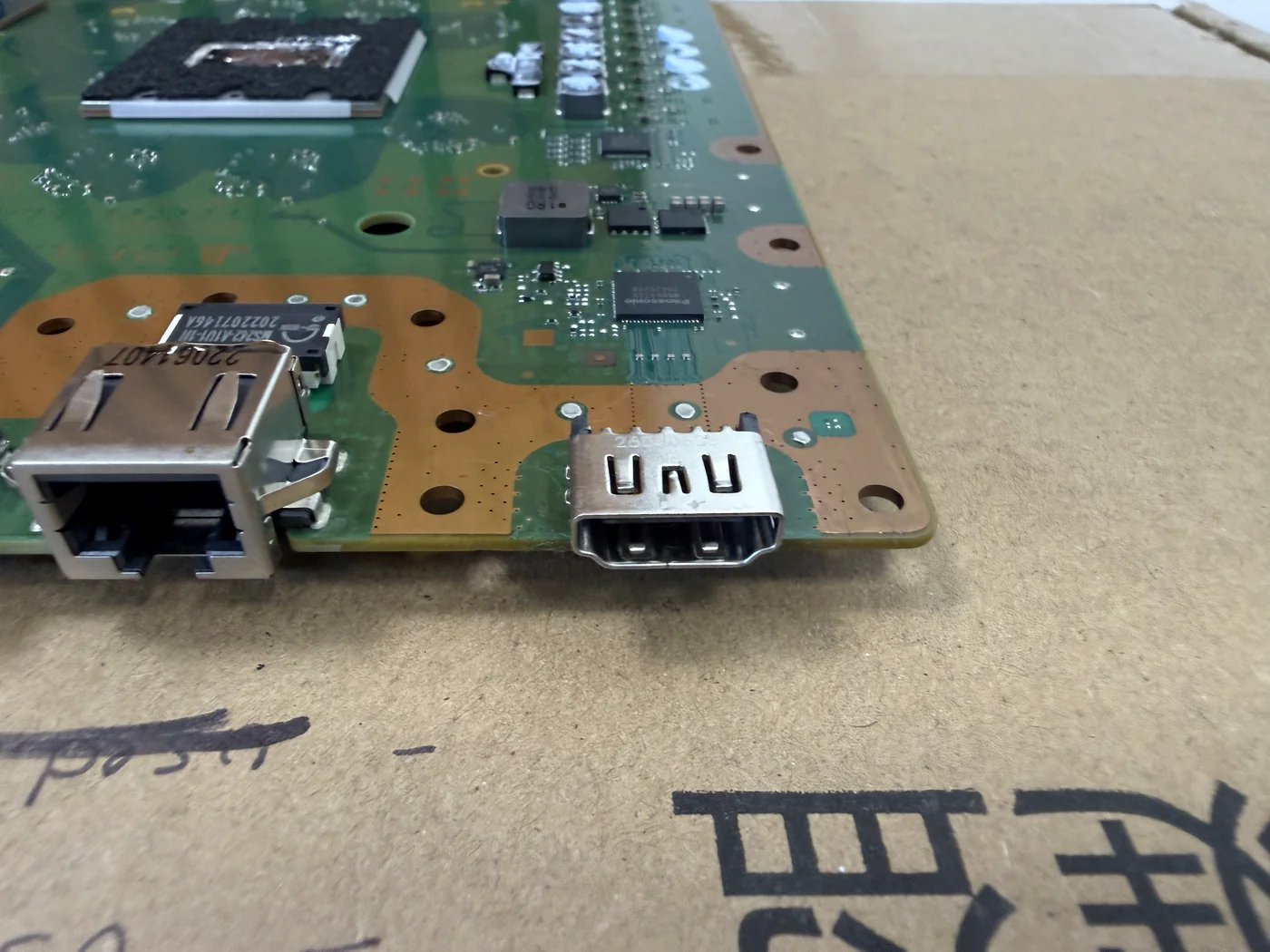

New HDMI port on
The new port is aligned pin by pin and soldered, shield legs and all. Square and solid on the board again.
Then, the cleaning

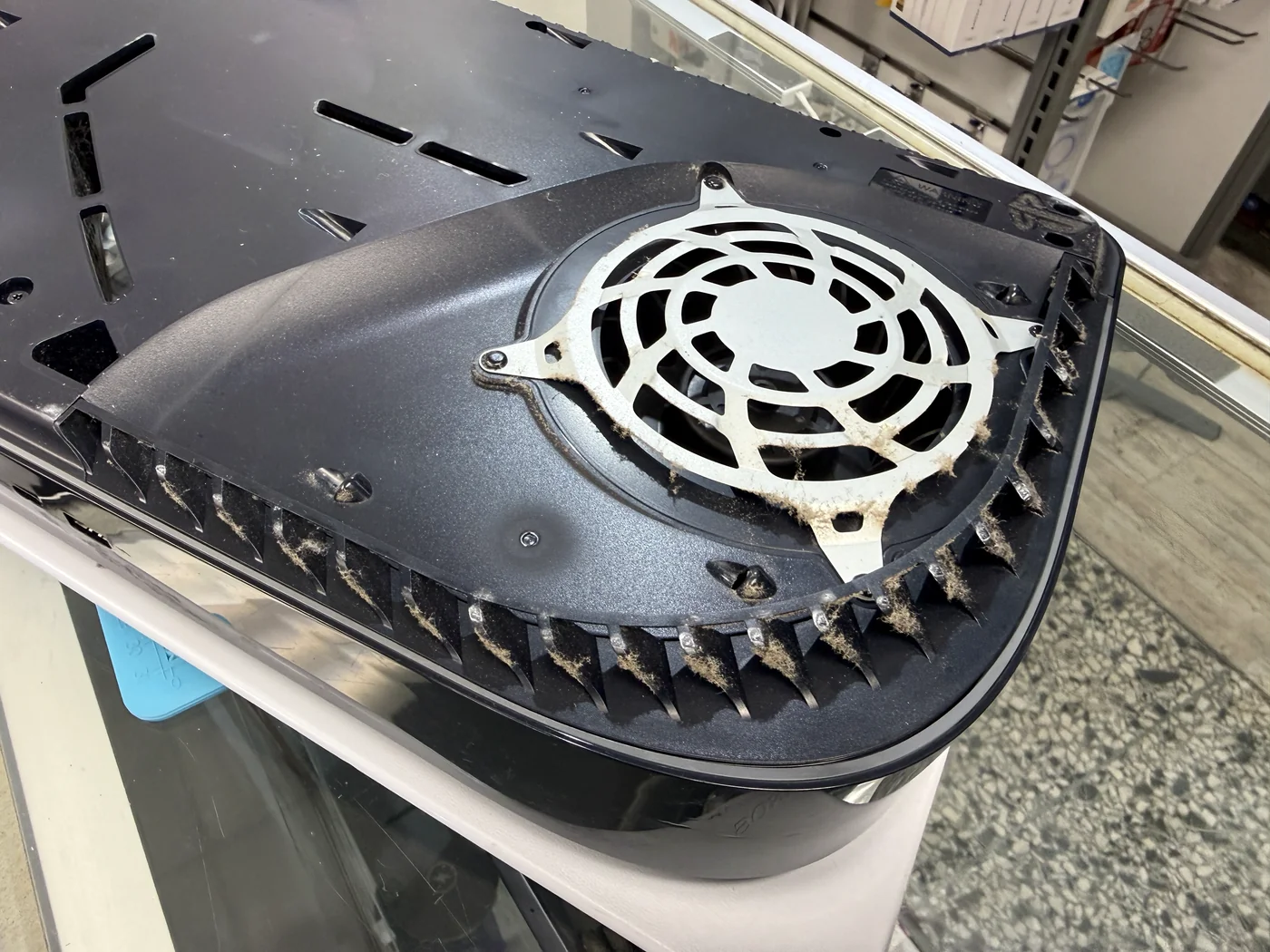

The customer added a cleaning at check-in. It wasn’t badly clogged, but lint had collected around the fan grille and along the vent fins.

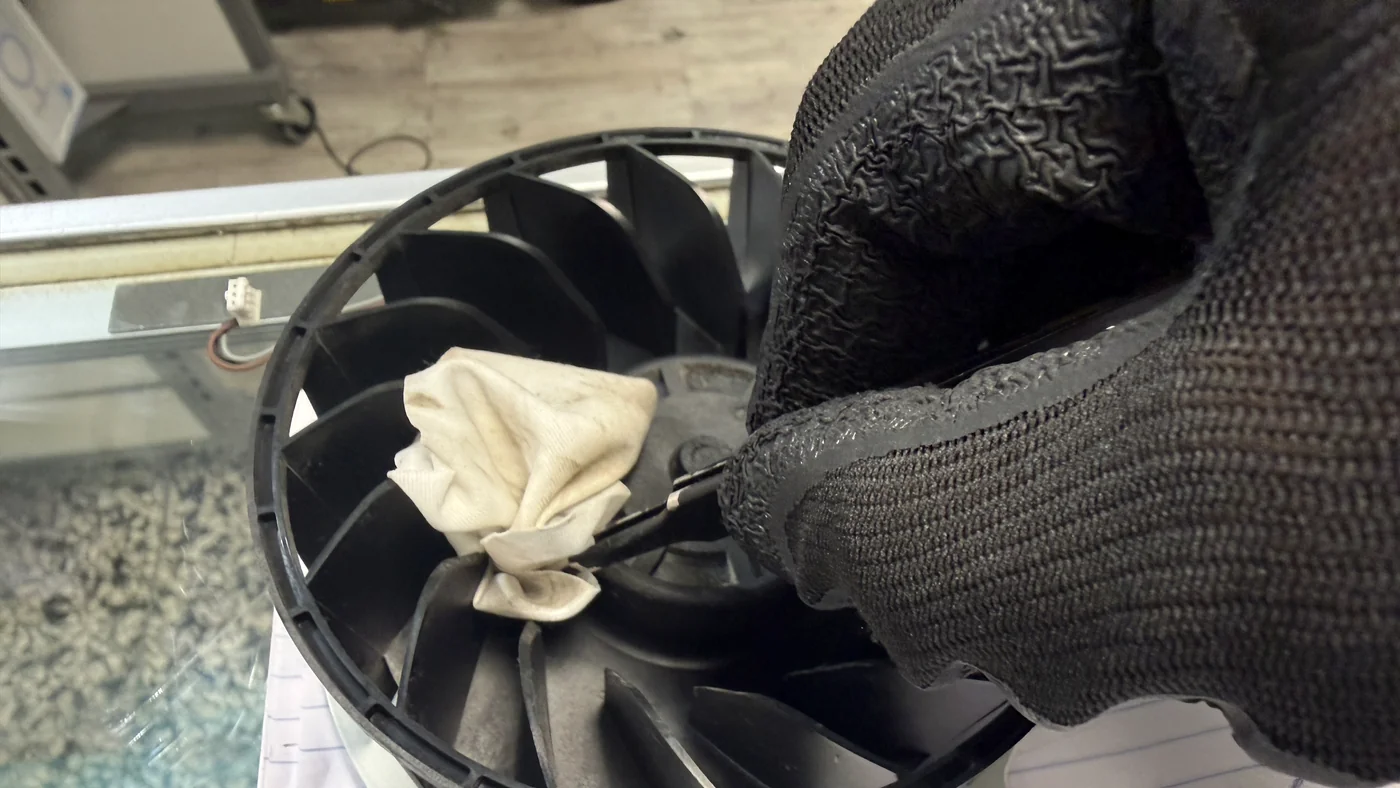

Fan out, blade by blade
The fan comes out and each blade is wiped down by hand. Since this one was fairly clean, the cleaning went faster than expected.

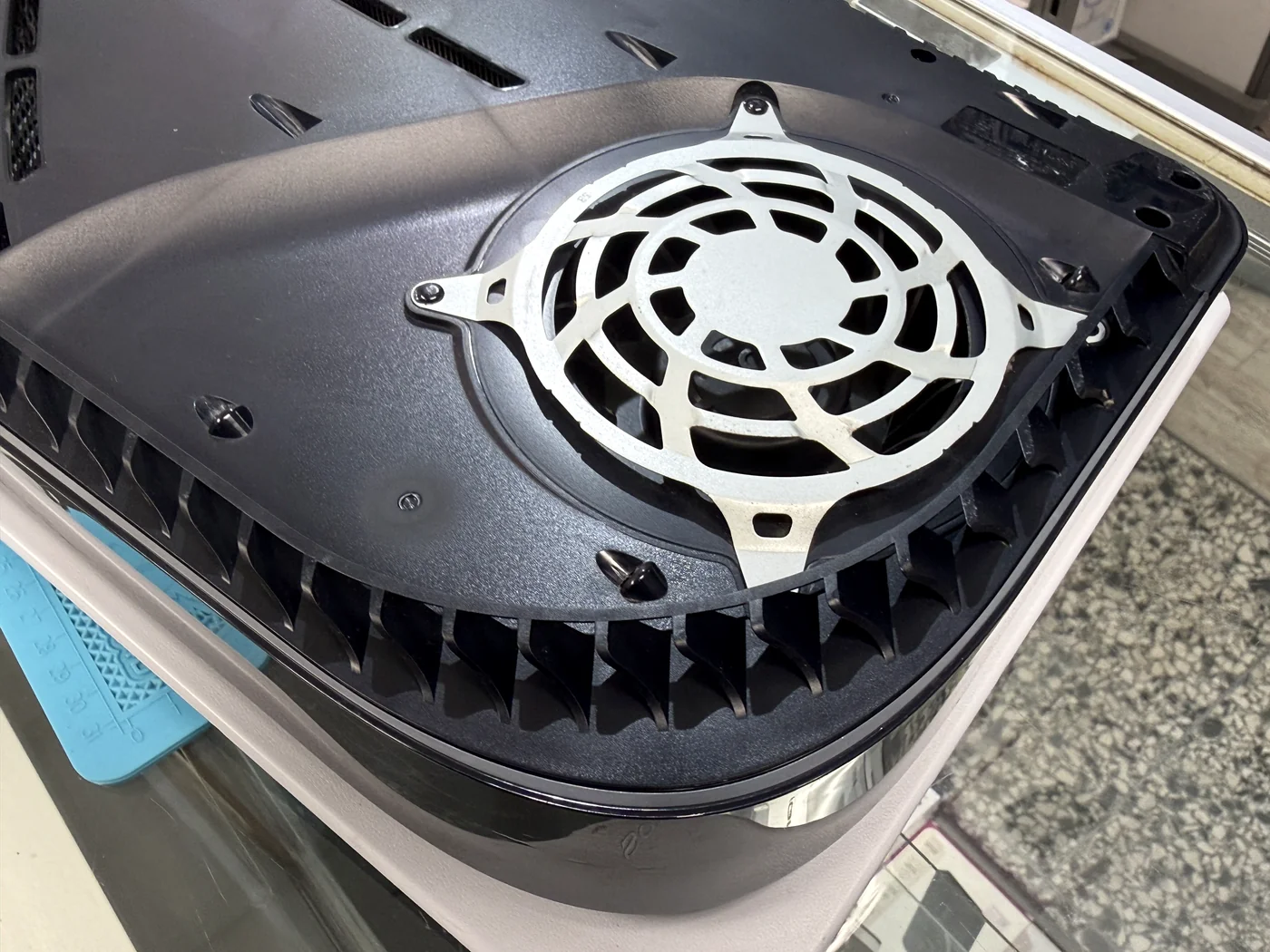

Clear airflow again
Grille clean, vents open. Then everything goes back together, slowly and carefully.
Picture back on the screen
New port, replaced capacitor, and a clean console.

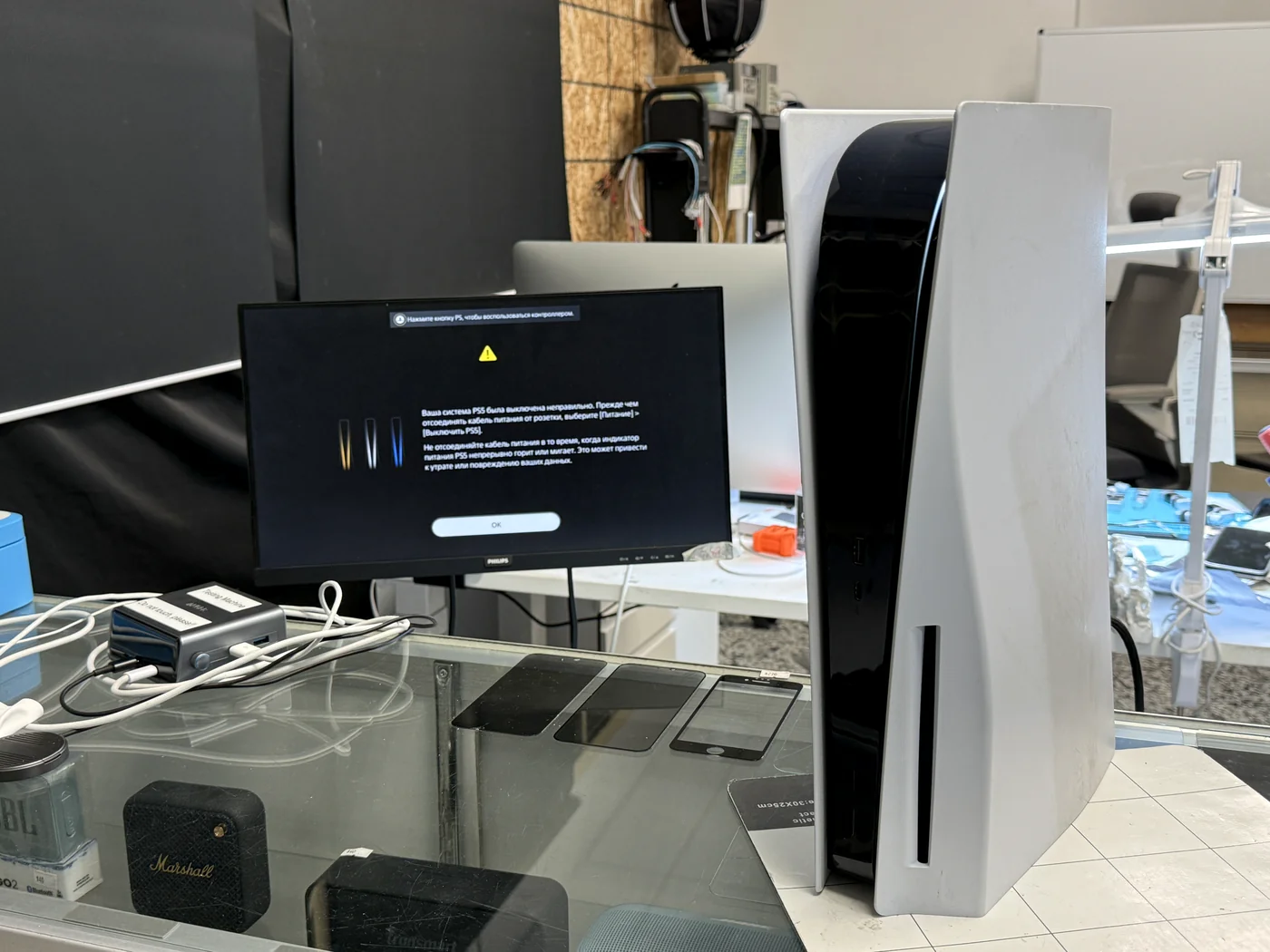

Booted straight to a picture
Connected to the test monitor, the PS5 came right up. The notice on screen is the usual message after a console loses power unexpectedly — normal on the first boot after a repair. The new HDMI port holds a steady signal, and the console is clean inside.
But the more I thought about it, the more it reminded me of something. A repair is a strange thing. Because of one broken device, two people who never knew each other end up sharing a piece of their day. He leaves his PS5 with me, and I give my evening to that PS5. For a little while, we’re connected by the same object, spending each other’s time.
That’s why time matters so much. When you’re in a hurry, the other person’s time weighs just as much as yours. Arriving when you said you would, or a simple “thanks for waiting,” is often all it takes. I learned something too: when I can wait, I’ll gladly wait — and when I can’t, saying so clearly from the start is also a way of taking care of the customer.
Repair is about fixing machines, but in the end it’s about people. Even a short connection can become a good memory, as long as we look after each other’s time a little.
The two questions everyone asks
Straight answers, as always.
My PS5 HDMI port broke off completely. Can it still be fixed?
Usually, yes. The key is what happened to the board underneath. If the pads are intact, a new port can go straight on. If the pads tore or nearby parts were knocked off, those get repaired first, which takes longer. We check under magnification before quoting. Read about a different case in our PS5 Slim bent-pin HDMI repair.
Can I get an HDMI port repair the same day?
Plan on 2–3 hours of bench time, plus time for other customers. Morning drop-offs are often ready the same day; late-day drop-offs are usually ready the next business day. Call ahead and we’ll tell you honestly what’s possible.
