A Galaxy Z Flip 3 Inner Screen, Replaced With a Genuine Samsung PartWhy the folding display is the one place an aftermarket panel gives itself away — Downtown LA
This Z Flip 3 came in with its inner folding display damaged — the outer cover screen and the phone itself were fine, so the whole repair came down to one part and one decision: genuine Samsung, or aftermarket. We only fit genuine Samsung assemblies, and on a foldable that choice shows up faster than on any other phone. Here is the repair from open to close, what actually differs between the two grades of part, and what we offer when the repair does not make financial sense.

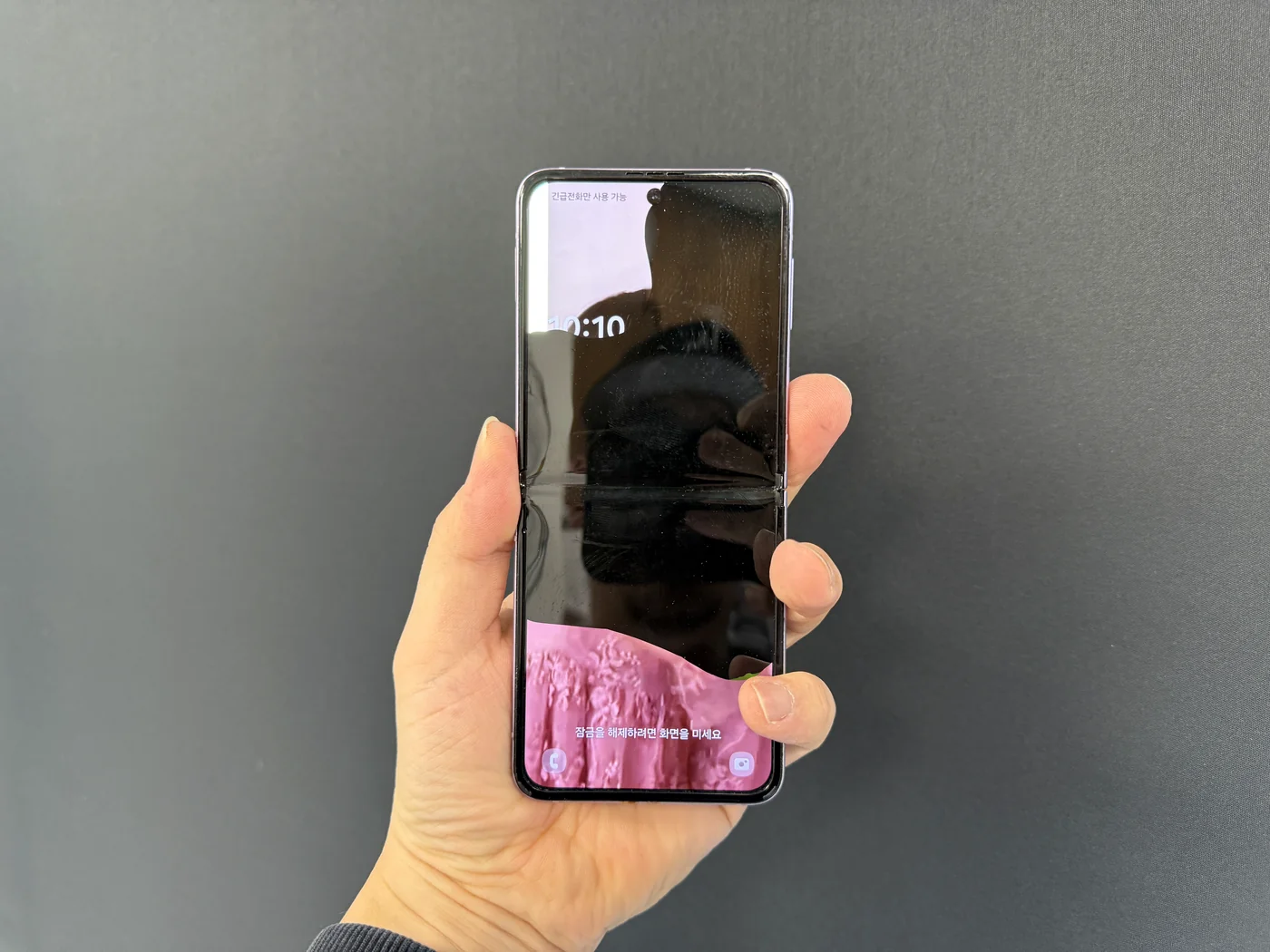

Folding display damaged; frame, board and battery all healthy
Samsung screen assembly, with every part carried over from the old one
Same colour, same touch response, same durability as the day it shipped
The job, on one card
Everything that matters about this repair, before the story.
| Model | Samsung Galaxy Z Flip 3 (SM-F711) |
|---|---|
| Symptom | Inner folding display damaged. The outer cover screen, the hinge and the rest of the phone were all in working order, so this was a single-assembly repair rather than anything deeper. |
| Part used | Genuine Samsung inner screen assembly. We do not fit aftermarket panels on foldables — on a folding display the difference is not cosmetic, it is structural. |
| Repair | Both back glass panels off → internals exposed and disconnected → damaged screen assembly out → every transferable component moved from the old assembly onto the new one → new genuine assembly fitted, sealed and tested. |
| Turnaround | Same day · in shop |
| Difficulty | Difficult4 / 5 |
| Tech’s note | A foldable is not a normal screen job. The panel has to survive being bent tens of thousands of times, so the part is not just a display — it is a mechanical component. That is why we fit genuine Samsung only on Z Flip and Z Fold. An aftermarket panel can look acceptable on day one and behave completely differently by month three. |
Genuine vs aftermarket — four places you will notice
Aftermarket panels exist for these phones. If you want the phone to feel exactly like it did before, they are not the answer.
Durability
A folding panel lives or dies by how it handles being creased over and over. This is where the gap between grades is widest and where it shows up latest — long after the repair, when the phone is already back in your pocket every day.
Colour
Put a genuine panel and an aftermarket one side by side and the white point and saturation do not match. On a Flip you see it immediately, because the cover screen next to it is still the original.
Touch feel
The way the panel registers a swipe, how it tracks your finger across the crease, how it handles the edges — aftermarket digitisers are the part people describe as "it works, but it doesn't feel like my phone anymore."
Response speed
Refresh behaviour and touch latency differ between grades. It is not something you spot in a five-minute test at the counter — it is something you feel every day afterwards.
Open, transfer, close
In the order it actually happened on the bench.

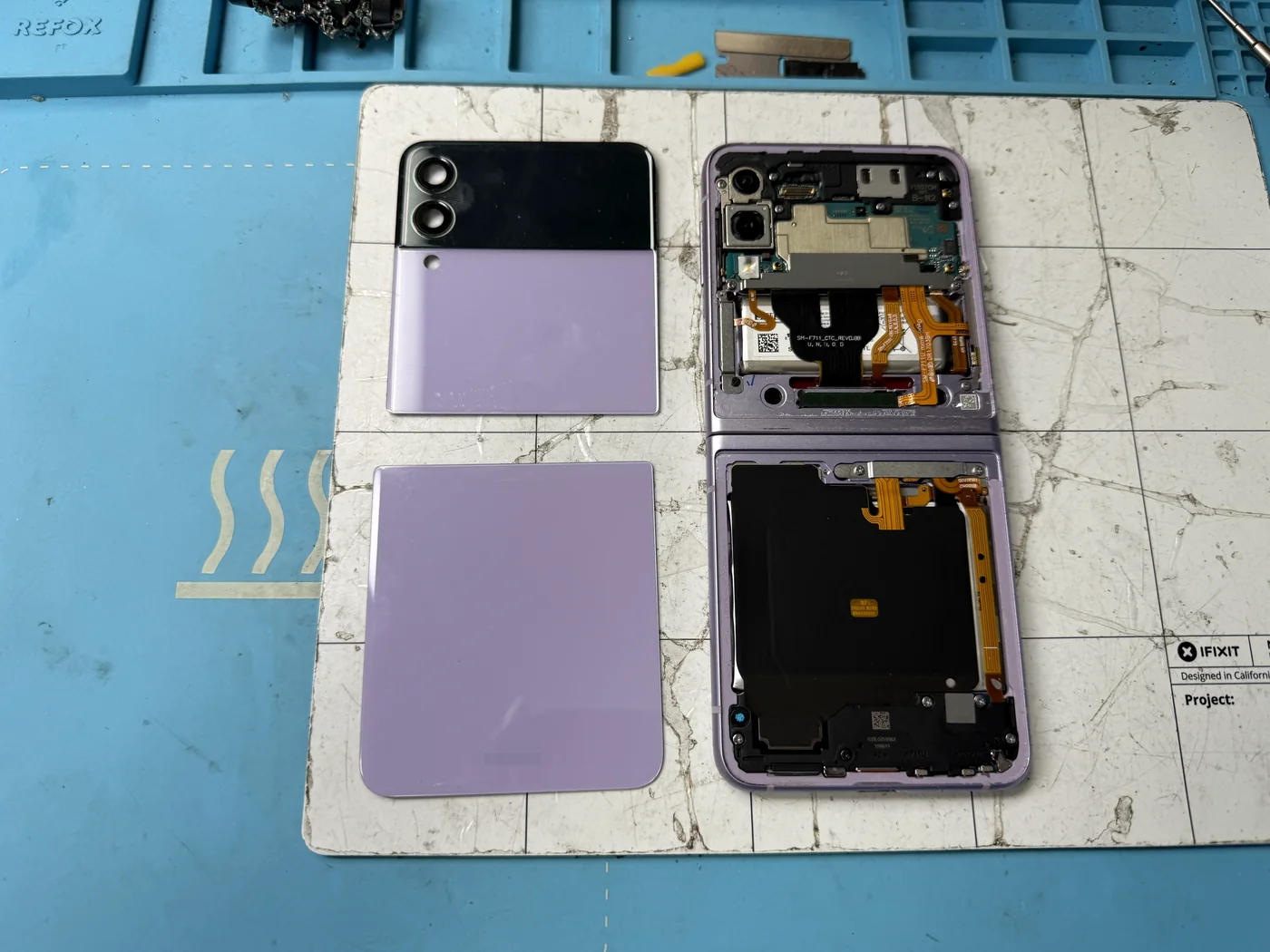

A Flip opens from the back, not the front
Unlike a normal phone, you do not lift the display to get to the display. Both back glass panels come off under controlled heat first, which exposes the battery, the board and the flex cables running across the hinge. Everything gets disconnected in order before the screen assembly is touched — on a foldable, a flex cable pulled in the wrong sequence is an expensive mistake.

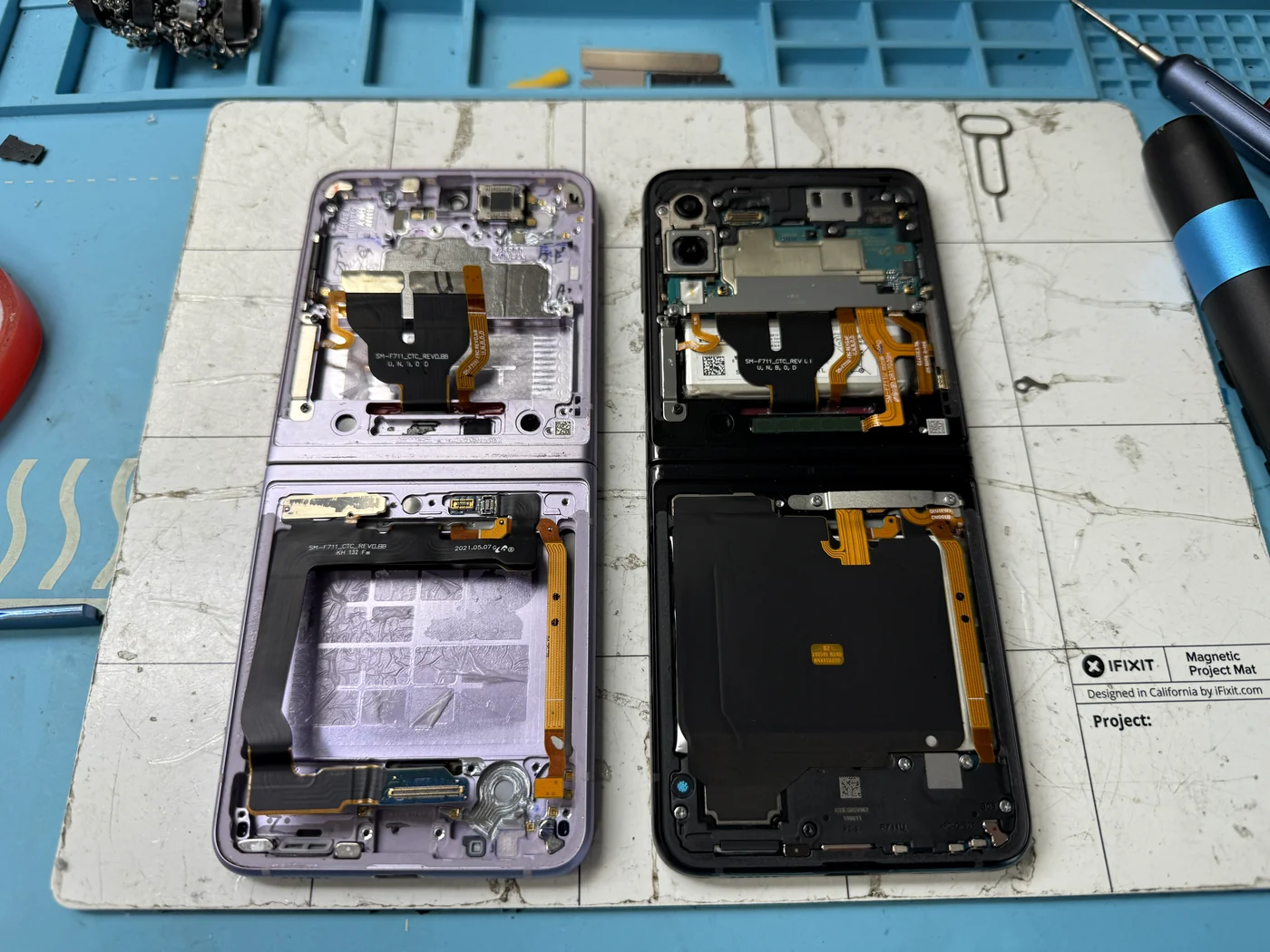

Everything transferable moves across, one piece at a time
A screen assembly does not arrive as a complete phone half. Brackets, shields, small flex parts and hardware all have to come off the damaged assembly and go onto the new one, in the right places and the right order. This is the slow part of the job and the part that decides whether the phone closes flush afterwards — a bracket seated slightly proud will show up as a gap at the hinge.
Sealed, closed, tested
The new assembly goes in, the back panels are re-adhered, and the phone gets tested as a folding device rather than as a screen: display and touch across the full panel including the crease, the fold closing flush, the cover screen, the cameras and the buttons. Then it folds and unfolds, repeatedly, before it goes back to its owner.

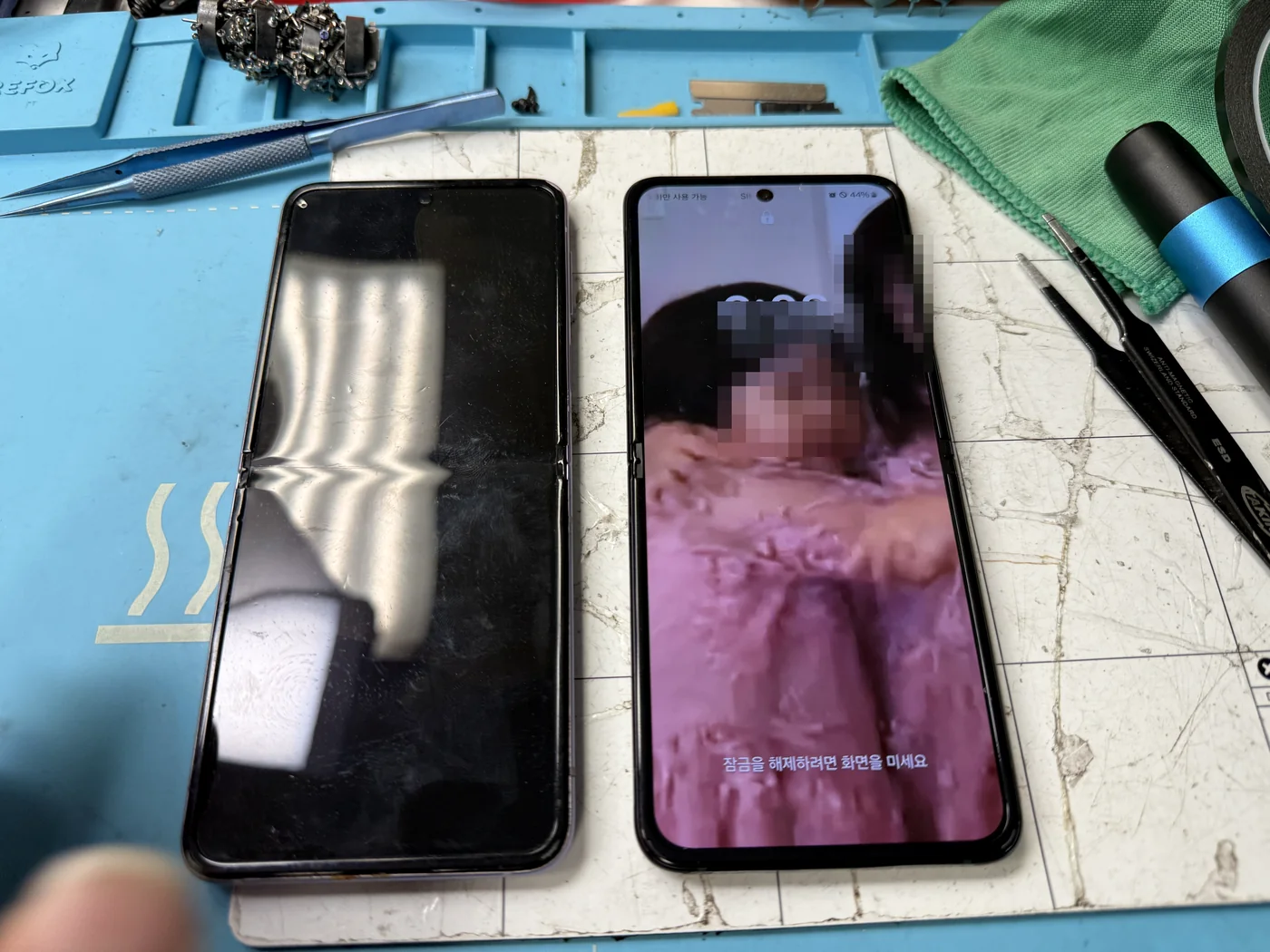

The same phone, not a repaired-looking one
Reassembled and tested, right before it left the bench.
Colour, touch and fold all back to stock
The inner display matches the cover screen again, touch tracks correctly across the crease, and the phone folds shut flush with no gap at the hinge. Nothing on the phone was erased — a screen replacement never touches storage, so photos, apps and accounts stayed exactly where they were.
That is the point of using the genuine assembly. The goal of this repair is not "the screen works now." It is that in six months the owner should not be able to tell the phone was ever opened.
When the repair costs more than the phone is worth to you
Foldable screens are expensive parts. Sometimes the honest answer is not to repair at all.
Data transfer only — $120, 2–3 hours
If the quote is more than you want to put into the phone, we will move your data to a new one instead. Bring the new phone with you: the transfer takes two to three hours and costs $120, and you leave with everything on the device you are actually going to keep using.
We would rather tell you the repair is not worth it and move your data than take the job. If your Flip is damaged badly enough that you were already thinking about replacing it, ask about this before you decide.
Galaxy Z Flip screen replacement — common questions
What Flip and Fold owners actually ask us.
Do you use genuine Samsung parts?
Only genuine Samsung. Aftermarket foldable panels exist and they are cheaper, but they differ in durability, colour, touch feel and response speed — and on a folding screen those differences get worse with use rather than better. If you want the phone to feel like it did before, this is the part that does it.
Which Z Flip models do you repair?
Every Z Flip generation, and every Samsung phone besides. Screen replacement is our core work — Flip, Fold, S series, A series and the rest. If it is a Samsung with a broken display, it is a job we do in-house.
Only my inner screen is broken. Do I have to replace both?
No. The inner folding display and the outer cover screen are separate parts and are quoted separately. On this repair only the inner assembly was replaced; the cover screen was original and stayed original.
Will I lose my data during a screen replacement?
No. Replacing a display does not touch storage — photos, apps, messages and accounts all stay as they are. You do not need to back up before coming in, though backing up is never a bad habit.
The repair costs more than I want to spend. What now?
We will move your data to a new phone for $120 instead. It takes two to three hours, and you need to bring the new phone with you so we can transfer directly onto it. No repair, no pressure — just your data where you need it.
Will the phone still close properly after the repair?
It should close exactly as it did before. A gap at the hinge after a foldable repair means something inside was not seated correctly, which is why we test the fold repeatedly before handing the phone back rather than just checking that the display lights up.
