A Kyocera DuraXA E4831 landed on the bench this week with a broken charging port. Not a loose connection, not slow charging. The cable would not physically go in anymore.
What made this one different is that the customer had already worked out what was wrong and ordered the replacement port themselves. They walked in with the part in a bag and asked if we’d fit it. Short answer: yes. Here’s the whole job.
| Model | Kyocera DuraXA E4831 · AT&T rugged flip phone |
|---|---|
| Problem | Charging port physically broken. The cable would not go in at all. |
| Repair time | About 50 minutes |
| Labor | $60 to fit the customer’s port |
| Warranty | Labor only. Part supplied by the customer. |
| Teardown | Difficult4 / 5 |
| Tech’s note | This phone is built for a job site, not for opening up. The water sealing is thorough and it goes together tight, which makes the teardown harder than you’d expect from a flip phone. Once you’ve done a few of these it’s manageable. This was our first one of this model, so it took longer than a phone we see every week. If you’re thinking of doing it yourself, know there’s a lot in here that breaks if you go at it the wrong way. |
An AT&T flip phone came in with a charging port broken badly enough that the cable would not seat. The customer had already tracked down a replacement port and brought it in with them, so we handled the teardown, the swap, and the testing.
“The charger used to need a wiggle. Now the cable won’t even go in.”
Customer, walk-in

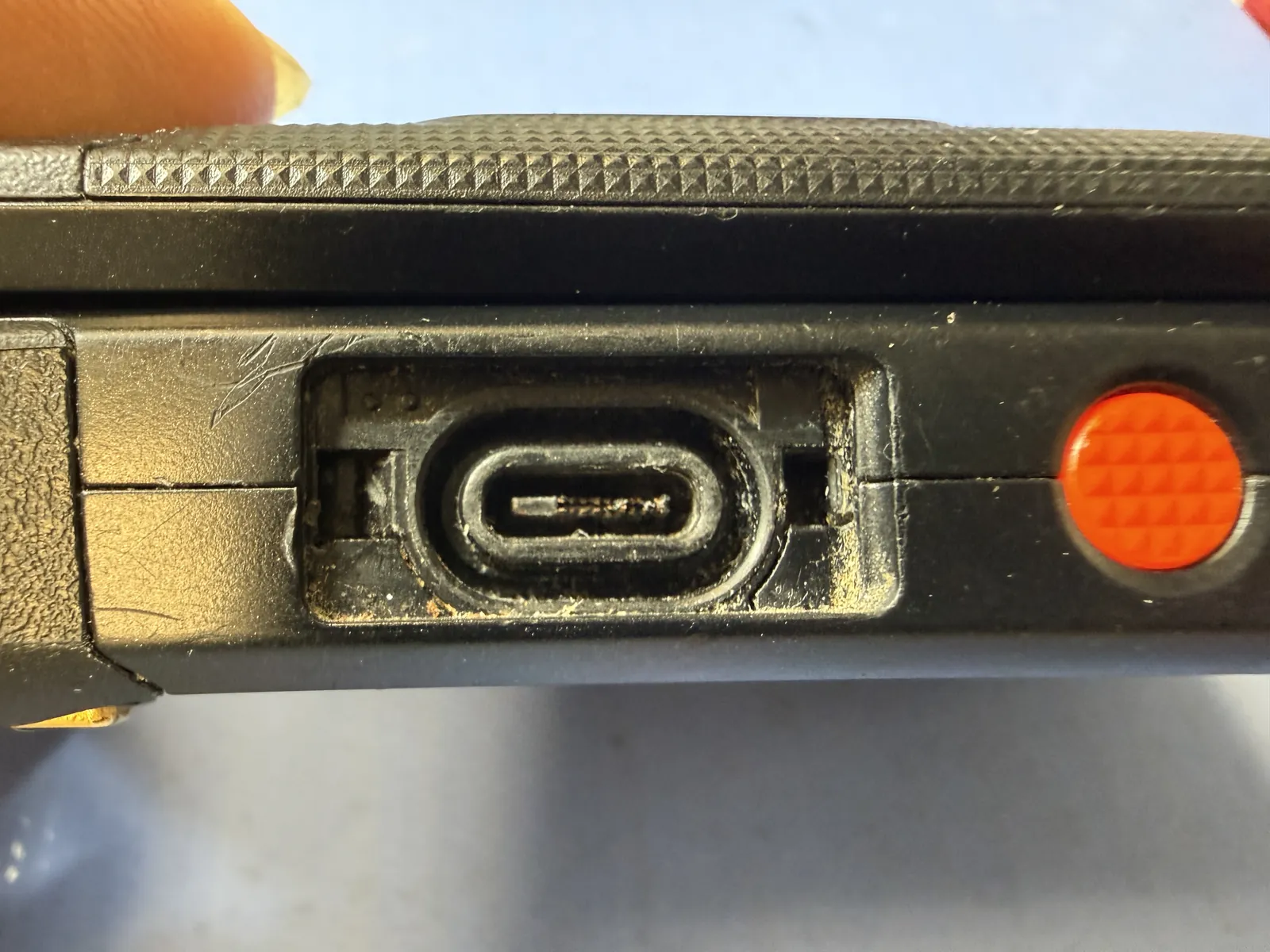

The port the way it came in. The opening is deformed and the tongue inside has broken loose.
This one didn’t take much diagnosing. You could see it from the counter. The opening was deformed and the small plastic tongue inside the port had broken loose, so the cable had nothing to seat against. It wouldn’t go in straight, and forcing it would only have torn the flex board out behind it. There was lint packed in behind the damage as well, which is normal for a phone that lives in a pocket or a tool belt. On plenty of phones a clean-out is the whole repair. Not once the tongue is gone. At that point the port has to be replaced. The good news on this model is that it sits on its own small flex board instead of being soldered to the mainboard, so a broken port doesn’t put the rest of the phone at risk.
So the port had to come out. On most phones that’s a twenty-minute job. On a phone built like this one it isn’t, and that’s worth knowing before you decide where to take one.

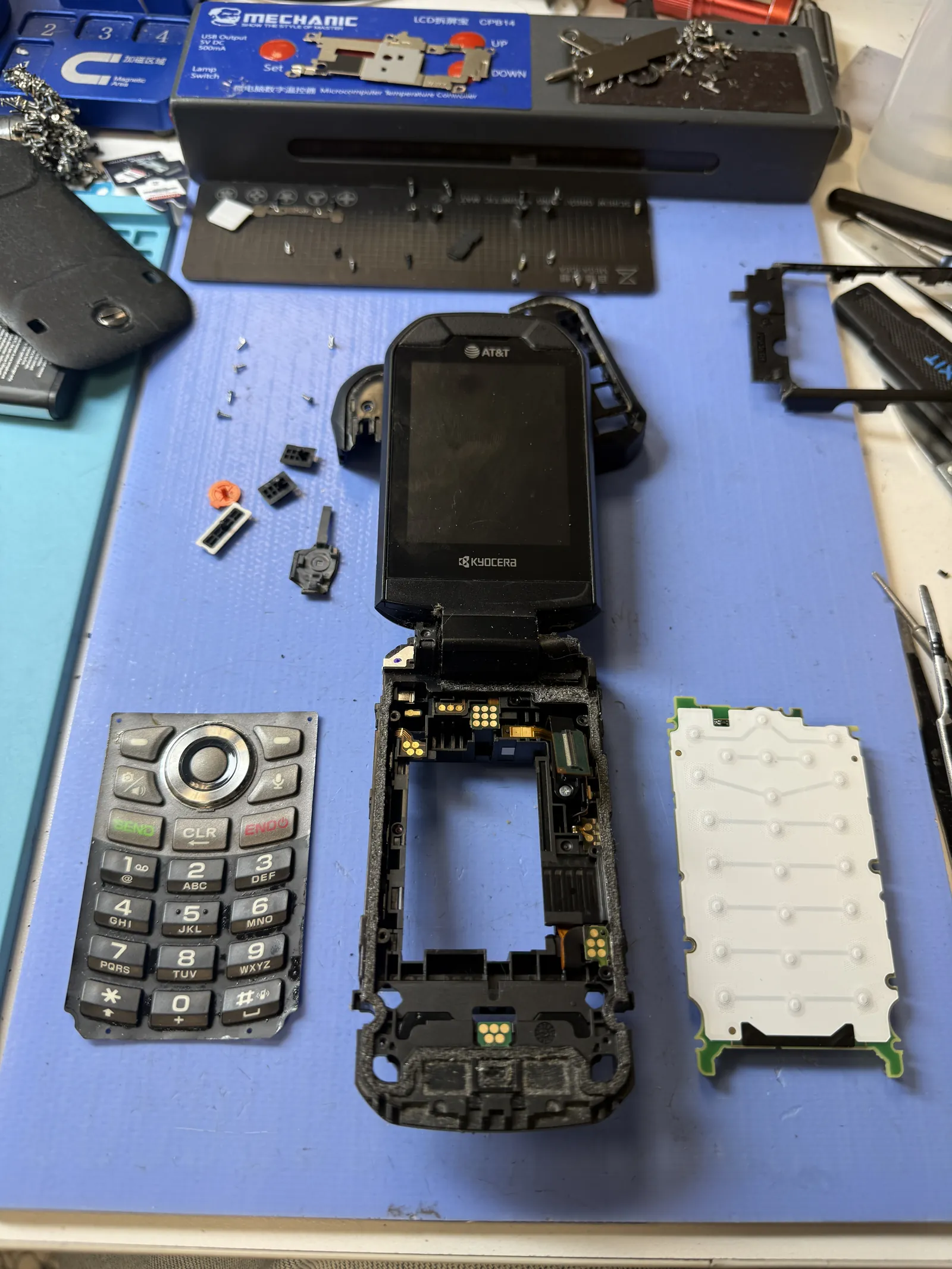

Took the phone all the way down
The port on a DuraXA isn’t reachable from the outside. Keypad, membrane, and inner frame all come off first. These models use more screws and more gaskets than an ordinary phone, so every piece gets laid out in the order it came off.

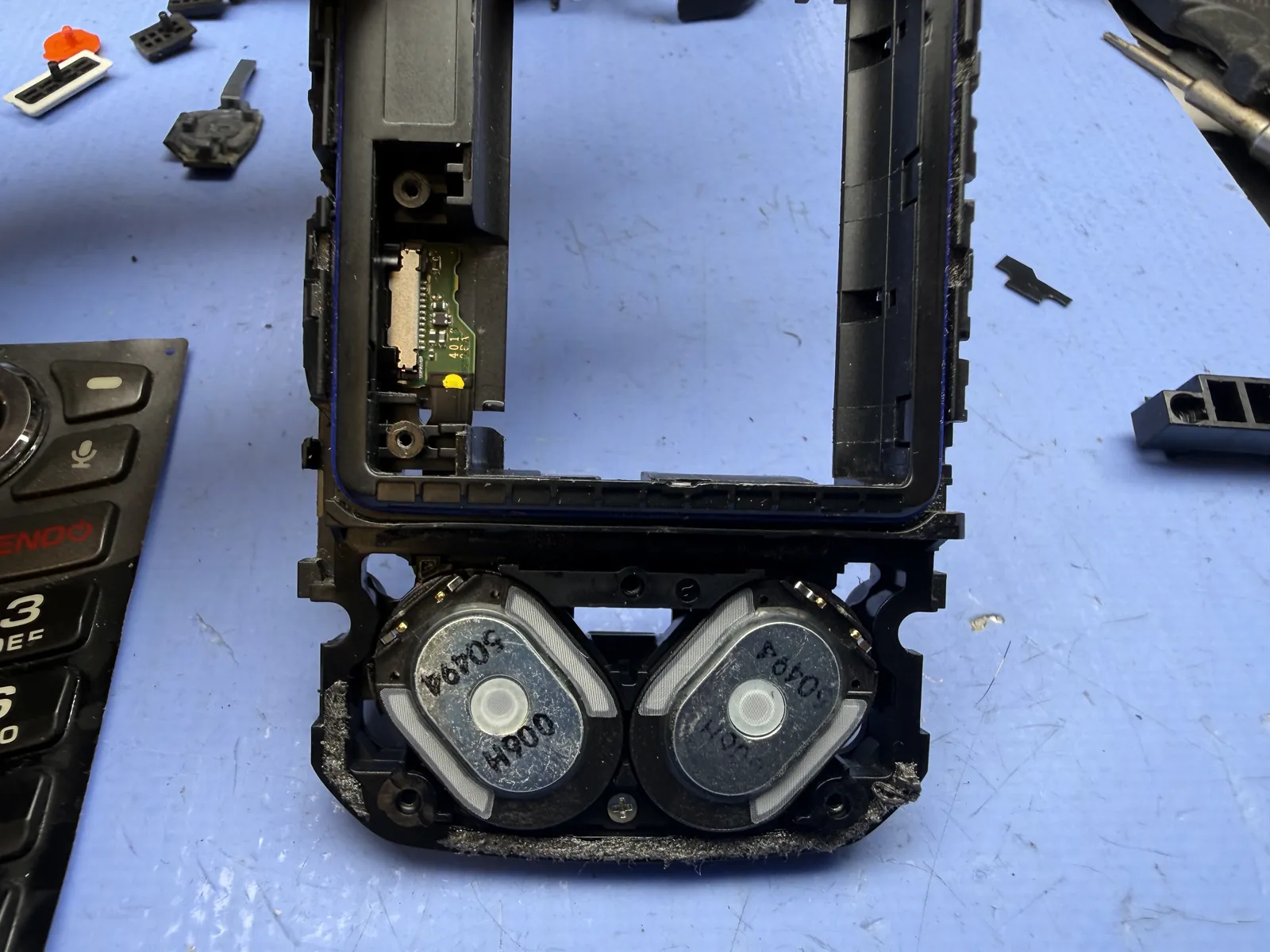

Got to the port board
With the frame open, the port board sits along the bottom edge next to the speakers. The rubber seal that gives this phone its water rating runs right along that edge, so it has to lift off clean and go back on undamaged.

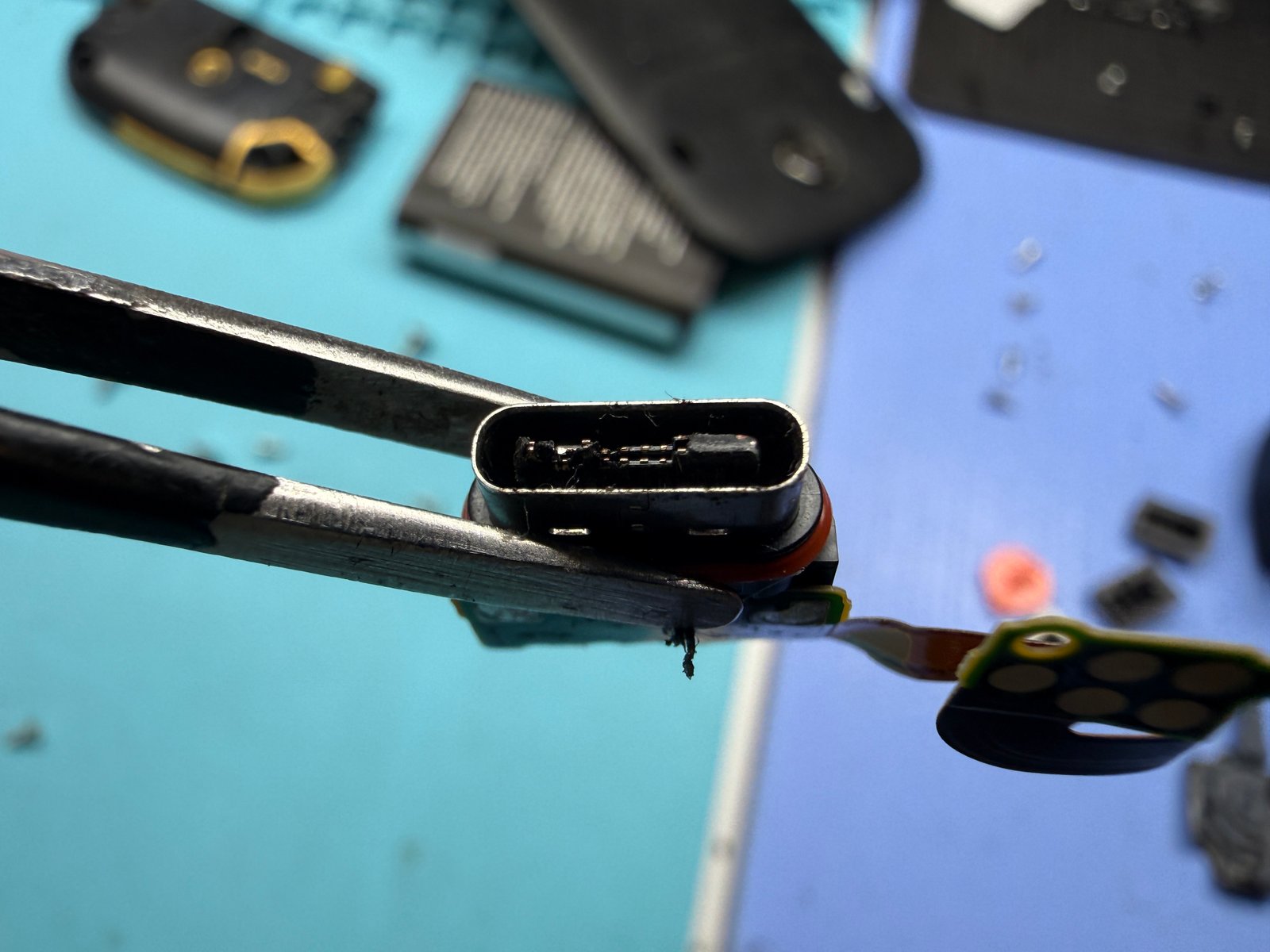

Old port out, customer’s part in
The old flex came out in one piece. The replacement went in, we seated the connector, then charged the phone on the bench and wiggled the cable around before closing anything up.

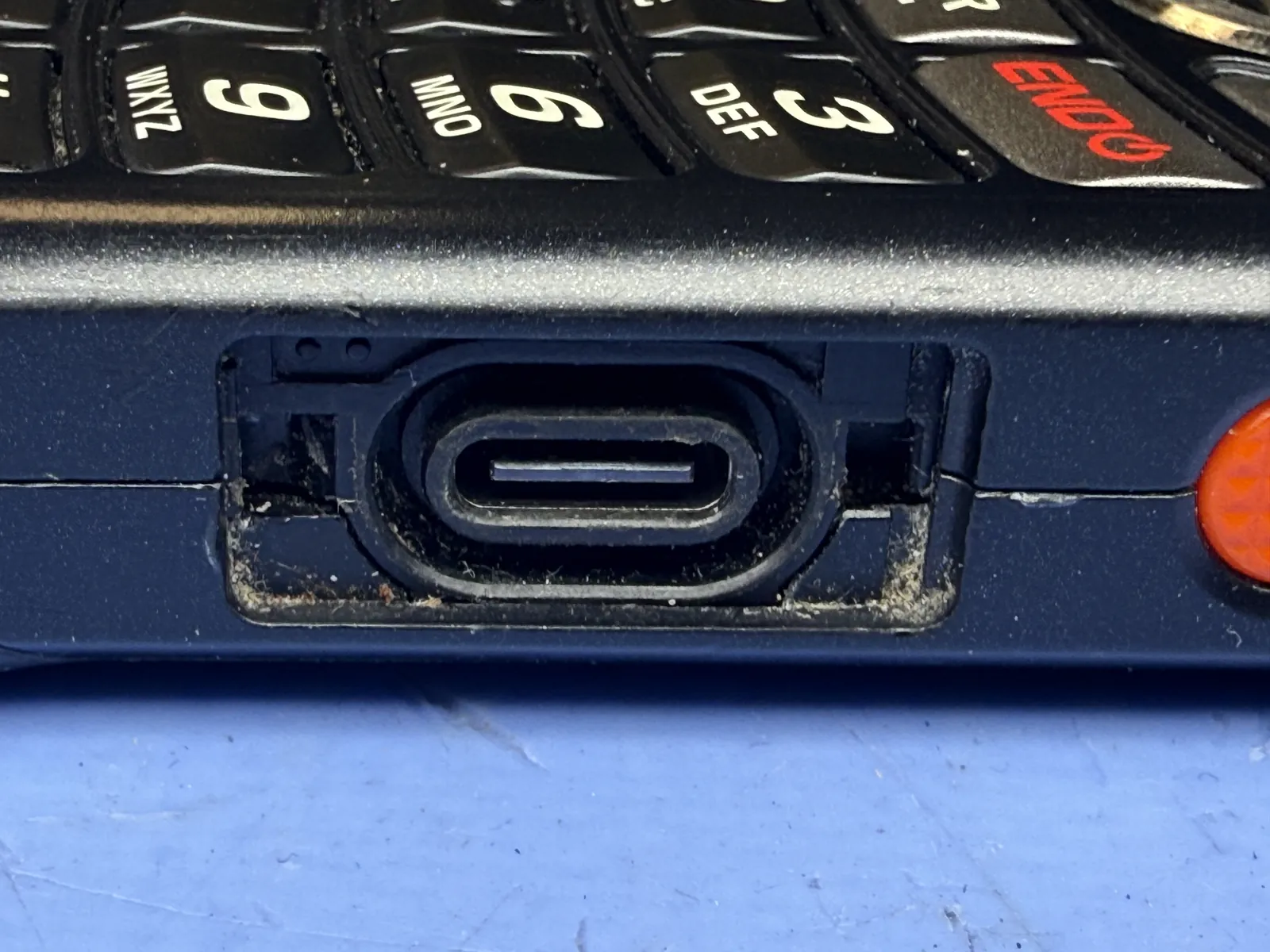

Same angle, before and after. The cable goes straight in and clicks.
The customer found and bought this part themselves, which is fine by us. Labor to fit it was $60. Being straight about what that means: we fit it and we tested it, but we don’t warranty a part we didn’t supply. If it fails early, our labor to swap it again is on us. The part is on you.
The original gaskets were still soft and seated properly, so they went back in. Worth saying plainly: once a phone like this has been opened, nobody can promise the factory water rating still holds. Treat it as water resistant, not waterproof.
If the charger on your DuraXA, DuraForce, or any other jobsite phone has started needing a wiggle, get it looked at before it breaks off completely. A port that’s only dirty can usually be cleaned out, and that costs you a lot less than this job did. A port that’s broken has to be replaced.
Bringing your own part is welcome. Plenty of people do it, and we’ll tell you honestly whether what you bought is the right one before we open anything. If you’d rather we source it, we can do that instead. Either way the diagnosis is free, so you find out what’s actually wrong before you commit to anything.
