Pet Hair, Roaches, and a Worn-Out HDMI PortXbox Series X Cleaning & HDMI Port Repair — Downtown LA

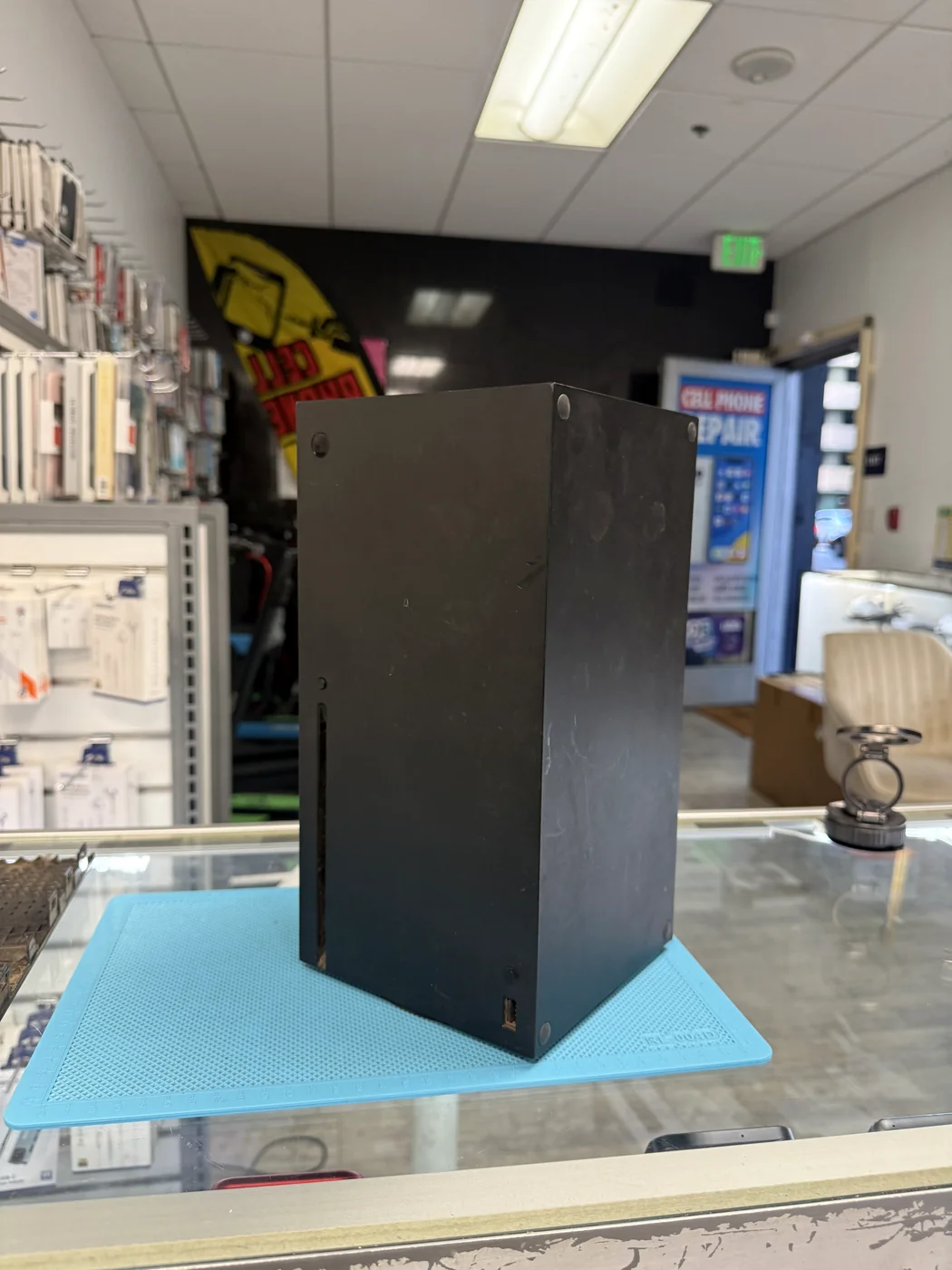

A young woman brought in her Xbox Series X — the kind of console you can tell someone really loves. It needed a new HDMI port. Then we opened it, and even we were surprised: pet hair packed into the heatsink, a sticky film over everything, and roaches — one still sitting on the board shield. Consoles like this come in more often than you’d think, and they’re some of the fussiest jobs on the bench. Here’s how this one went from grimy to back on screen.
Sticky film and droppings throughout the interior
$130 port — deep cleaning +$30 on request
Home screen up, heatsink breathing again
The job, on one card
What this repair included, what it costs, and why a dirty console takes longer.
| Model | Microsoft Xbox Series X |
|---|---|
| Service | HDMI OUT port replaced at board level. Visible dust, pet hair, and roach debris cleared from the heatsink, board, and shell before any soldering began |
| This visit | A well-loved console with a lot living inside it — pet hair matted into the heatsink fins, a sticky film over the board, a dead roach and droppings on the shield. Everything visible came out first; that part is always on us. |
| Price | HDMI port $130 · basic dust-out included · deep cleaning +$30 on request |
| Bench time | Plan on 3 hours — a dirty interior adds its own time |
| Teardown | Messy & careful4 / 5 |
| Tech’s note | Consoles like this are more common than people think, and they’re fussy work. The dust always comes out first — you can’t solder cleanly through grime. And when I spot a roach, I know there are droppings somewhere too. That matters: droppings can conduct, and enough of them in the wrong spot can short the board. Power failures are one of the most common problems I see on roach-heavy consoles. Every so often a console comes in that has turned into a full roach house — you lift the shell and they come pouring out. Those are the days I love this job a little less. The visible dust and debris I clear for free, every time. If a console needs the full deep clean, or you just want one, it’s $30 more — and it comes back feeling close to new. |
What lives inside a dirty console
From the outside this Xbox looked fine. Inside, three problems were building — and none of them are just cosmetic.
Hair and dust choke the heatsink
The Series X pushes all its heat through one tall stack of fins. Pet hair and dust mat across it, airflow drops, and the fan spins harder and louder to keep up — while the console holds heat it was never meant to.
Roach droppings can short the board
Where there’s a roach, there are droppings. They can conduct, and when they collect around components they cause shorts — power failures are a common result. It isn’t about how well you look after a console: a warm, dark box simply attracts them.
DIY cleaning often breaks connectors
Videos make the teardown look quick, but fan and ribbon connectors are small and crack easily when pulled the wrong way. We regularly fix consoles where a home cleaning broke a connector — and that repair costs more than a pro cleaning would have.
From grime to signal, step by step
Cleaning comes first on a console like this — you can’t do careful board work through dust and sticky residue.

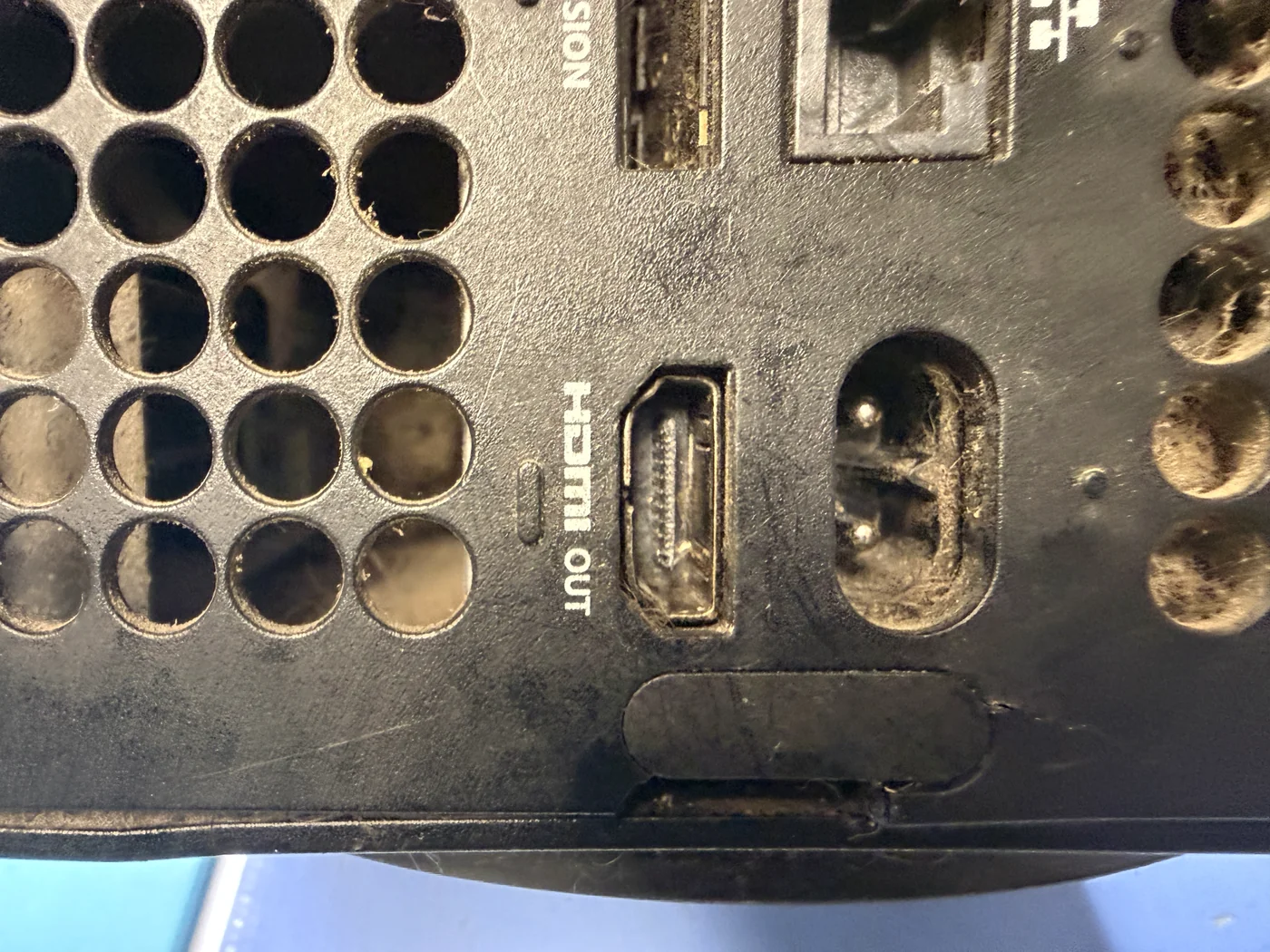

The back panel gives the first hint
Dust and hair ring the HDMI OUT port, the power inlet, and the vent holes. When it gathers on the outside like this, the inside is always worse.

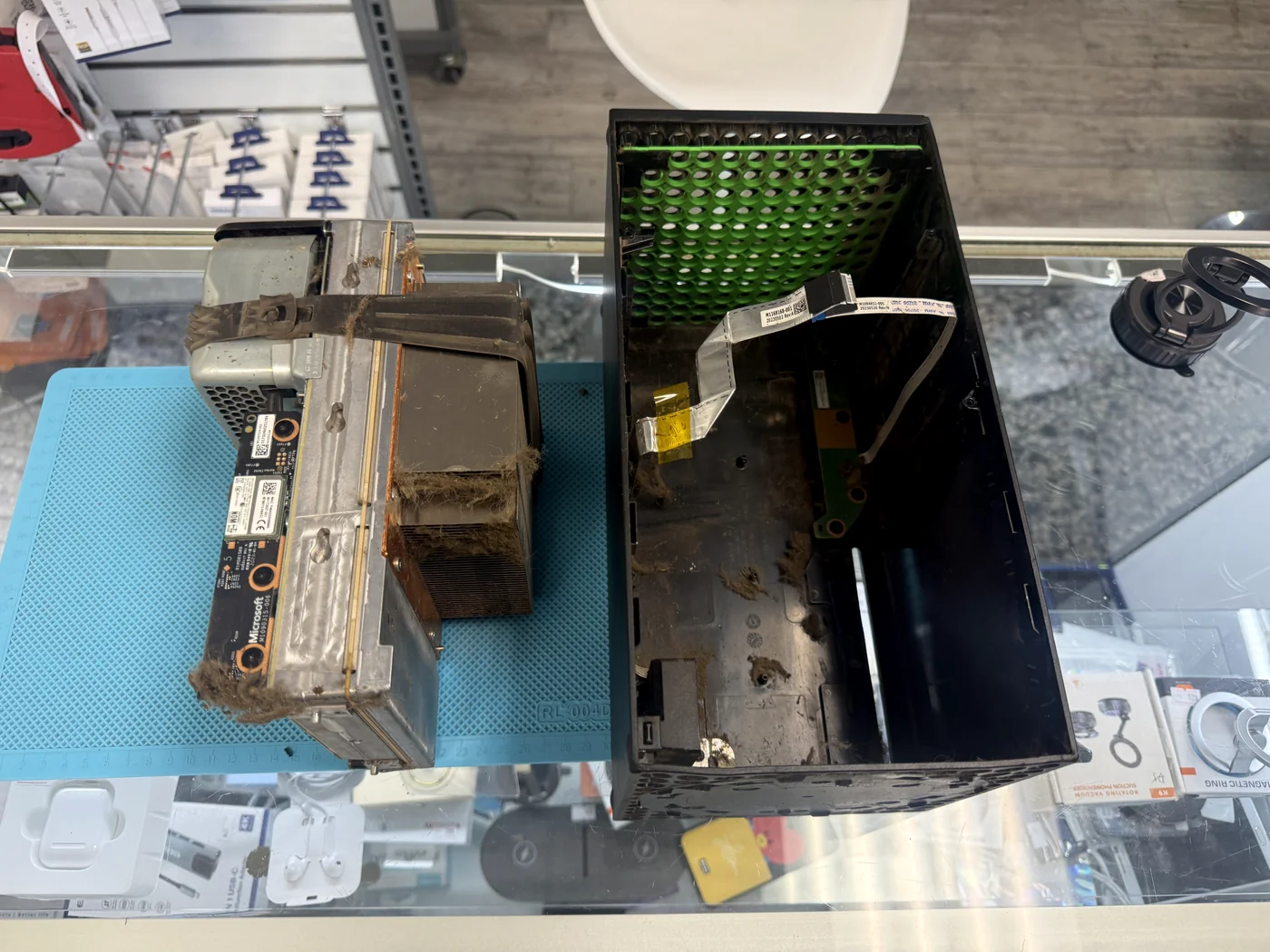

Out of the shell, the real picture
With the chassis lifted out, it all shows: pet hair wrapped around the heatsink, clumps in the bottom of the shell, and a sticky film on every surface it touched. This is where the cleaning starts — before a single solder joint gets touched.

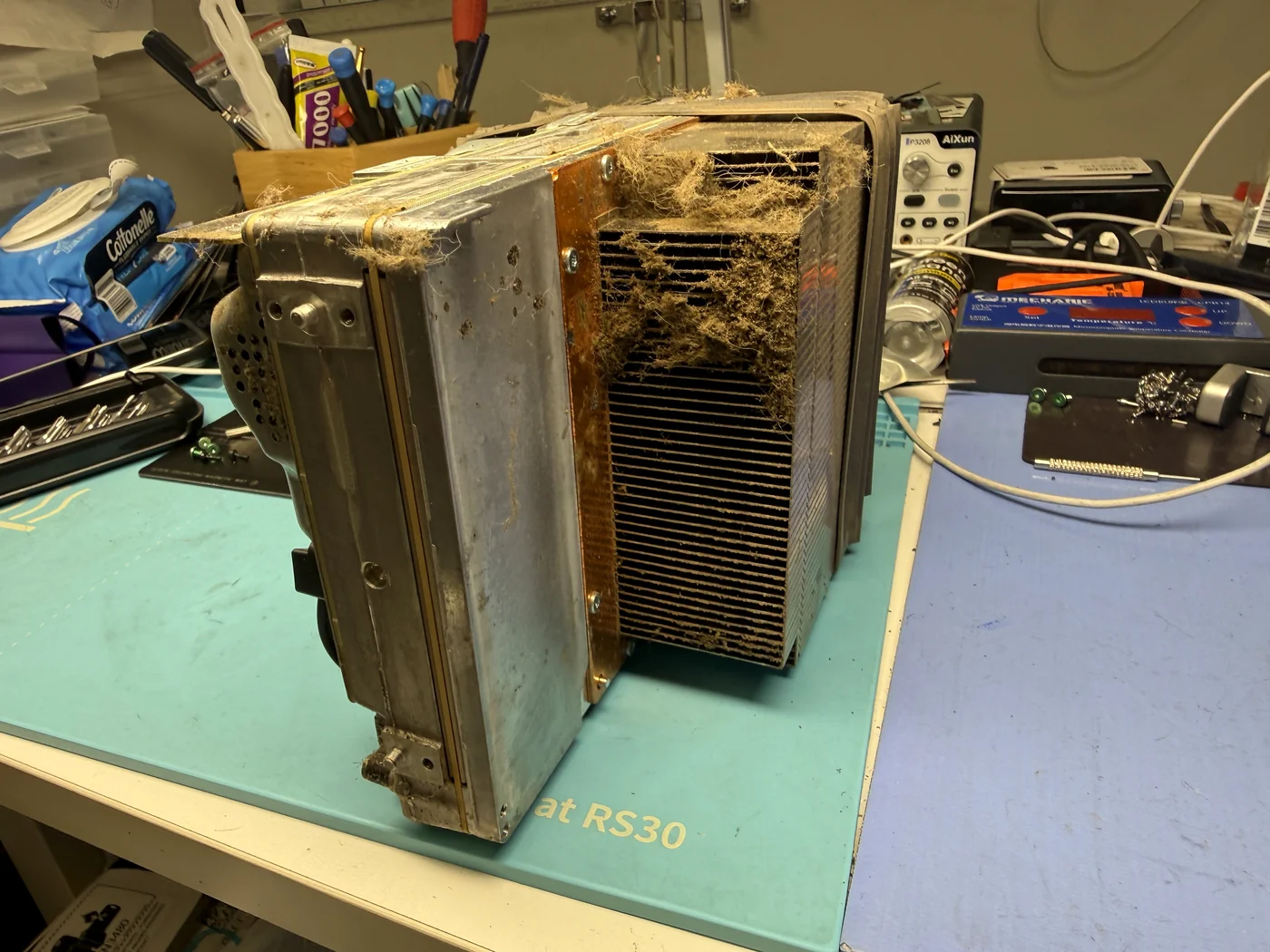

The heatsink, wearing a coat
The fin stack is where the Series X dumps its heat — and here it’s blanketed in dog hair and dust. Air can’t pass through fins like this. It all comes out by hand before the work moves on.

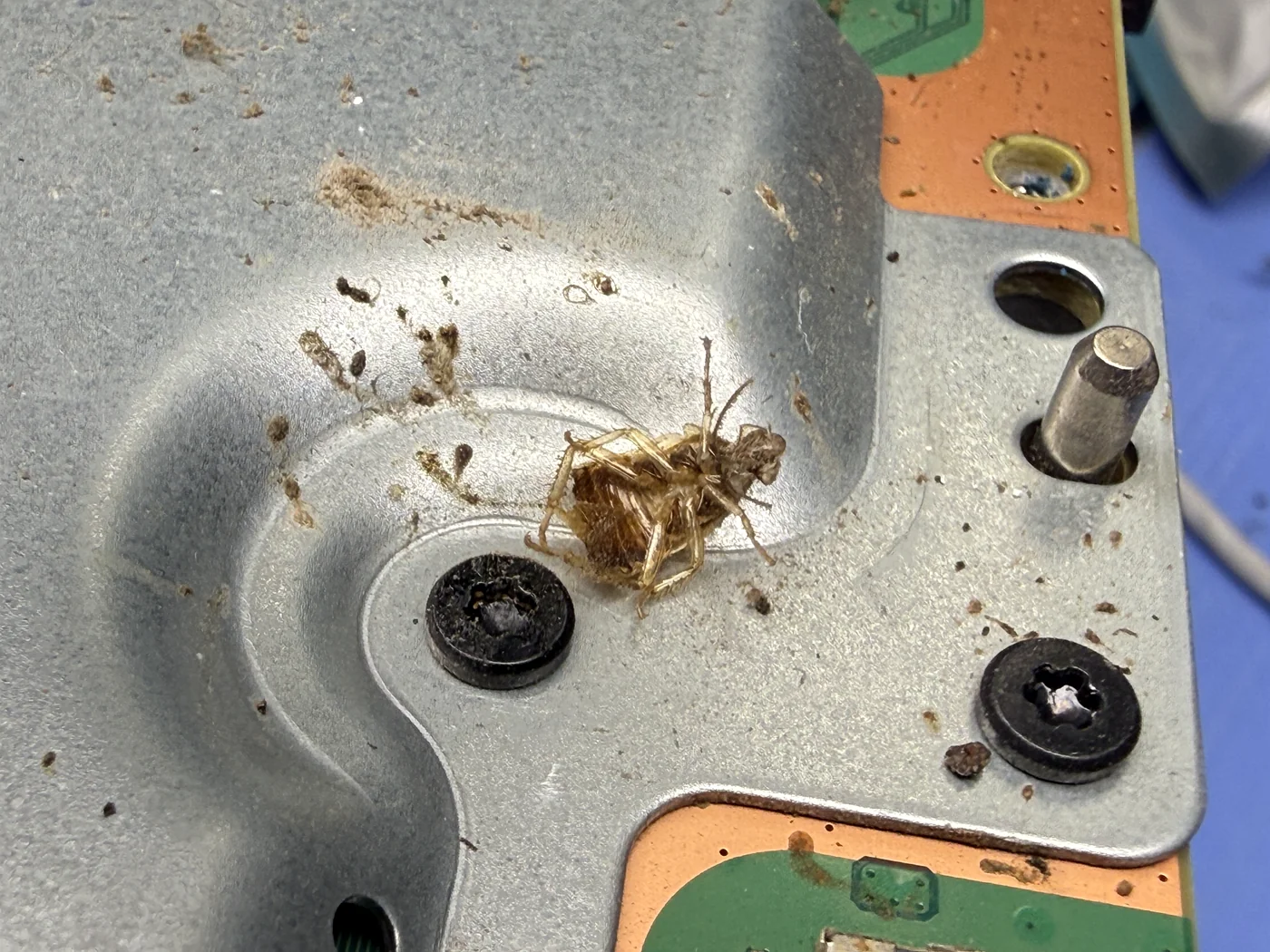

A guest nobody invited
On the metal shield: a dead roach, with droppings scattered around it. One roach means droppings elsewhere too, so the board gets a close look — droppings near components are how shorts begin.

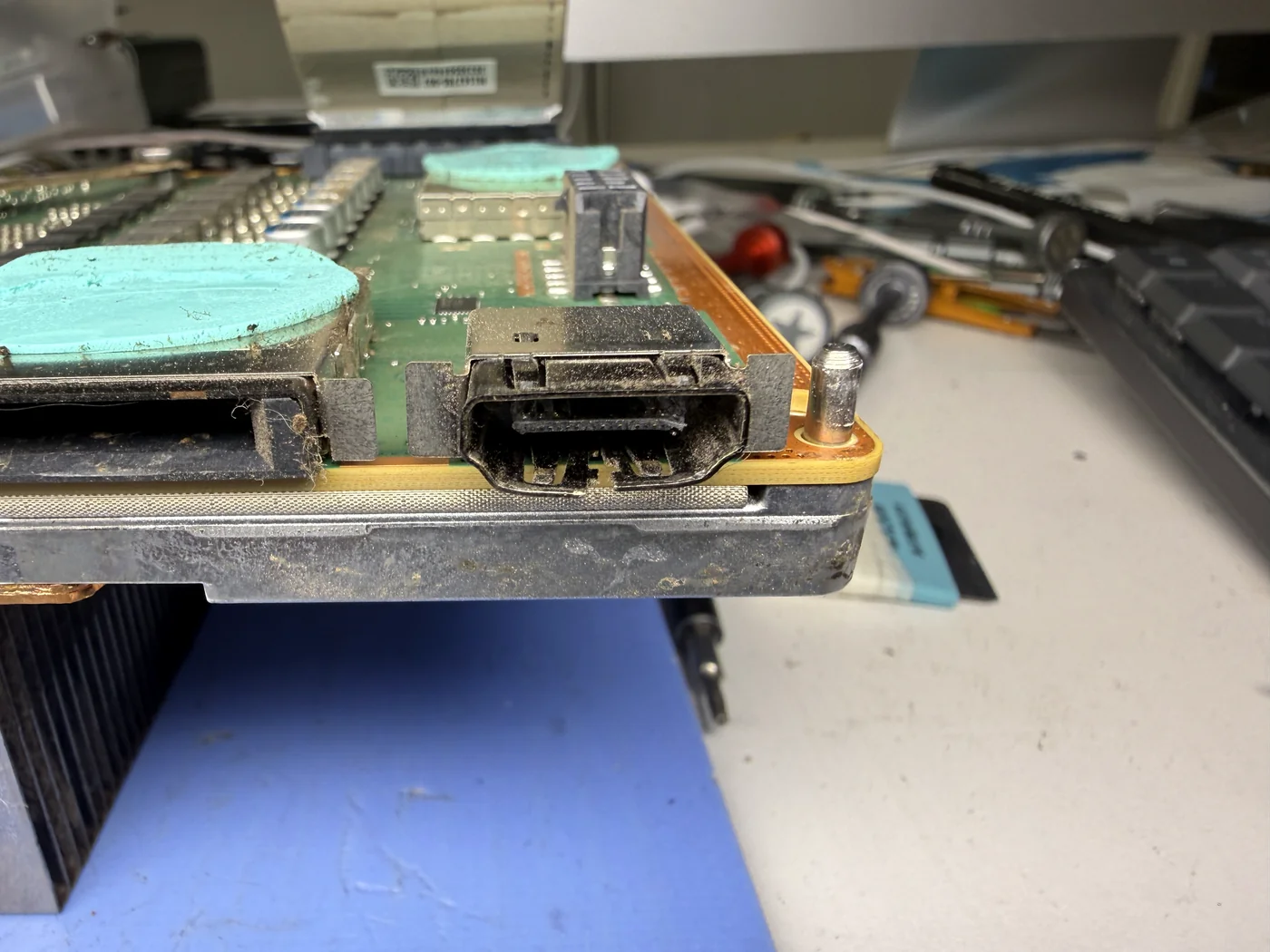

Now, the port itself
With the board cleaned up, the original HDMI port gets its turn. Dirt has worked deep into the opening, and the port is coming off either way — a new port is the only fix that lasts.

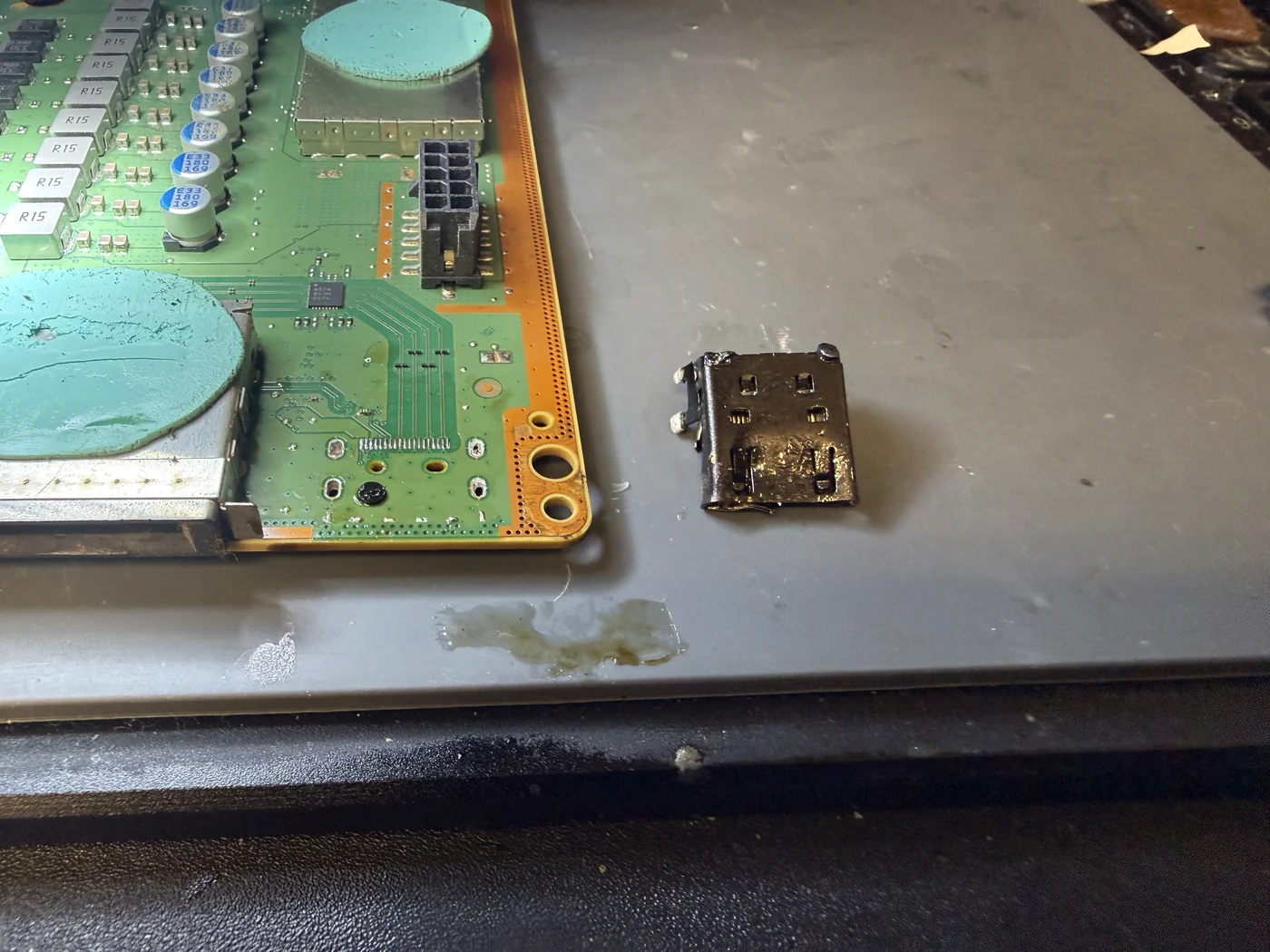

Old port off, pads cleared
The old port comes off and the pads are cleaned with wick and flux until every contact sits bare and flat. A new port only seats properly on a clean, level footprint.

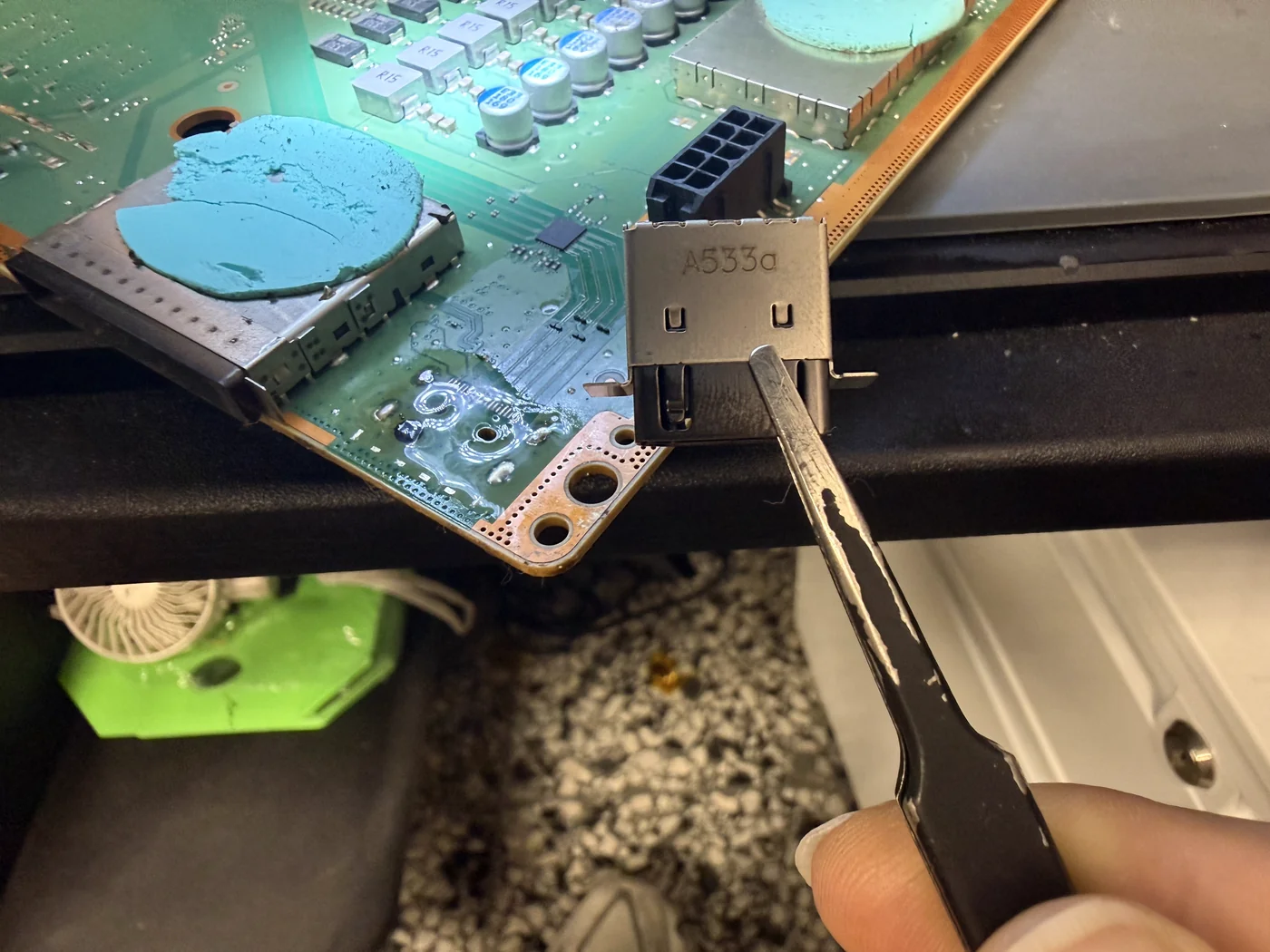

Lining up the new port
The new HDMI port goes on with tweezers, lined up pin by pin before any solder flows. On a connector this dense, alignment is most of the job.

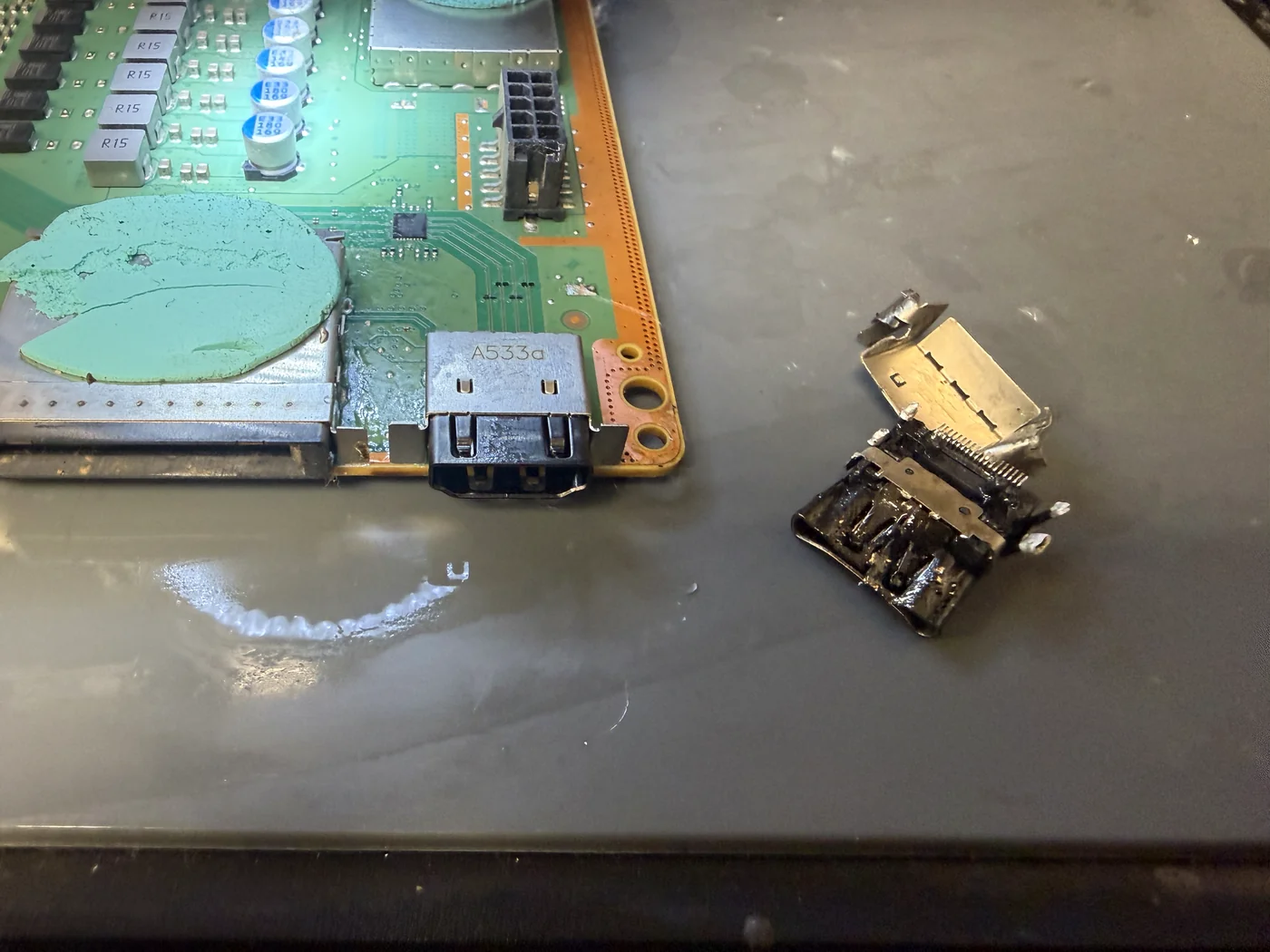

Soldered in, old one retired
The new port is soldered and its shield legs locked down. The old one sits beside it, bent shell and grime and all. Then comes the reassembly, with every connector handled slowly and carefully.
Back on screen, breathing again
Cleaned inside, a new port on the board, and the home screen on the monitor.

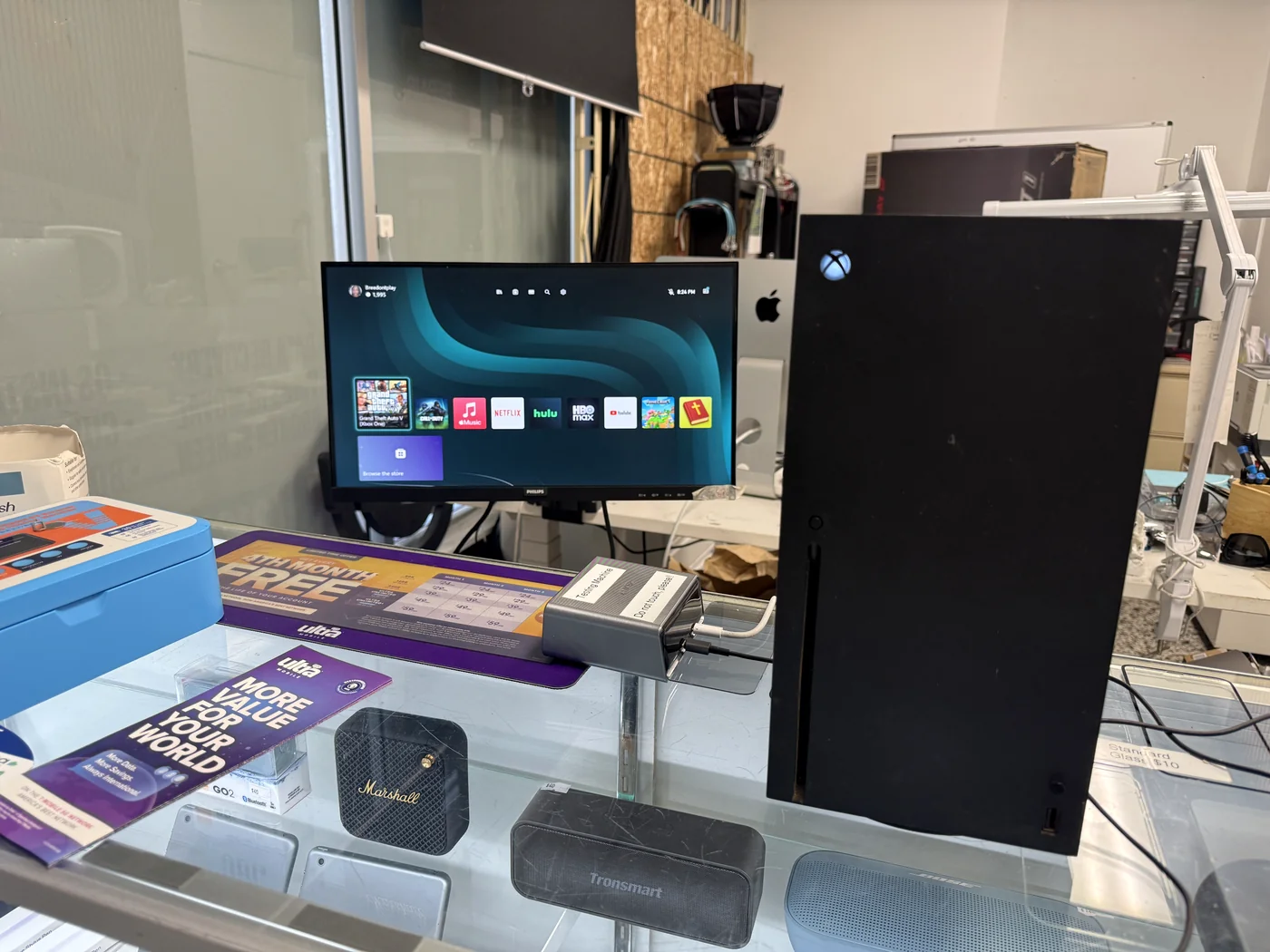

Signal restored, heatsink clear
Reassembled and tested on the bench monitor — straight to the Xbox home screen. The new HDMI port holds a steady picture, and with the hair and debris out of the heatsink, the console finally has room to breathe. Back to its owner, ready to play.
The two questions everyone asks
Straight answers, as always.
Can roaches actually damage an Xbox?
Yes. Their droppings can conduct, and when they build up around components they can cause shorts — power failures are one of the most common results on roach-heavy consoles. One dead roach isn’t a crisis, but if you’ve seen them near your console, have the inside checked and cleaned before it turns into a board repair.
Should I clean my Xbox myself?
The outside vents, sure. A full teardown usually isn’t worth it: paste, putty, and drivers cost money, a first attempt can take all day, and fan or ribbon connectors break easily — we’ve repaired more than one connector ripped off during a home cleaning. Basic dust removal comes free with any repair here, and a full deep cleaning is $30 on top.
