Xbox Series X HDMI Port Repair: No Signal, Bent Pins, Fixed in a Day for $130How we replace the HDMI OUT port on an Xbox Series X at board level — and why we removed it without hot air — Downtown Los Angeles

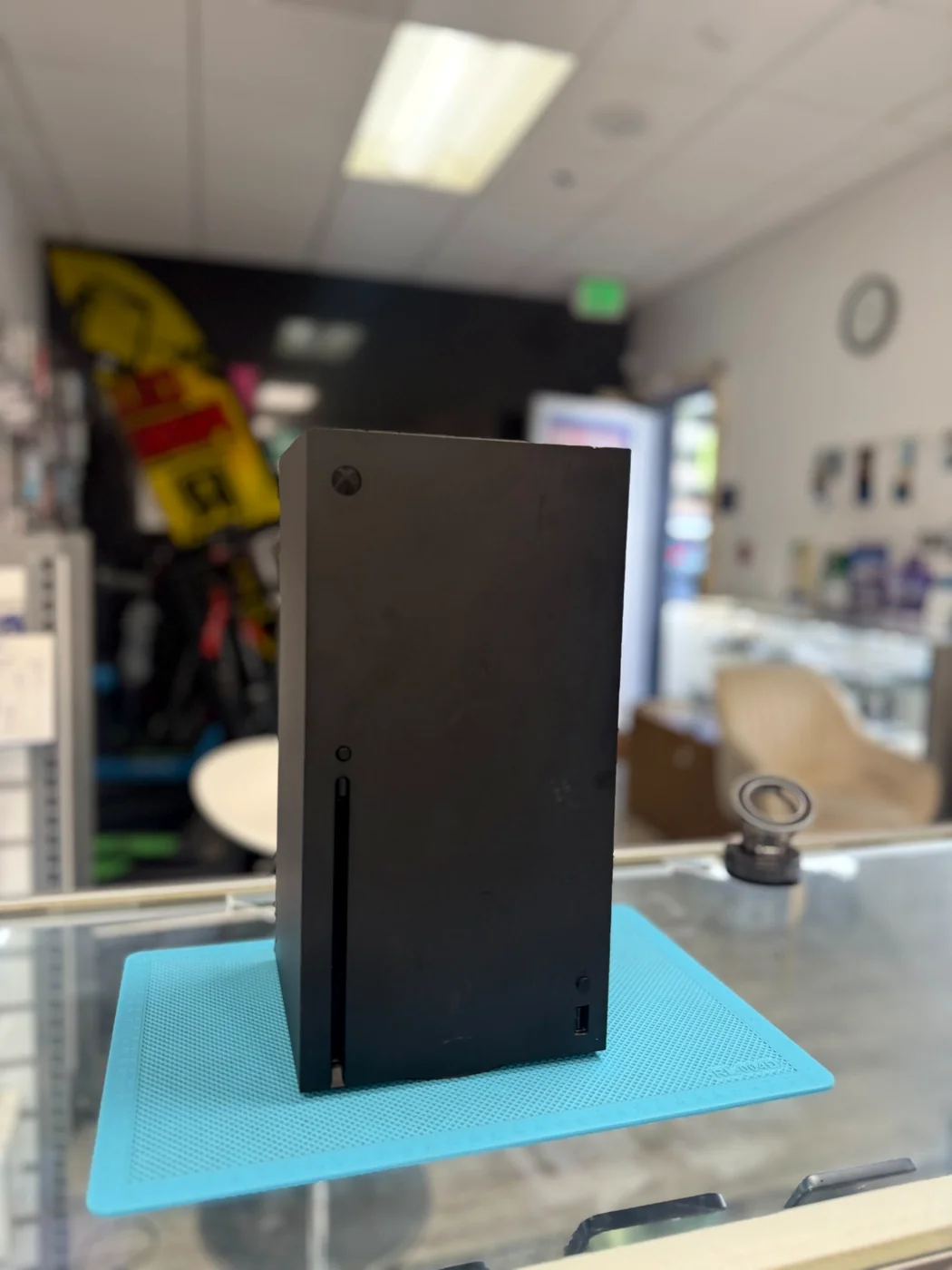

The console powers on, the light comes up, the TV says No Signal. Look into the HDMI OUT socket with a flashlight and the pins that should stand in a straight row are bent and lifted. That's the whole diagnosis on this Xbox Series X. What follows is the fix: a full teardown, the damaged port off the board, a new one soldered on, and the console back on the home screen the same day. Along the way, a few things worth knowing about how the Series X comes apart, and a warning about the cable that did this.
Console runs, TV never sees it. Pins inside the HDMI OUT socket visibly bent and lifted.
Damaged port removed from the mainboard, pads cleaned, new port micro-soldered on and anchored.
Deep cleaning is $30 more if you want it. We quote a day and usually call the same afternoon.
The job, on one card
What was wrong, what went in, and how long it took.
| Model | Microsoft Xbox Series X |
|---|---|
| Problem | No HDMI signal to any display. Pins inside the HDMI OUT port bent and lifted. Console otherwise powering on normally |
| Repair | Full teardown → mainboard out → solder cleared from the port pins → damaged port removed with pliers, no hot air → pads cleaned with wick and flux → new HDMI port seated, pins soldered, shield legs anchored → reassembled and tested on a monitor |
| Repair time | Quoted 1 day, done the same afternoon |
| Cost | $130 (deep cleaning +$30, optional) |
| Teardown | Moderate3 / 5 |
| Tech's note | If you've read our PS5 HDMI posts, the Xbox is a different animal to take apart. The PS5 has more than fifty screws and getting in and out is twenty minutes minimum. The Series X has far fewer. The outer shell comes off, and what's left looks a bit like an engine block: a metal chassis with the power supply, the copper vapor-chamber heatsink and the mainboard stacked inside it. It has its own awkward spots, but overall it's quicker to open than a PS5. The port removal is where I did something different, too. On a PS5 we lift the port under hot air. On this Xbox, I cleared enough solder from the pins with the iron and wick, then worked the port off with long-nose pliers — no heat on the board at all. It's faster and it keeps the surrounding components cool. It is also the step where an inexperienced hand damages the board, because you're twisting a part off pads that are still partly attached. Done a few times, it comes off clean. Done once, without knowing how much solder is enough, it takes the pads with it. On time: this is a two-hour job if I do nothing but this, and three or more with reassembly and testing. I also answer the phone and the door, so I tell customers one day. This one was ready the same afternoon, and we called. |
What bends the pins in an Xbox HDMI port
Sometimes the port fails on its own. More often, something was done to it. Either way, one more thing has to go in the bin.
A weak port from the factory
Some HDMI ports are simply not well made: thin contacts, shield legs with too little solder. Normal use is enough to start them rocking, and once a pin lifts, the handshake with the TV fails. This isn't the majority of what we see, but it happens.
Forced, angled, or yanked
Most of the time it's the other way round: a plug pushed in crooked behind the TV, a cable pulled out by the cord, a console shoved into a cabinet with the cable still bent at the plug. Each one levers the pins. This Xbox's port looked like that story.
If the pins are lifted, throw the cable away
A port damaged this badly usually took the cable with it: the plug's contacts are scored or bent from the same event, and plugging that cable into a brand-new port starts the damage over. When the pins are lifted, replace the cable along with the port. It's the cheapest part of the repair.
Seven frames from the bench
From the socket to the solder to a picture on the screen, photographed as we went.

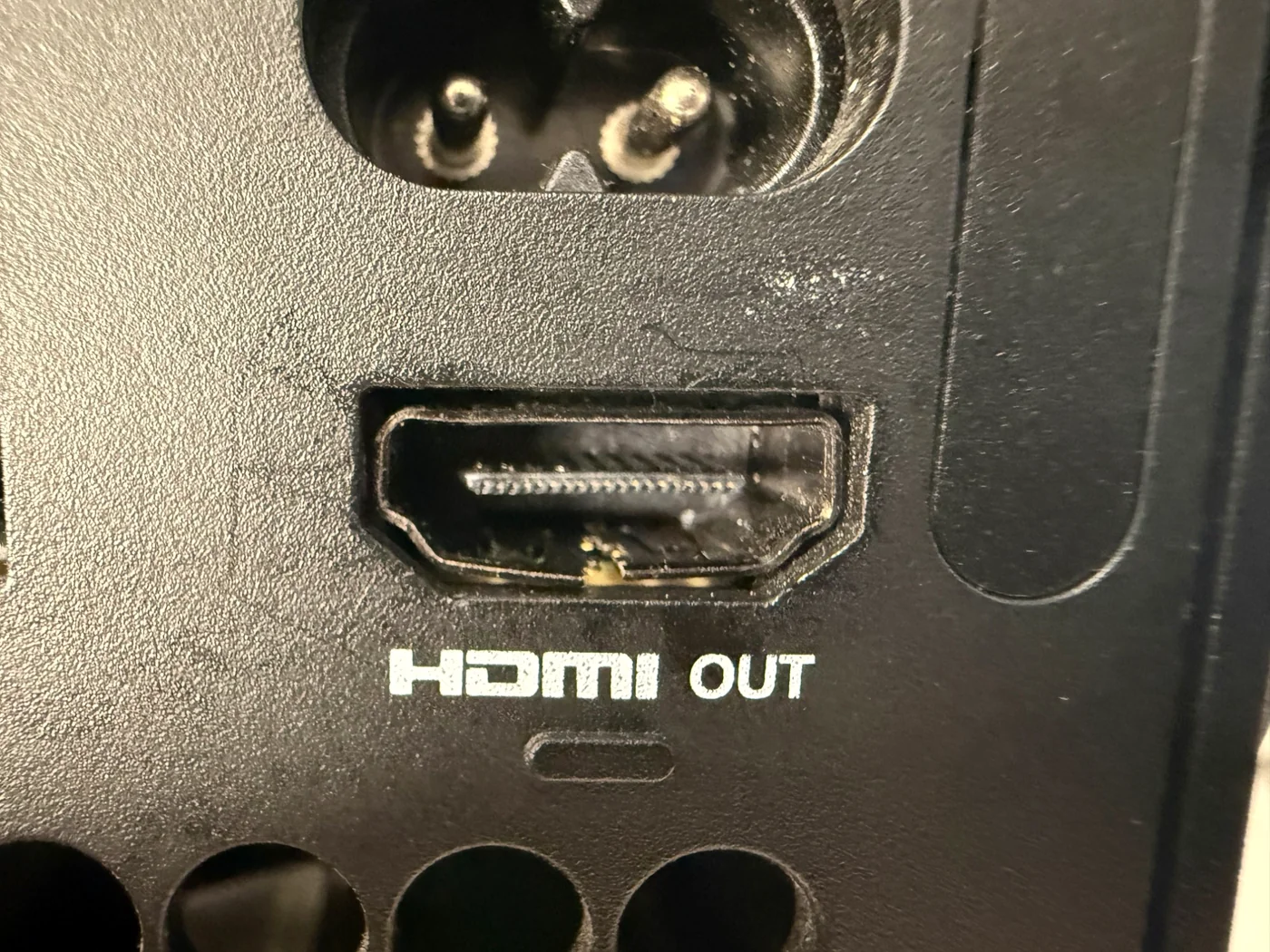

Diagnosis: look into the socket
Before a single screw comes out, we look straight into the port under light. Healthy contacts sit in two straight rows. Here they're bent and lifted out of line, which alone explains "no signal": HDMI needs every data pair, and one lifted pin breaks the handshake. The port has to be replaced. No amount of straightening fixes contacts in this state for long.

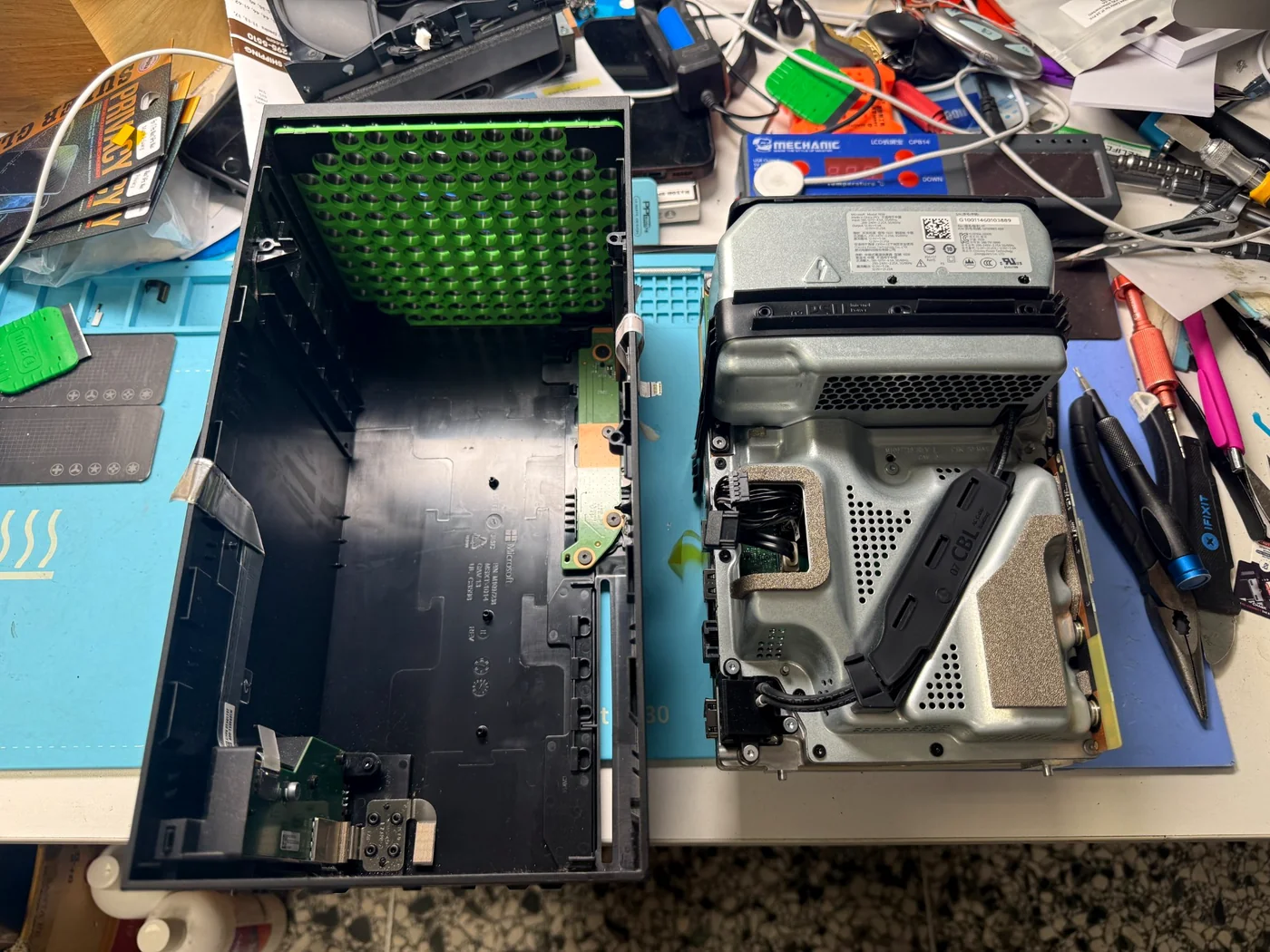

Shell off, chassis out
Unlike the PS5's fifty-plus screws, the Series X opens with a handful. The plastic shell comes away and the entire internal chassis lifts out as a unit: power supply on top, heatsink and mainboard below. It's why teardown is quicker here, even with a couple of awkward clips along the way.

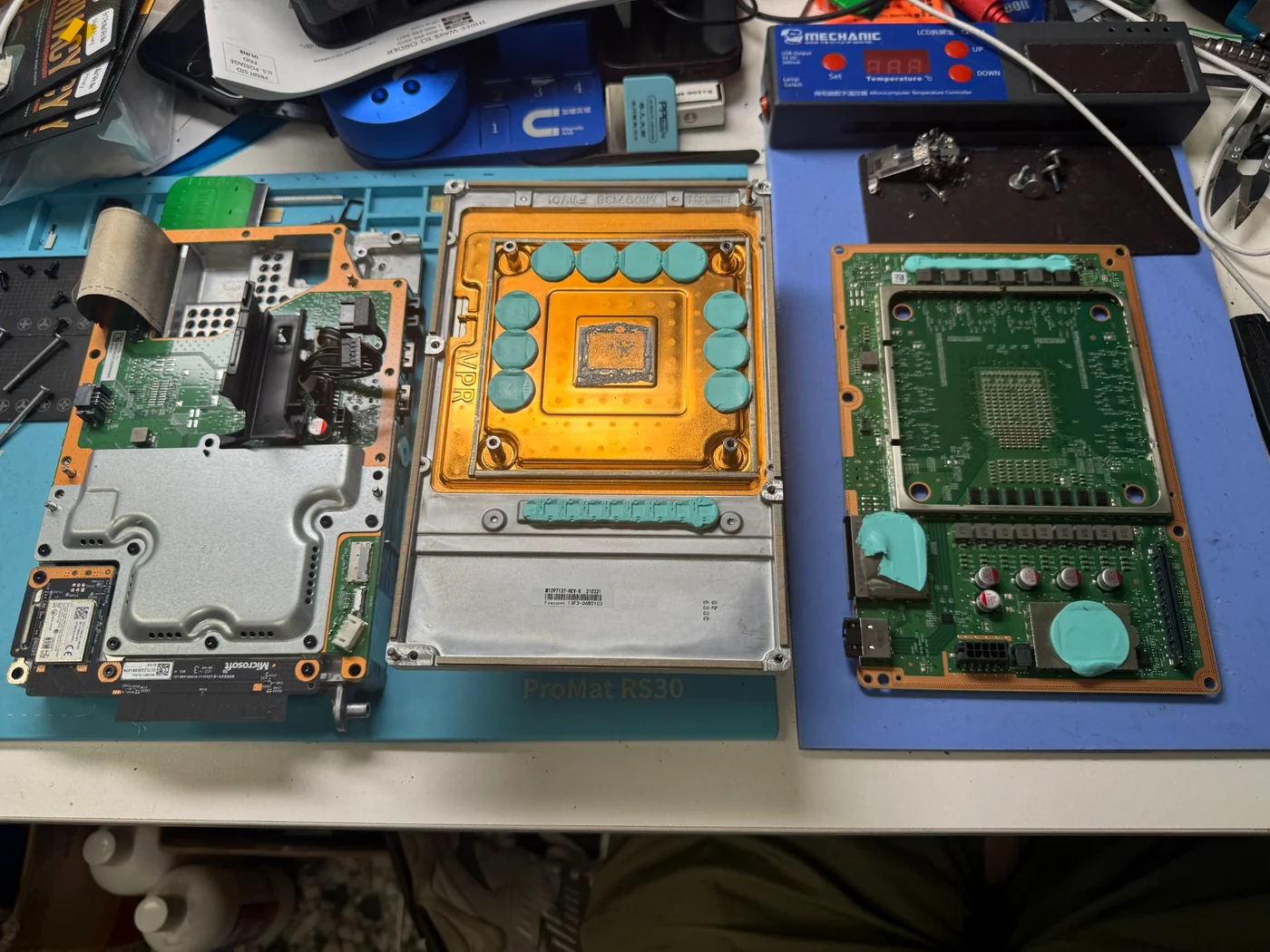

Down to the mainboard
The heatsink comes off the mainboard and the board comes out of the chassis. The Series X uses a large copper vapor chamber with thermal pads on the memory and power stages; the pads are set aside to go back in the same positions. With the board bare, the HDMI port is finally reachable.

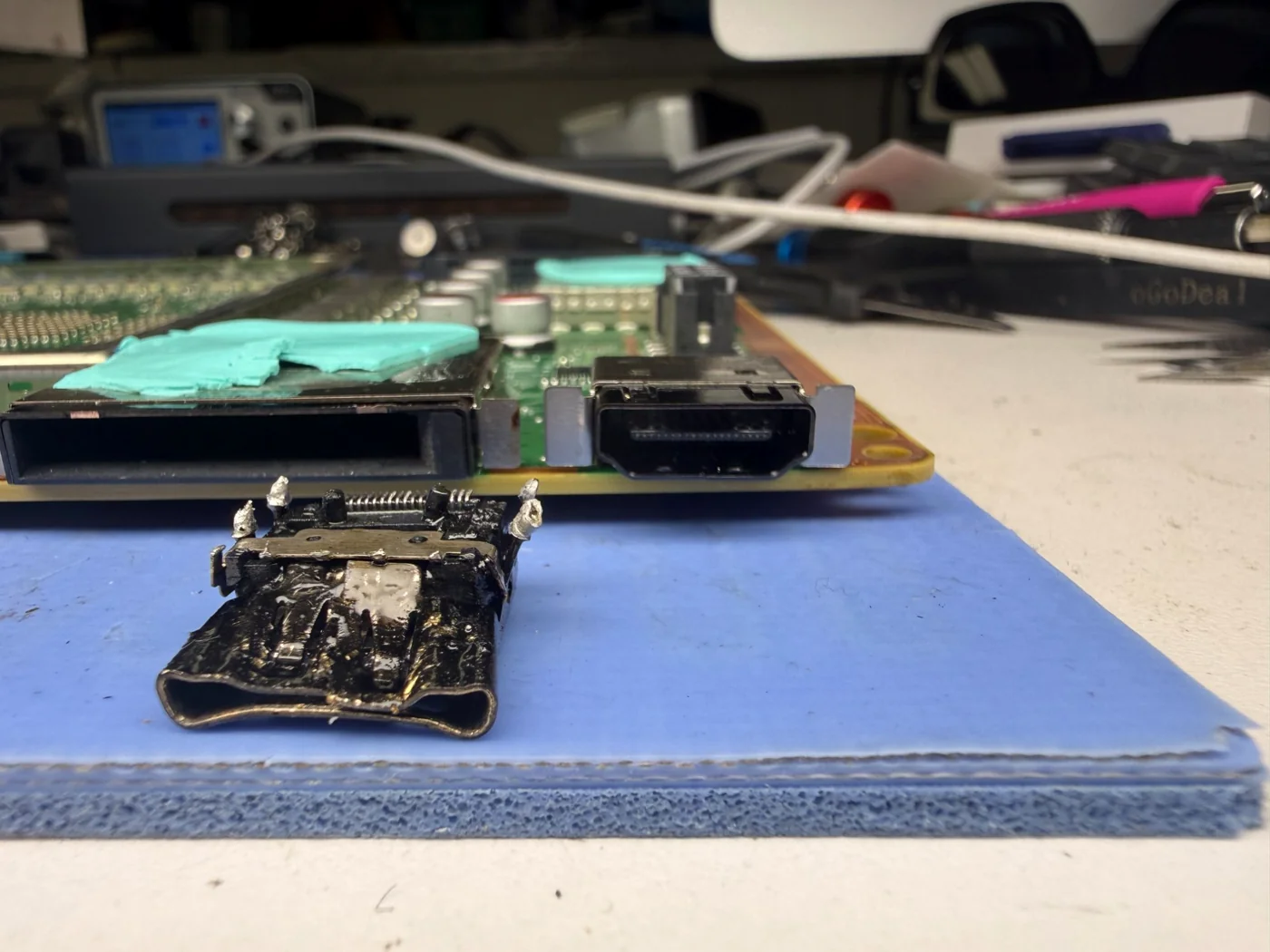

Old port off — without hot air
On a PS5 we lift the port under hot air. Here we cleared the solder from the signal pins with the iron and wick until they were free, then worked the port off its shield legs with long-nose pliers. The board never sees heat from a hot-air station, so nothing around the port is stressed. The trade-off is that you're twisting a part off the board: clear too little solder and the pads come with it. This is the step that separates a routine job from a ruined board.

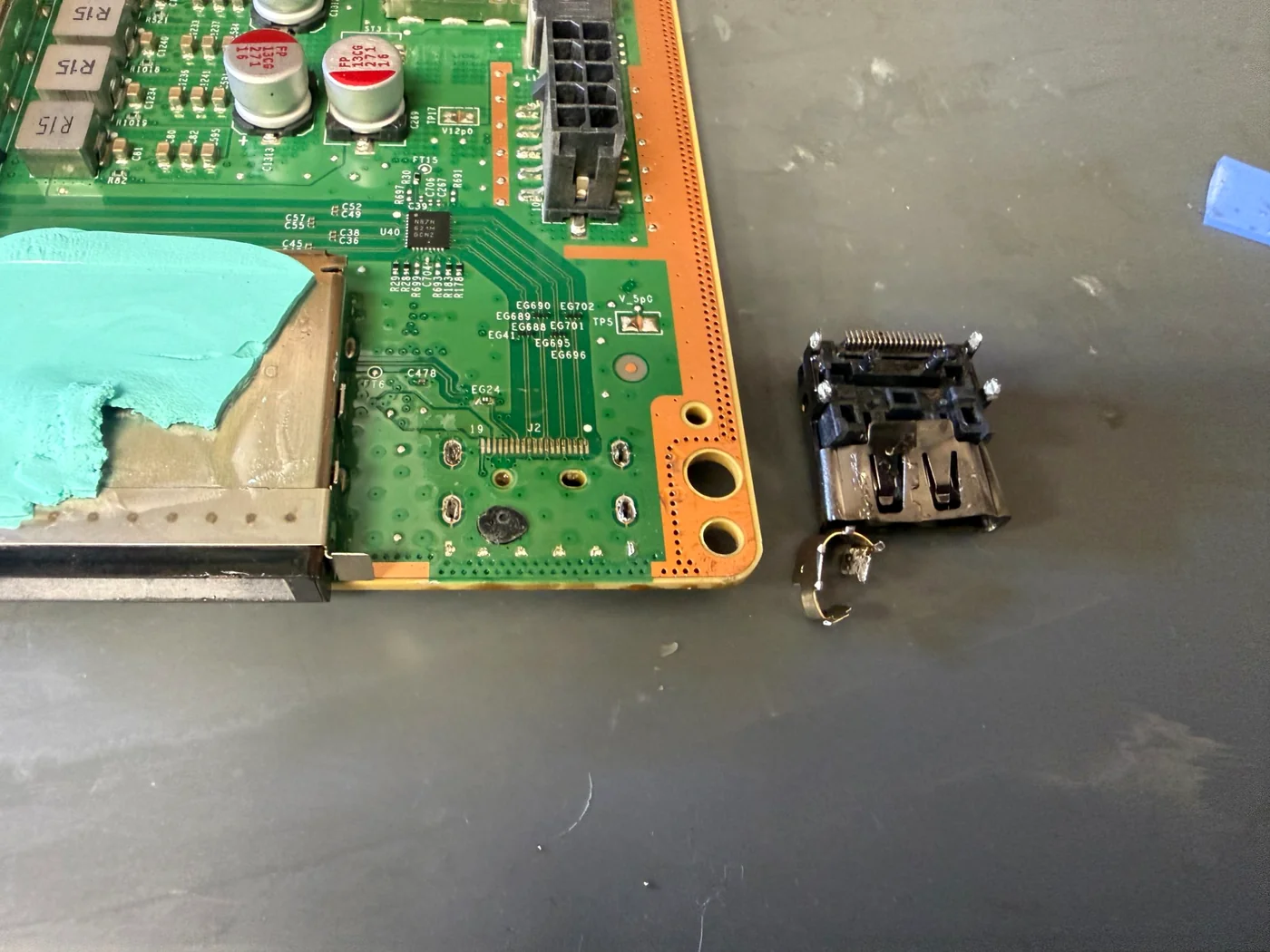

Pads cleaned
Every pad gets the old solder wicked away and cleaned with flux until it's flat and bright. The four through-holes for the shield legs are cleared too. All nineteen pads intact, which is the check that says the removal went right.

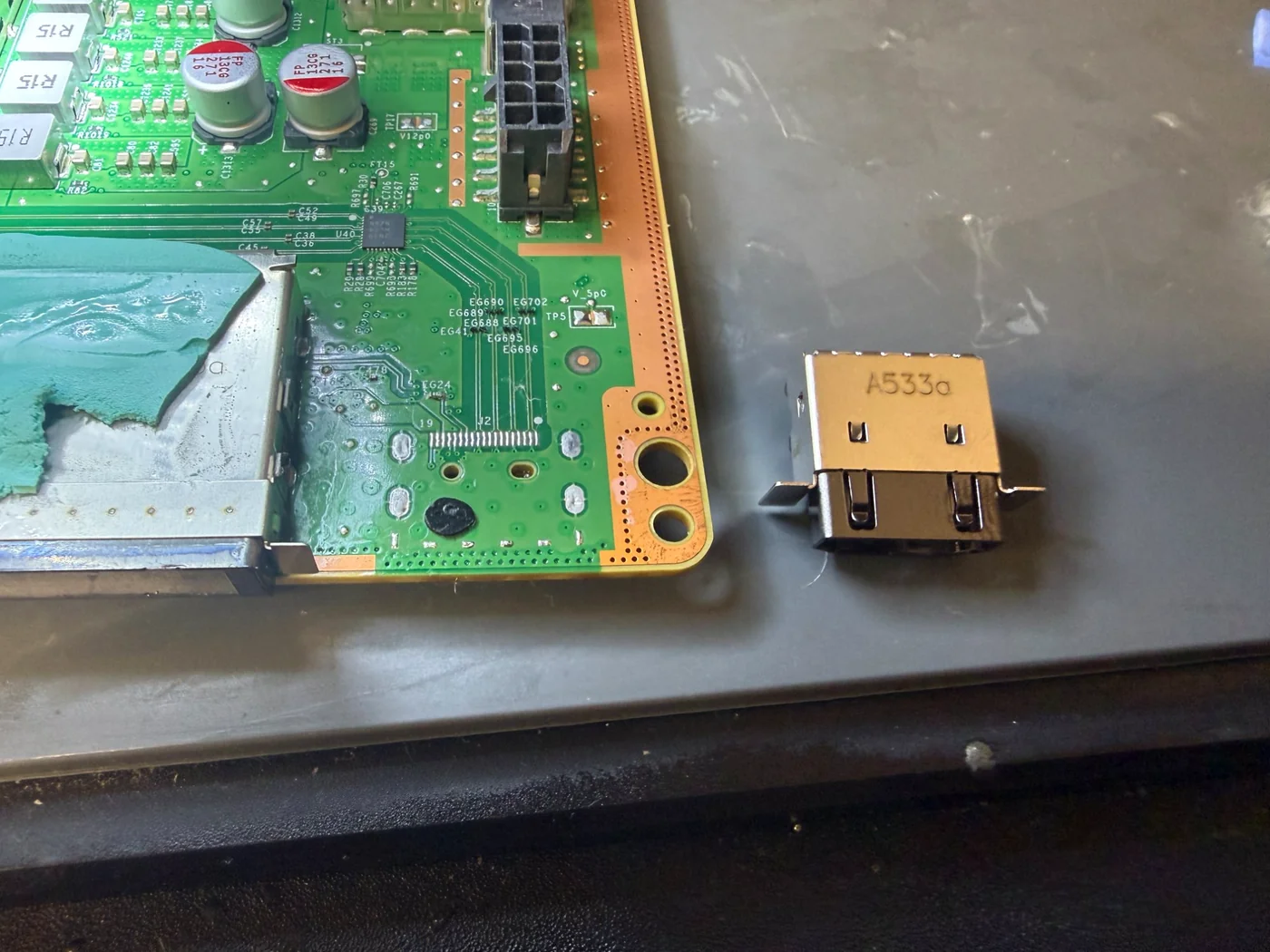

New port seated
The new port is placed so all nineteen pins land on their pads at once and the shield legs drop through their holes. A port a hair off will solder fine and never carry a signal, so alignment is checked under the microscope before any solder goes on.

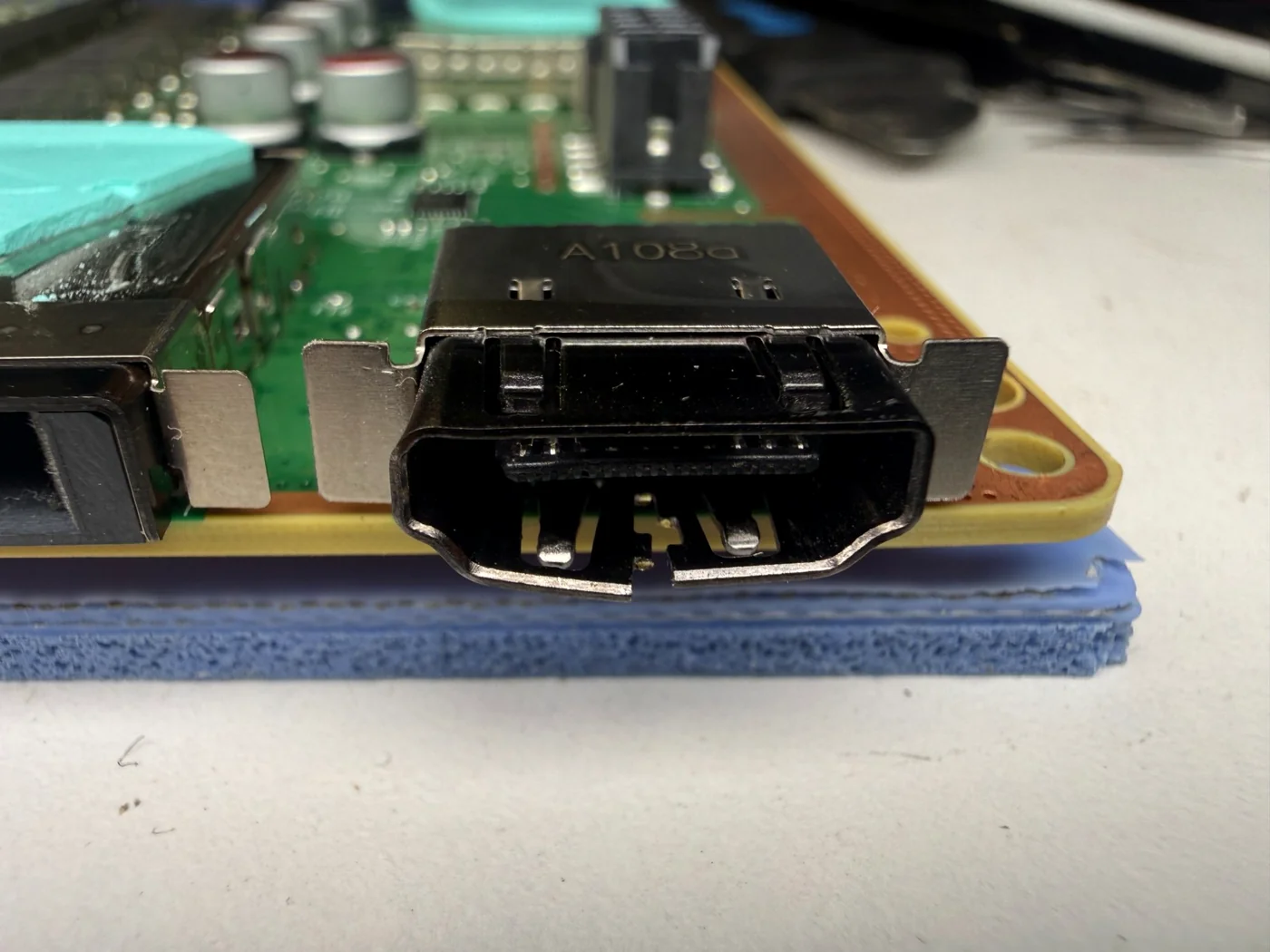

Soldered, pins first, then the anchors
Signal pins go down one row at a time. Then the shield legs are soldered through the board with more solder than the factory used; the legs are what take the sideways force of a cable, which is what failed on the original. The board goes back into the chassis with the pads in place, the heatsink on, and the shell closed.
Home screen, same afternoon
New port, first-try handshake, a phone call to the customer.

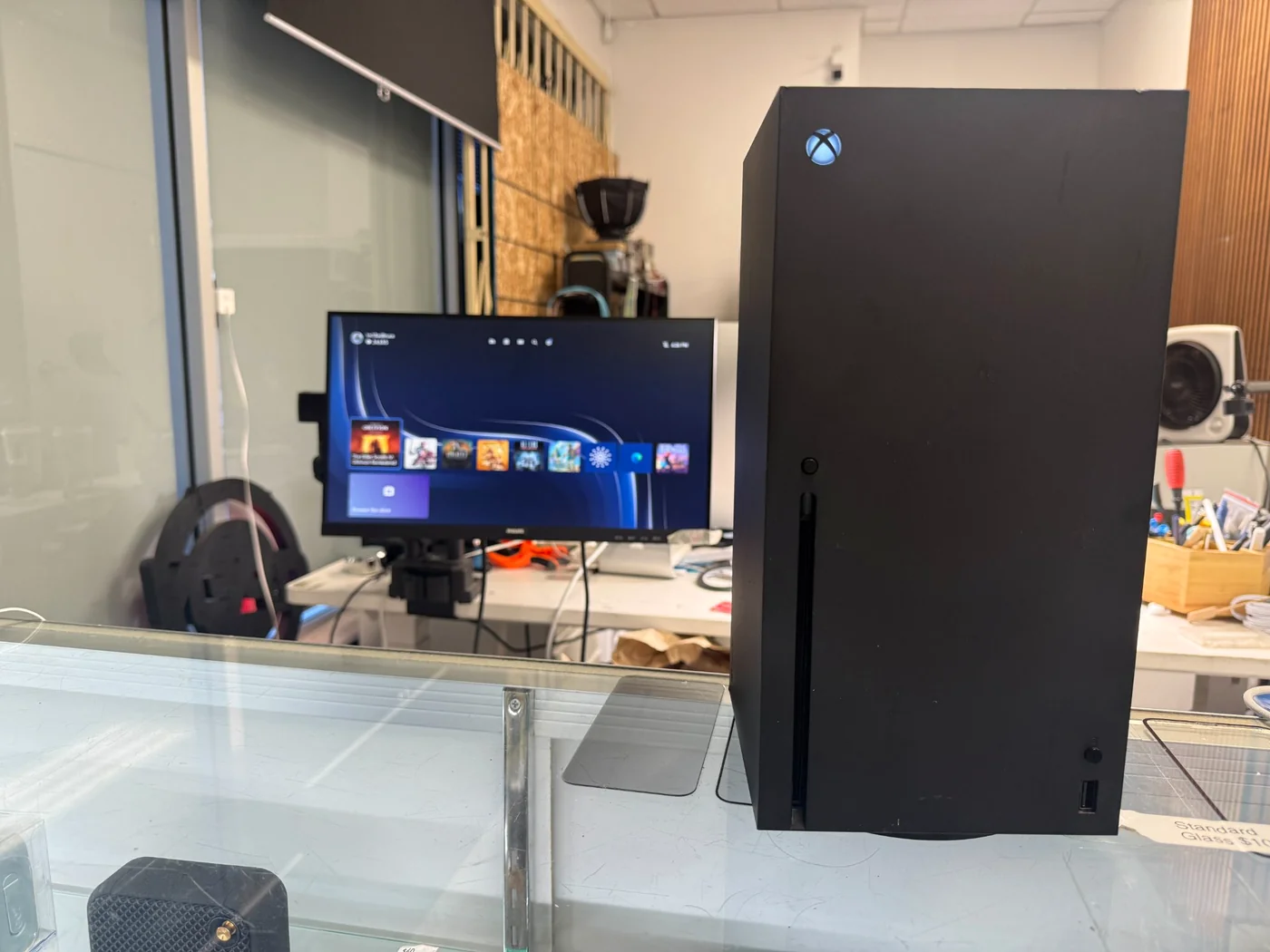

HDMI signal back, port solid in the housing
Plugged into the bench monitor with a known-good cable, the Xbox handshook on the first try and went straight to the home screen. The port sits firm with no play, the cable clicks in and out cleanly, and we left it running long enough to be sure the picture held. Games, saves and the account are untouched: nothing in this repair goes near the storage. Quoted a day, called the same afternoon.
The questions that usually follow
Straight answers, as always.
How much does Xbox Series X HDMI port repair cost?
$130 at our shop, parts and labor. If you'd like the console deep-cleaned while it's open, it's $30 more.
How long does it take?
We quote one day. The work itself is about two hours of uninterrupted bench time, three or more with reassembly and testing, and it usually goes out the same afternoon. We call when it's ready.
My Xbox turns on but the TV says no signal. Is it the HDMI port?
Often, yes. Try a known-good cable and a different TV input first. If that changes nothing, shine a light into the HDMI OUT socket: bent, lifted or missing pins mean the port needs replacing. Bring it in and we'll confirm it in front of you.
Can the bent pins just be straightened?
Not reliably. Contacts that have been lifted are fatigued and fail again under normal plugging, and any that snapped can't be straightened at all. A new port on cleaned pads is the repair that lasts.
Should I keep using my old HDMI cable?
If the port's pins were lifted, no. The cable that did it usually has scored or bent contacts of its own, and it will start damaging the new port. Replace the cable with the port.
Is the Xbox easier to repair than a PS5?
To open, yes: far fewer screws, and the whole chassis lifts out of the shell. The port work is the same kind of job on both — nineteen fine-pitch pins plus shield legs under a microscope.
Will I lose my games or saves?
No. The HDMI port is on the mainboard and the repair never touches the storage. Everything comes back exactly as it was.
Can I do this myself?
Only if you already do board-level soldering. It's a routine job with experience and a board-killer without it. If your experience is a phone battery or an iPad charging port, this is the one to hand off.
