The Second PS5 of the Day Walked In While the First Was Still Open on the BenchPS5 Slim HDMI Port Replacement, Broken Pins From a Forced Cable — Downtown Los Angeles

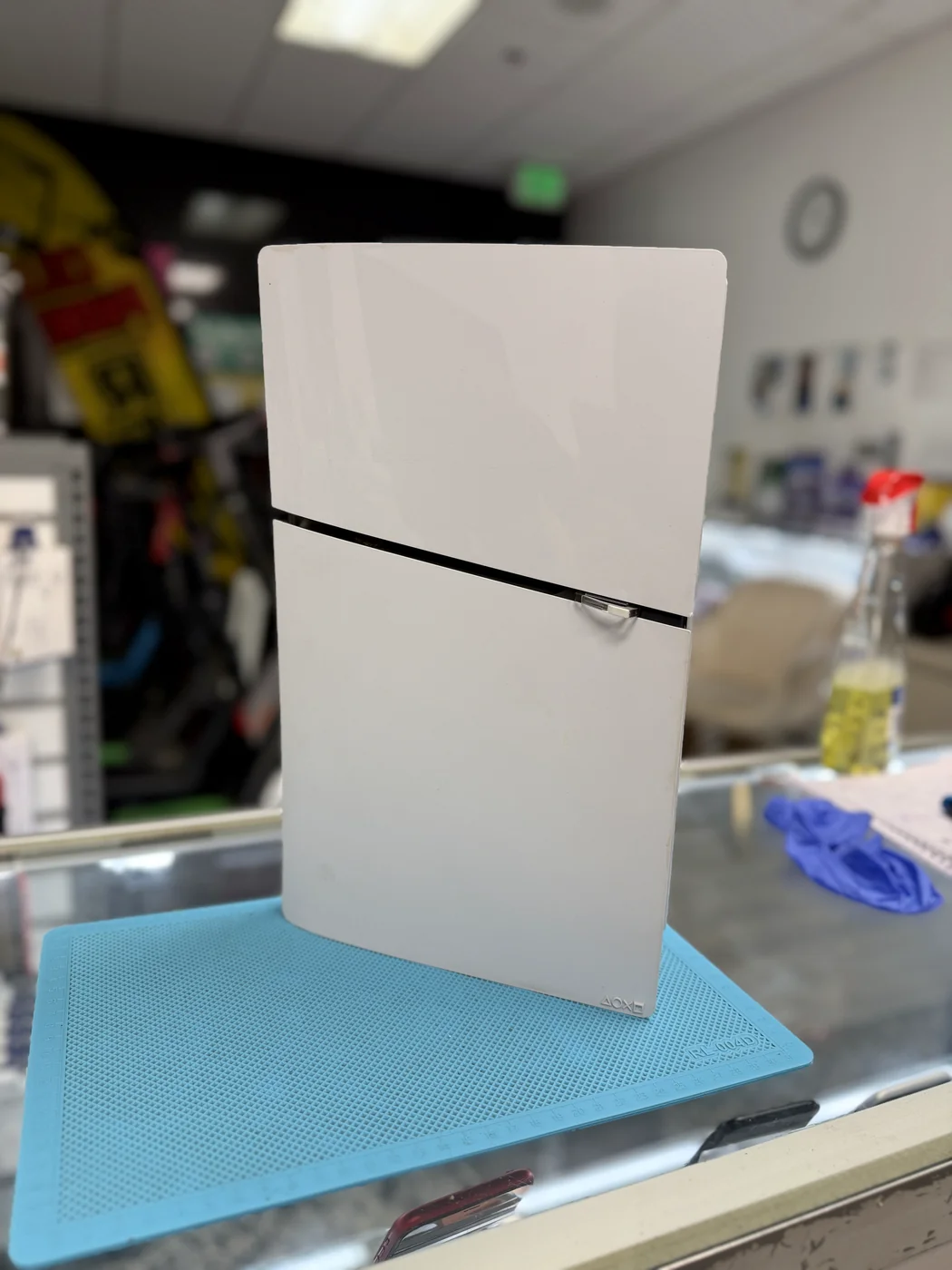

Some days have a theme. We had a PS5 Disc Edition in pieces for an HDMI port when a customer came in with a PS5 Slim and the same complaint: powers on, TV sees nothing. One look inside the socket and you could see why. Several pins were bent and broken, the way it goes when a cable is pushed in wrong, or a worn-out cable is forced in until something gives. We quoted the usual, three to four hours, up to a day, and had it booting before the shop closed at six.
Console powers on, no HDMI handshake. Several pins inside the socket bent and snapped.
Old port off the board, new one soldered on. We don't straighten pins on a port that's failed once.
Quoted 3–4 hours, up to a day. Finished before 6, customer texted to collect in the morning.
The job, on one card
What was wrong, what went in, and how long it took.
| Model | Sony PlayStation 5 Slim |
|---|---|
| Problem | No HDMI signal to any display. Several signal pins inside the port bent and broken — consistent with a cable inserted at the wrong angle or a damaged cable forced in. Console otherwise healthy, interior clean |
| Repair | Full teardown → heatsink and shield off, board out → damaged HDMI port desoldered and removed → pads cleaned → new port seated and micro-soldered → light fan dusting → reassembled and tested on a monitor |
| Repair time | Finished same afternoon (quoted 3–4 hours, up to a day) |
| Teardown | Demanding4 / 5 |
| Tech's note | He asked how long, and I gave him the answer we give everyone: three to four hours if the bench is clear, up to a day depending on what else is in the shop. Then I told him we'd text. That's the arrangement I like best. Nobody waits in the store, nobody wonders, and the work gets done at its own pace. It was ready before we closed at six, and he got a message that it could be picked up any time the next morning. One thing people don't expect about PS5 repair is how much of the time is just getting in and out. Teardown is ten minutes if you know the order; reassembly is another ten. Add a dirty interior that needs cleaning before it closes and you can spend an hour before a single joint is touched. This one was clean inside. The fan got a quick dusting and that was the cleaning done. |
Broken pins, and why we don't bend them back
The port looked fine from arm's length. Up close, several contacts were bent over and snapped. Here's how that happens and what we do about it.
Cable pushed in crooked
HDMI plugs only go in one way, but they'll start going in wrong if you're reaching behind a console blind. Push a little harder and the plug's edge catches the pins instead of sliding over them. One shove is enough to fold a row of them.
A tired cable, forced
Old cables get a burr on the shell or a loose contact inside. They don't seat cleanly, so people push until they click. Whatever was in the way gives first, and the pins in the port are far more delicate than the plug.
Replace, don't straighten
A bent pin can sometimes be coaxed upright, and it'll work for a while. Broken ones can't be. And metal that's been folded once is fatigued, so even the survivors fail again under normal use. On any PS5 that comes in with port damage like this, we fit a new port. It's the difference between a fix and a return visit.
Four frames from the bench
The second HDMI port of the day, photographed as we went.

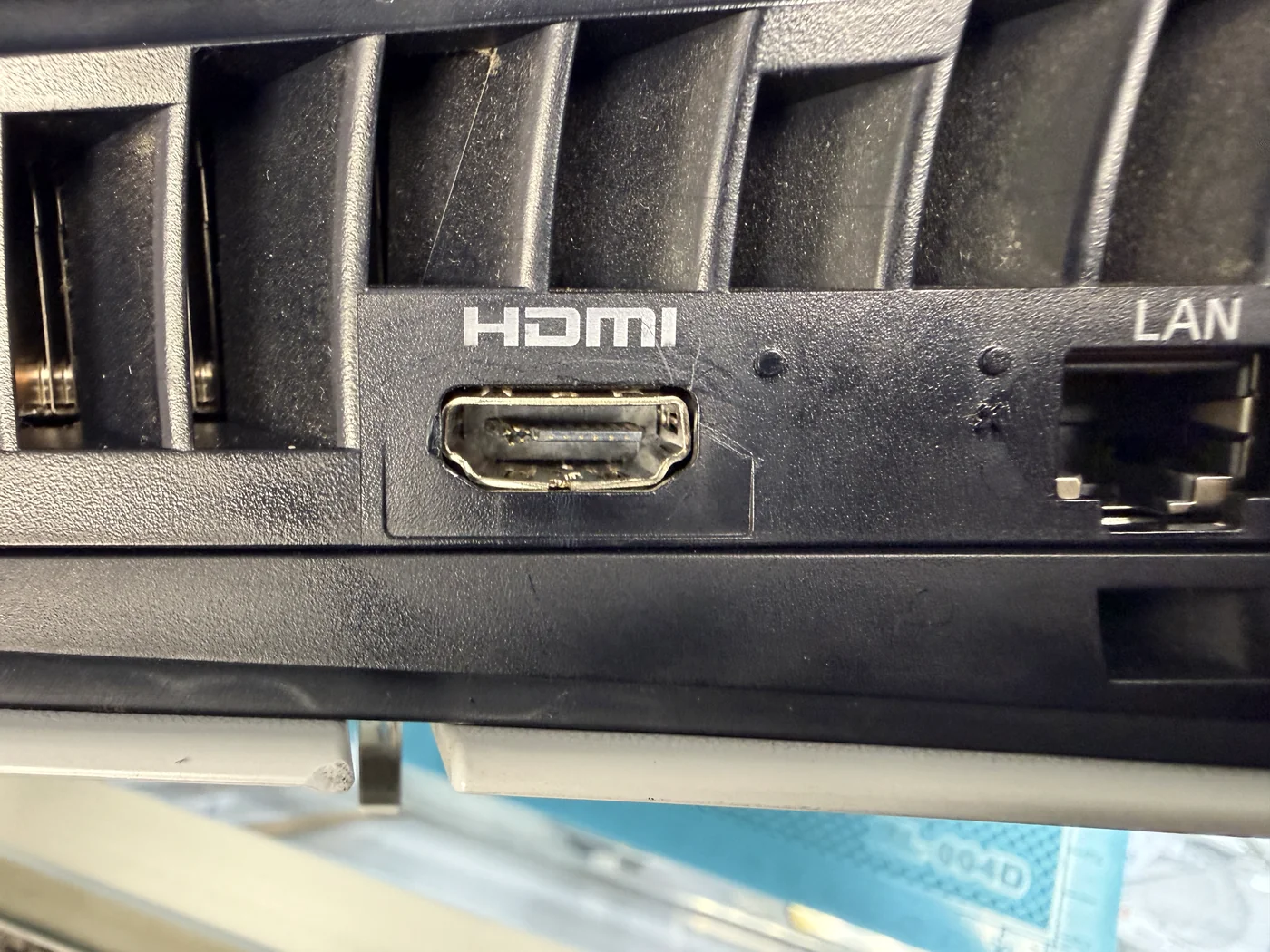

Diagnosis takes a flashlight
Before anything comes apart, we look straight into the port under light. On a healthy socket the contacts sit in two neat rows. Here, several were folded toward the tongue and some had snapped off. That explains "no signal" on its own: HDMI needs every one of its data pairs, and losing even one breaks the handshake. No point testing further until it's replaced.

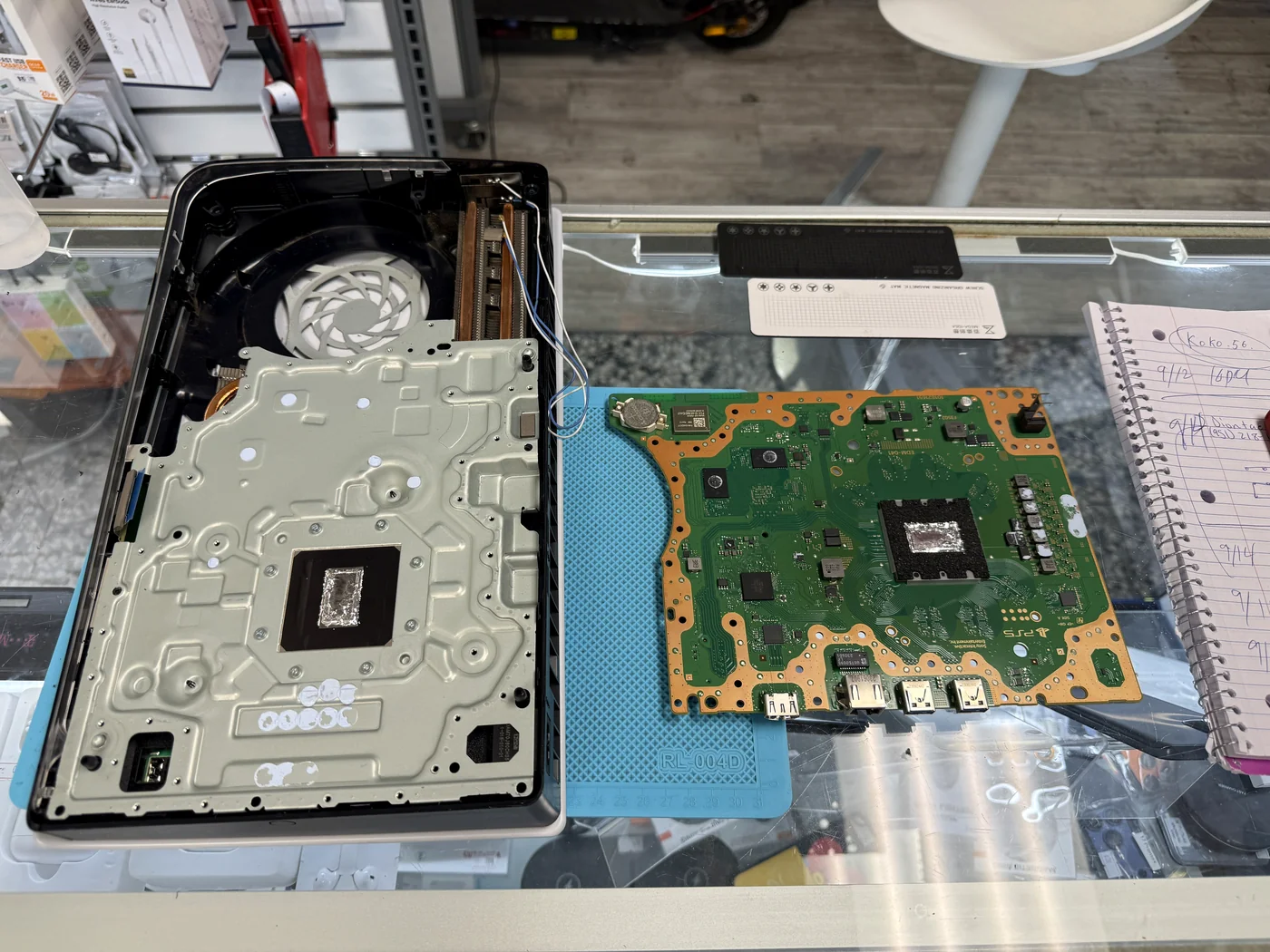

Twenty minutes of getting in
The Slim comes apart in the same order as the standard PS5: panels, fan, shield, heatsink, then the board. This is the part that surprises people about console repair. Ten minutes in, ten minutes back out, and that's before the actual repair starts. The APU's liquid metal is exposed once the heatsink lifts, so from here the board stays flat and the hands stay slow.

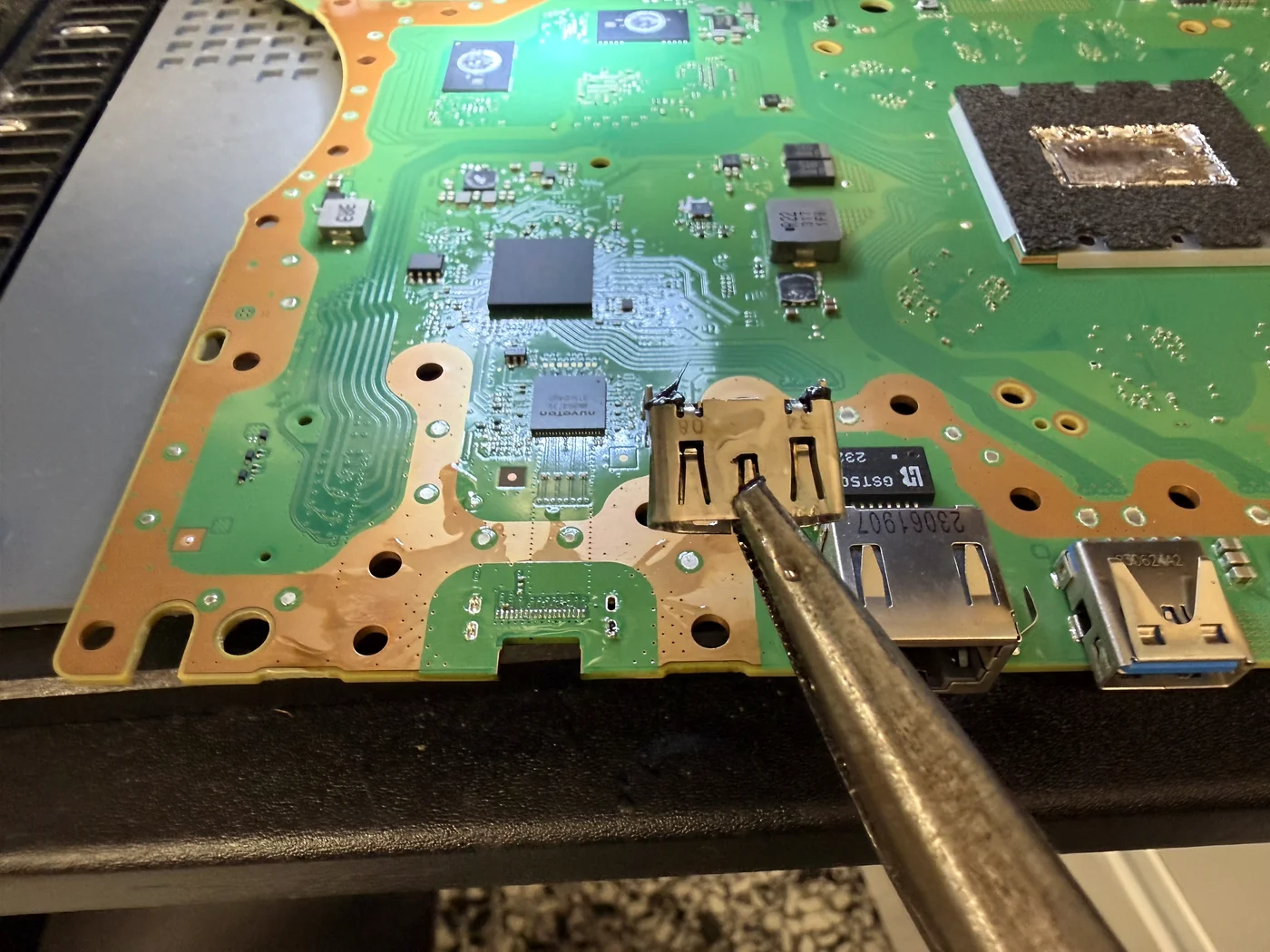

The old port, before removal
Under the microscope the damage is clearer: the bent and broken contacts, and the scuffing on the shell where a plug went in at an angle. The shield legs are freed first, then the nineteen signal pins come up under hot air with everything around the port masked off. Every pad is then cleaned back to flat with wick and flux.

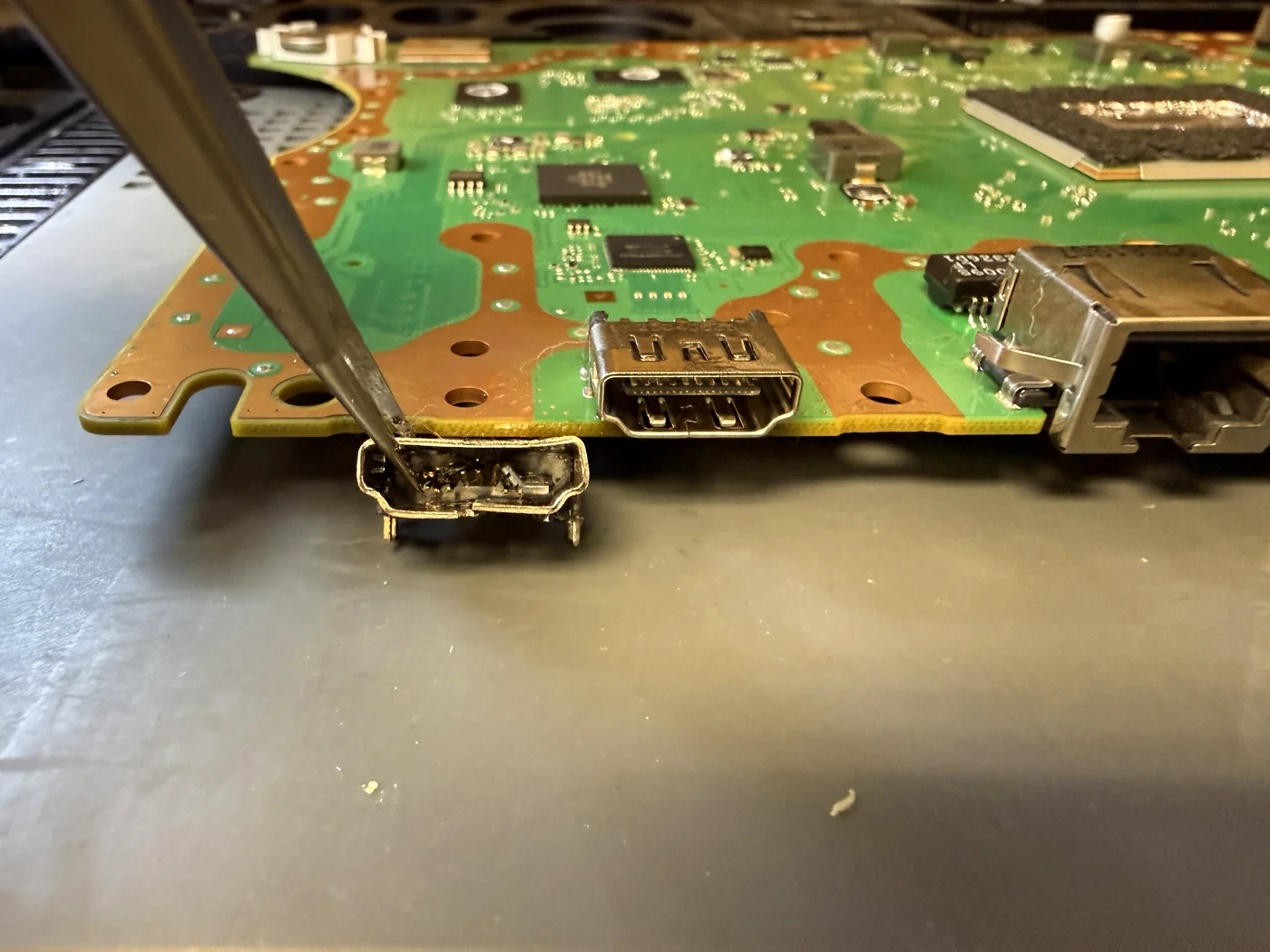

New port in, old port out
The new port is placed so all nineteen pins land on their pads at once, then soldered a row at a time, then the shield legs are soldered through the board. Held next to it, the old port tells the story: the broken contacts, and the wear on the shell from the plug that did it. It goes in the bin, not back in the console.
Booting before six, picked up in the morning
New port, signal back, a text sent.

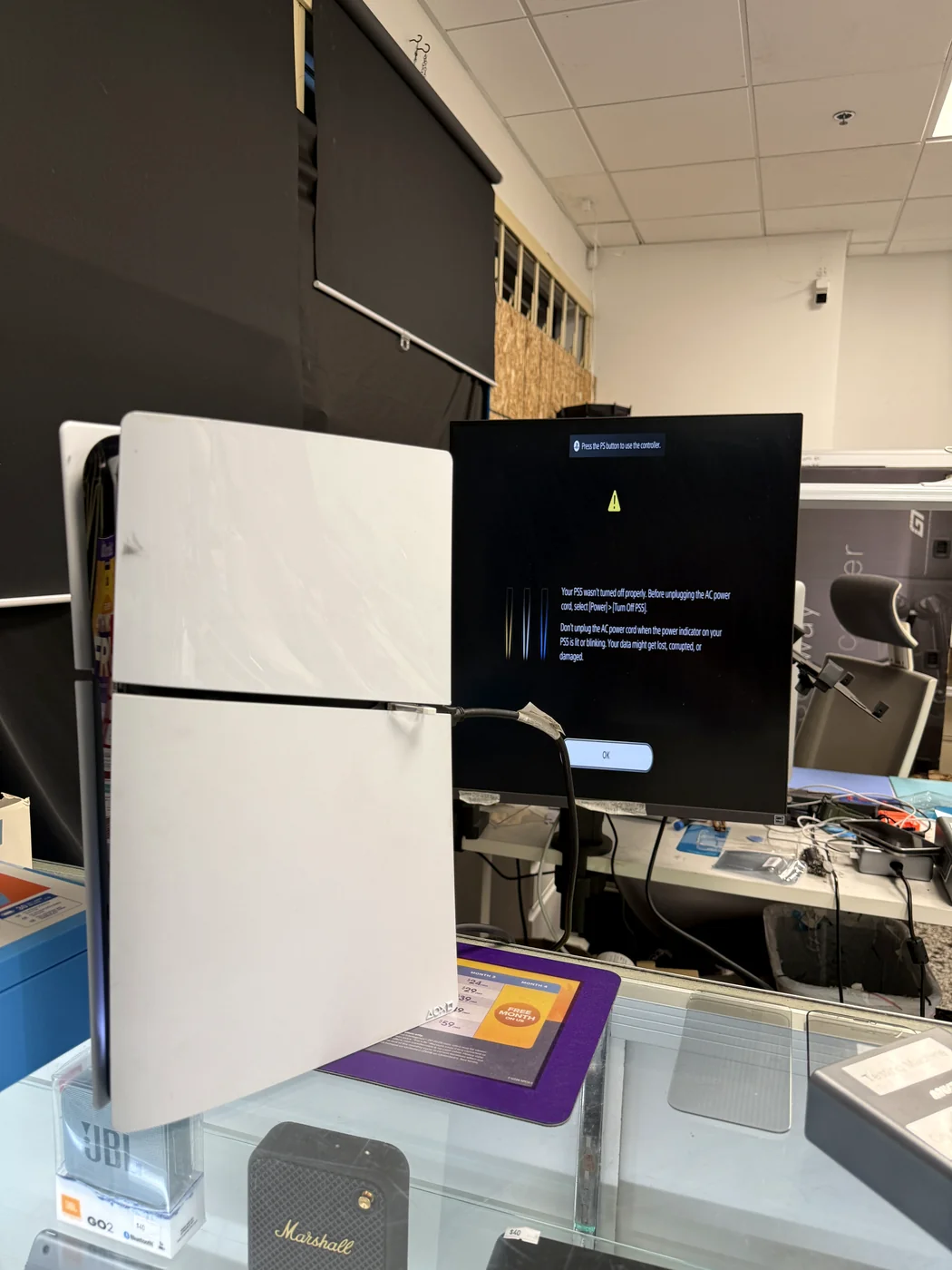

HDMI handshake on the first try
Plugged into the bench monitor and straight to the system screen. The port sits firm in the housing, the cable clicks in and out cleanly, and we left it running long enough to be sure the picture held. Games, saves and accounts untouched. The only note on screen was the console telling us it hadn't been shut down properly last time — which is what happens when the picture disappears mid-session and someone pulls the plug.
The questions that usually follow
Straight answers, as always.
How long does a PS5 Slim HDMI port replacement take?
We quote three to four hours, and up to a day depending on what else is on the bench. Most are ready the same day. We text you when it's done, so there's no need to wait in the store.
My PS5 turns on but the TV shows no signal. Is the port broken?
Often, yes. Shine a light into the socket: if any pins look bent, flattened or missing, or the cable feels loose or has to be angled to work, the port needs replacing. Try a known-good cable and a different TV input first to rule out the easy things.
Can't you just straighten the bent pins?
A bent pin can sometimes be straightened and it'll work for a while; a broken one can't be. Either way we don't, because a contact that's been folded flat is fatigued and fails again under normal plugging. A new port costs a little more and stays fixed.
Is the PS5 Slim harder to repair than the original PS5?
Not harder, but the teardown order is its own thing and the board is smaller. The HDMI port itself is the same kind of job: nineteen fine-pitch pins plus shield legs, done under a microscope.
Why does a PS5 repair take hours if the soldering is quick?
Because getting in and out is most of it. Teardown and reassembly are ten minutes each when the console is clean, and much longer when it's full of dust and needs cleaning before it closes. The soldering is the short part in the middle.
Will I lose my games or saves?
No. The HDMI port is on the mainboard and the repair never touches the SSD. Everything comes back exactly as it was.
How do I stop it happening again?
Line the plug up before you push, never force a cable that doesn't want to seat, and replace cables that feel loose or rough. Leave enough slack behind the TV that the cable never bends at the plug.
