A Dad, Two Kids Waiting at Home, and a PS5 Back From a Year in StoragePS5 HDMI Port Replacement + Deep Cleaning, Same Day — Downtown Los Angeles

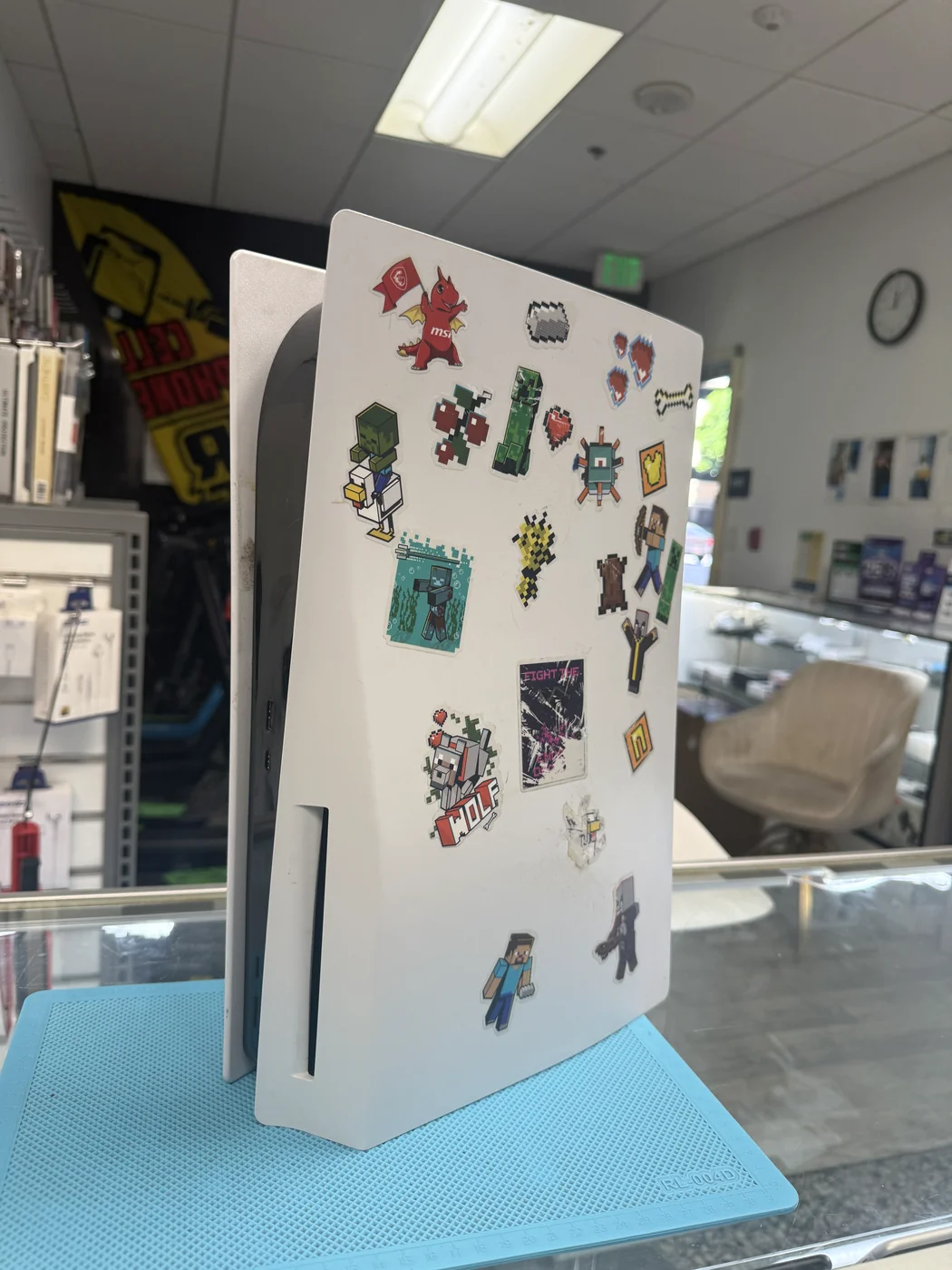

The console came in wearing a full sheet of Minecraft stickers, so we knew who it really belonged to before anyone said a word. Dad had dug it out of storage after a long time and wanted it working today. The picture had died a year ago, and every cable he tried made no difference. On the bench it took about ten seconds to feel why: the HDMI port moved when you touched it. This is the story of a loose port, a lot of dust, and a father who checked in on us more than once.
Console powers on, TV never sees it. The HDMI socket rocks in the frame when the cable goes in.
Old port removed from the board, new one seated pin by pin and soldered. Liquid metal refreshed on the way back together.
Fans and panels were caked. We cleaned the whole console at no charge — first visit, and the kids were waiting.
The job, on one card
What was wrong, what went in, and how long it took.
| Model | Sony PlayStation 5, Disc Edition |
|---|---|
| Problem | No HDMI signal to any TV or monitor. Port physically loose in the rear housing. Console otherwise powering on normally. Stored unused for about a year |
| Repair | Full teardown → heatsink off, board out → damaged HDMI port desoldered and removed → new port seated and micro-soldered (19 signal pins + shield legs) → APU liquid metal cleaned and re-applied → fan, panels and chassis deep-cleaned → reassembled and tested on a monitor |
| Repair time | About 3 hours, same day (we normally ask for one day) |
| Teardown | Demanding4 / 5 |
| Tech's note | He asked, first thing, whether we could do it today. I said three to four hours. Honestly, with nobody else in the shop this is a two-hour job, but a shop is never empty for two hours straight, and I'd rather promise the slower number and beat it. He came back to the counter a few times while it was open to ask how it was going. I understand it completely. Two kids at home who've been told the PlayStation is coming back today. I'd be the same. What I'll say, gently, because it applies to every repair we do: the work goes better when the person doing it isn't being timed. Board-level soldering is a calm, careful job. Nineteen pins on a port smaller than a fingernail, next to a chip carrying liquid metal. The reason we tell most customers "one day" isn't that it takes a day. It's that a day gives the work the room it needs, and the result is what you actually came for. This one went out in about three hours anyway, cleaned inside and out. The cleaning would normally be $120. First visit, kids waiting, it was on us. |
The cable end is where every device breaks
Phones lose their charging ports. Consoles lose their HDMI ports. Same physics, same three habits.
Pushed into a tight cabinet
Cable plugged in, console shoved back into a shelf that's a little too shallow. The plug bends, the bend becomes a lever, and the lever works the port loose from the board a fraction at a time. Nobody notices until the picture flickers, then stops.
A bad cable, or a cheap one
A plug that's slightly oversized, or one with a burr on the shell, grips the port's pins harder than it should. Every insertion scrapes. A cable that swings loose on the back of a TV stand does the same job more slowly.
Plugged and unplugged, over and over
Moving the console between rooms, swapping it with another device, packing it for trips. HDMI ports are rated for a lot of insertions, but the solder joints holding them to the board are not designed to take sideways force each time.
Eight frames from the bench
From dust to solder to a picture on the screen, photographed as we went.

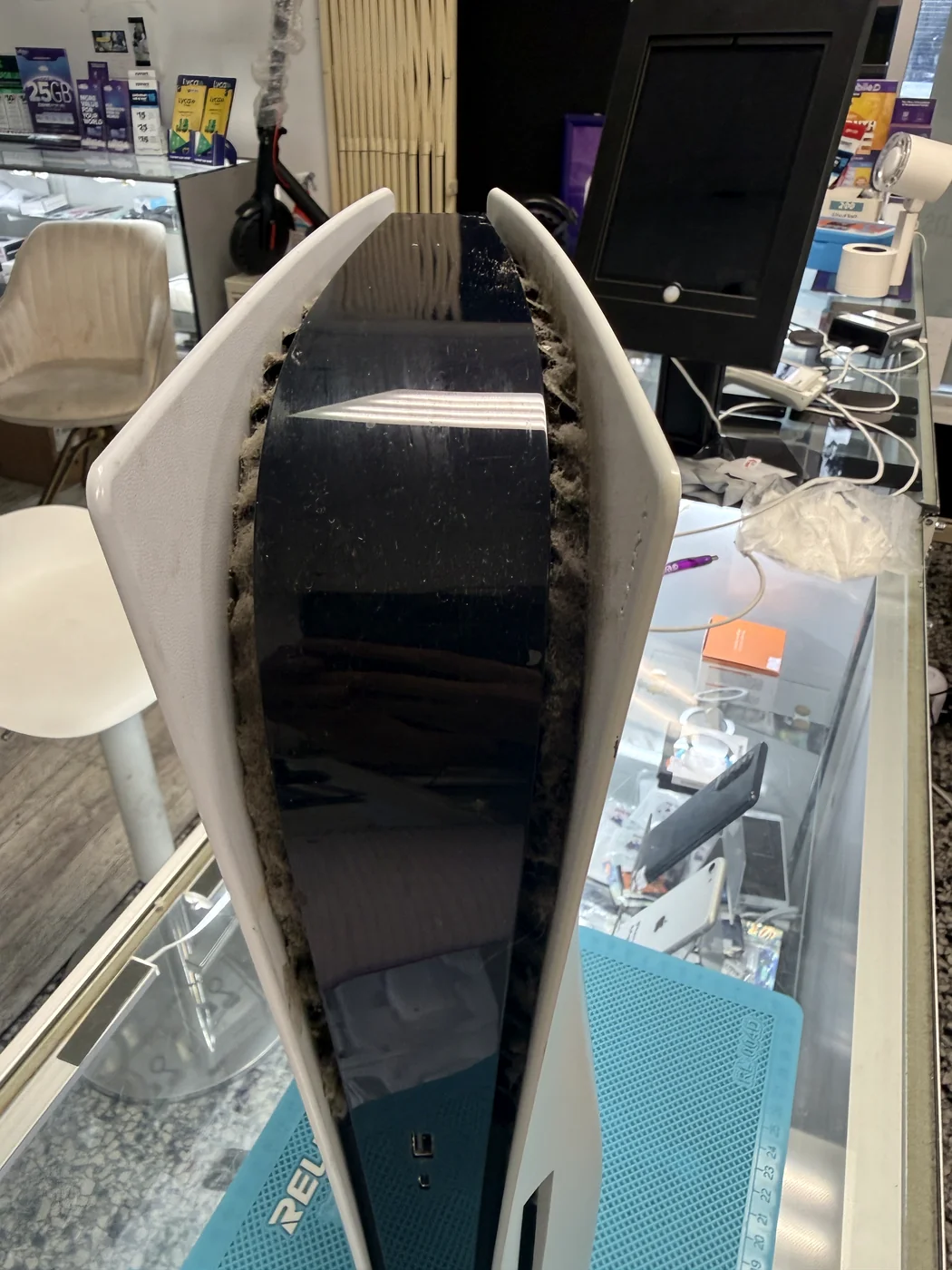

The dust shows before the panels come off
Stand the console up and look down the gap between the white panels and the black core. It should be an air channel. Here it was packed solid. This is what a console breathes through, and this one hadn't been able to breathe for a long time before it went into storage.

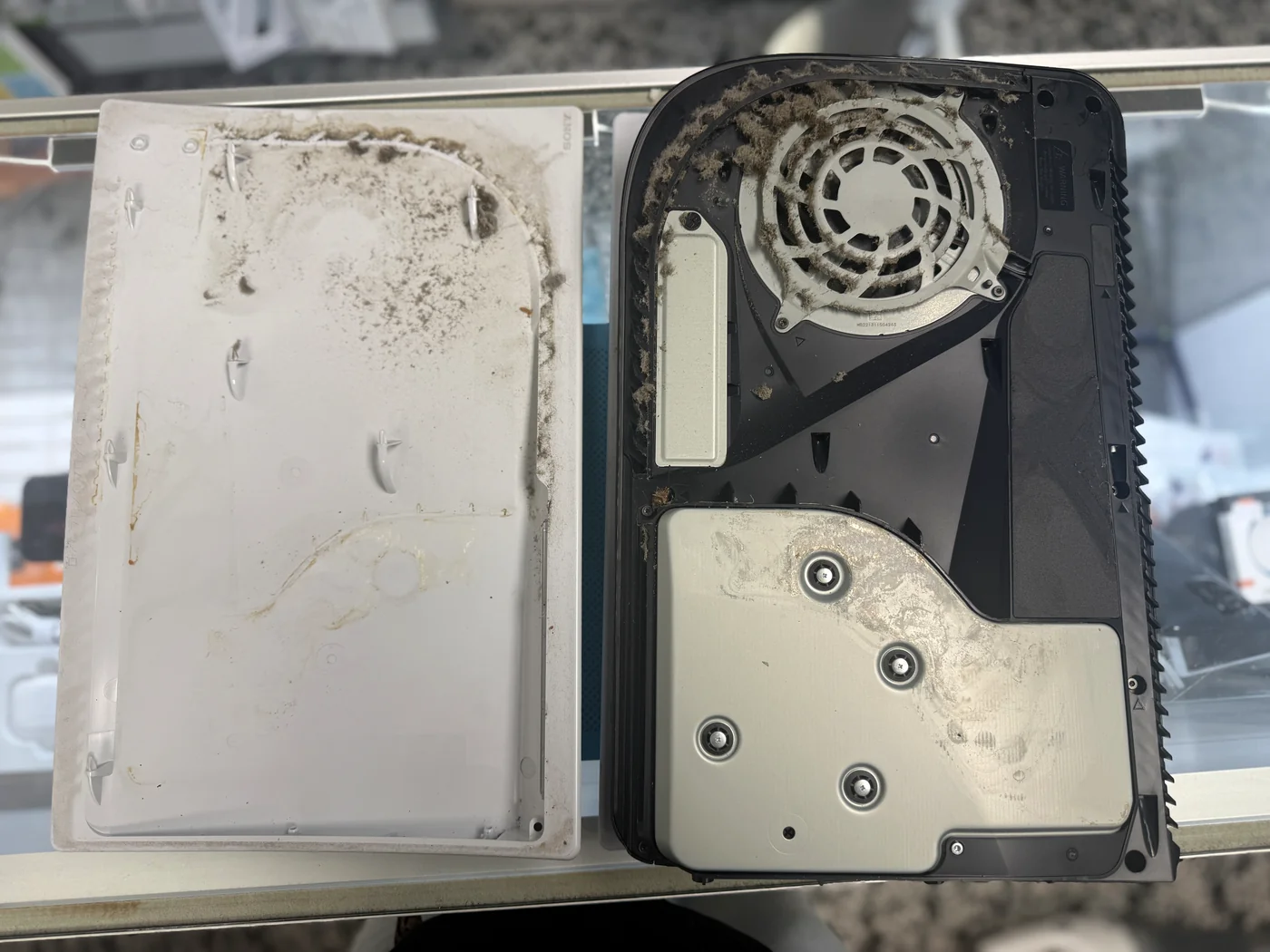

Panels off, fan exposed
The side panels twist off without tools. Underneath, the fan intake and the inside of the panel were coated. Dust like this is why a PS5 gets loud and hot long before anything actually breaks. We set the panels aside for cleaning and kept going toward the port.

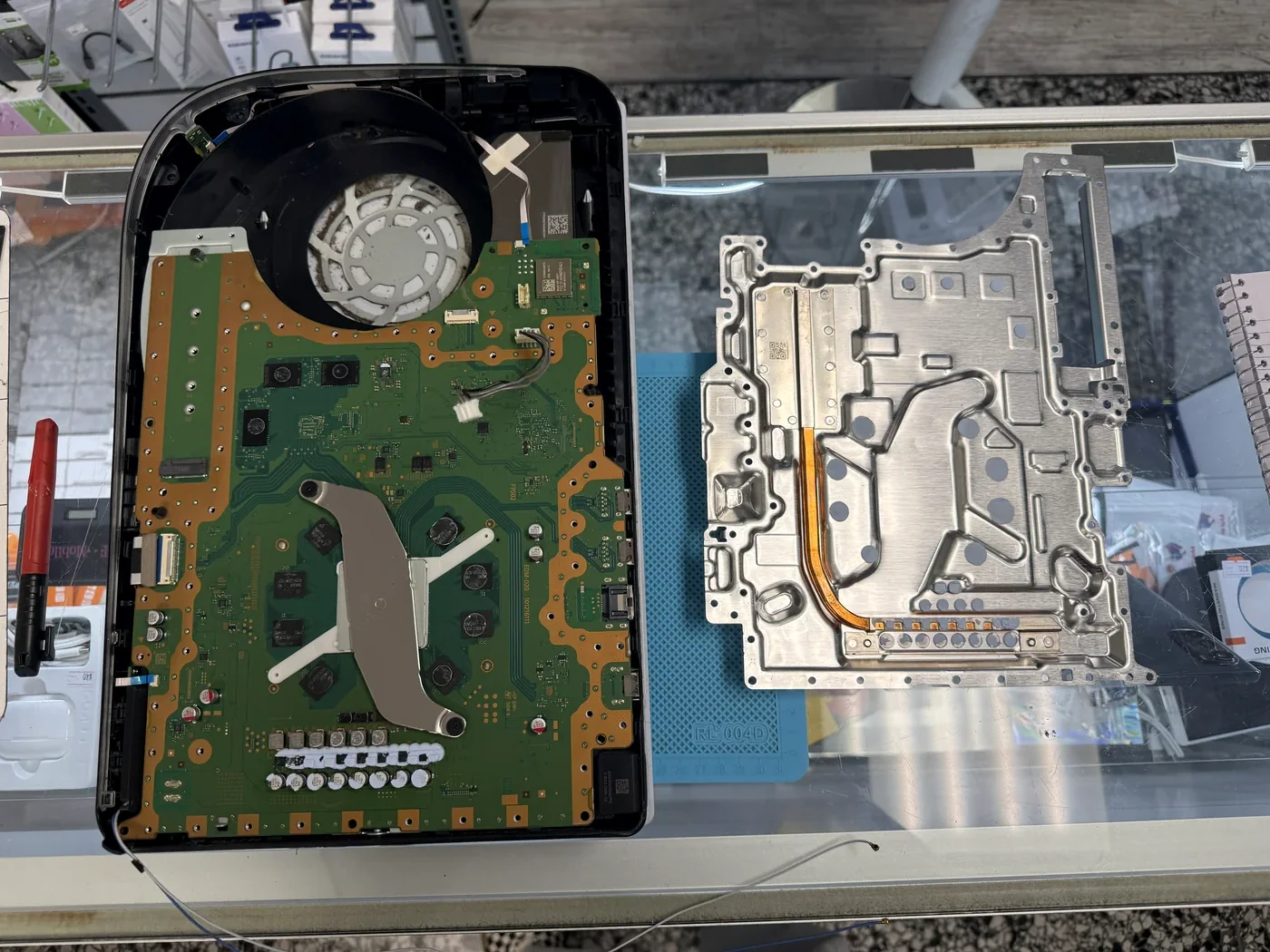

Down to the board
The HDMI port is soldered directly to the mainboard, and the mainboard lives under the heatsink, the shield plate and the fan. All of it comes out. Once the heatsink is off, the APU's liquid metal is exposed, which changes the pace of everything from here: slow hands, no tilting the board.

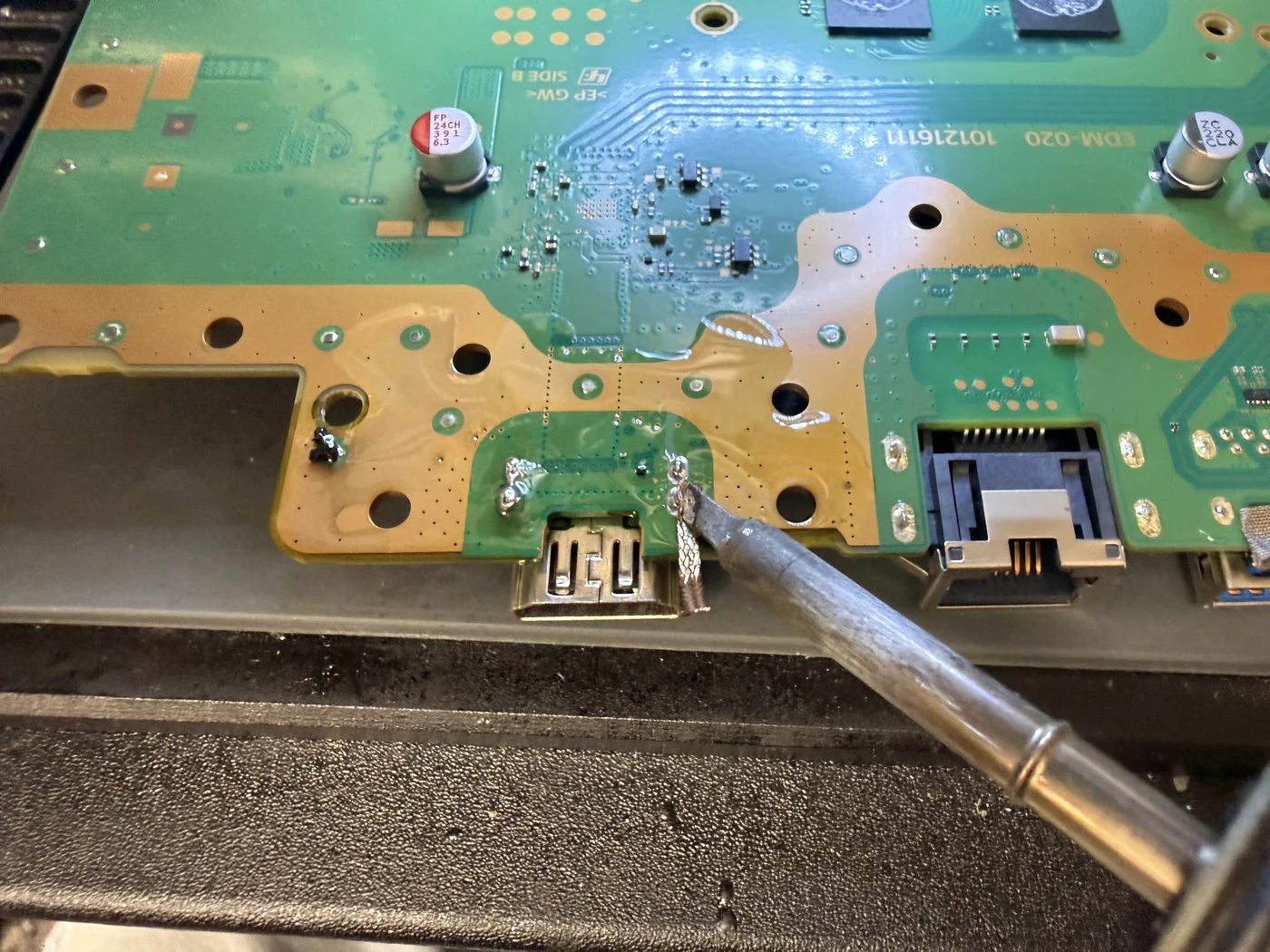

Desoldering the old port
The four shield legs are soldered through the board and anchor the port; the nineteen signal pins sit on surface pads. We clear the legs first with the iron and wick, then bring the pins up under hot air with the surrounding components shielded, so nothing next to the port is disturbed.

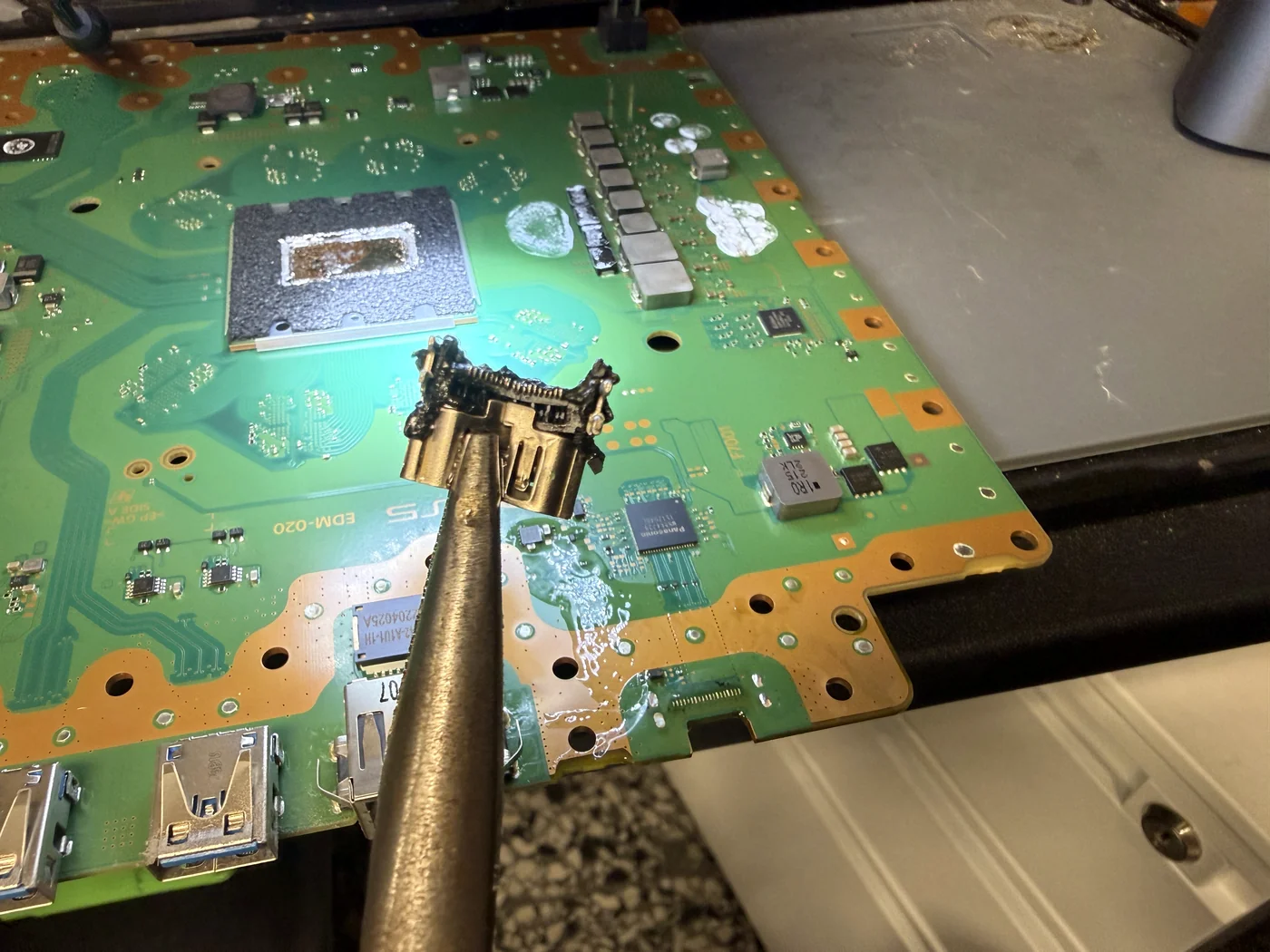

The old port comes off
Once it lifts away you can see what the wobble was: the shield legs had cracked free of their joints and the signal pins had been rocking on the pads. A port in this state can't be re-soldered. It has to be replaced. Every pad then gets the old solder wicked away and cleaned with flux until it's flat.

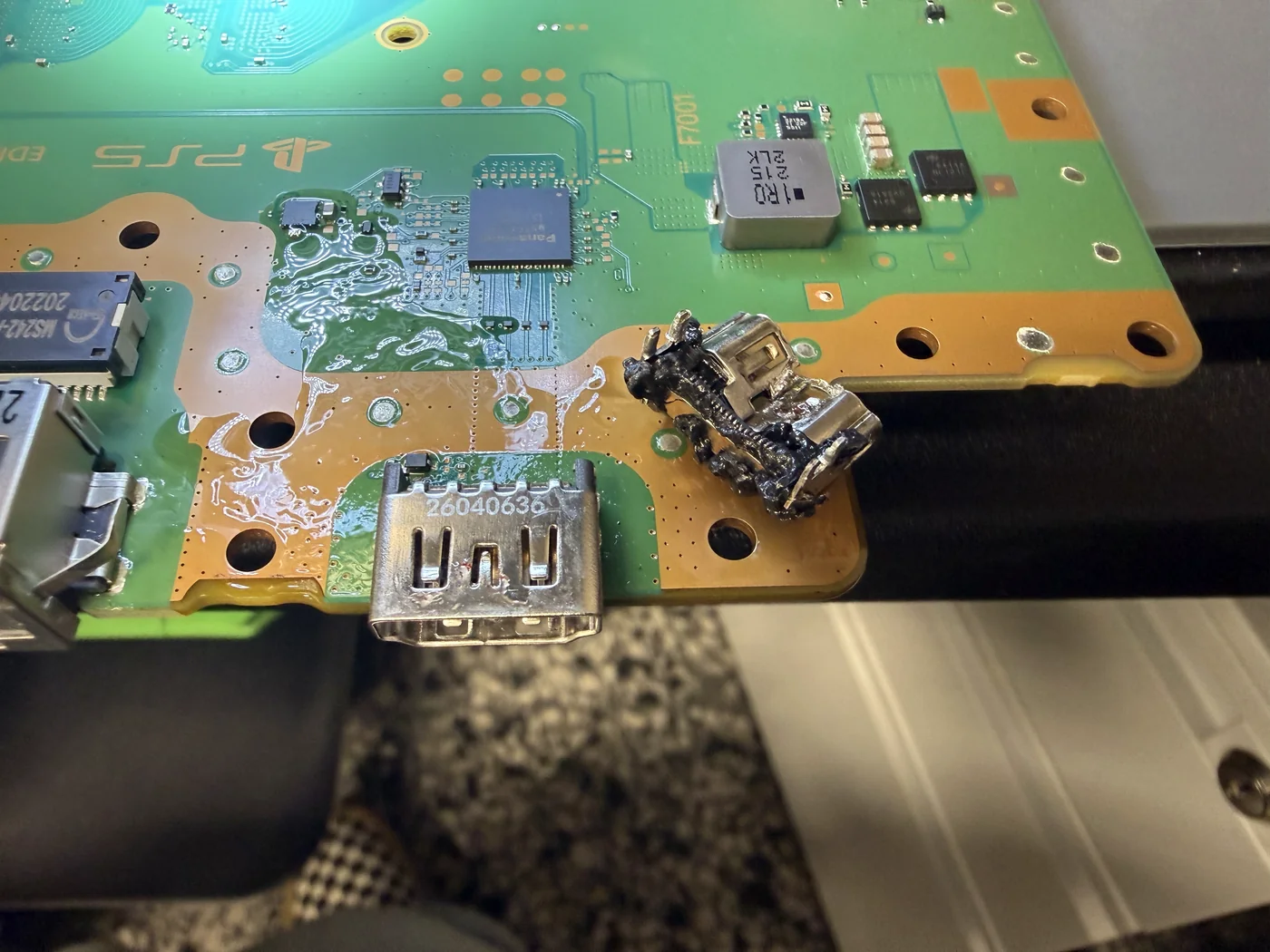

New port seated and soldered
The new port is placed so all nineteen pins land on their pads at once — a port that's a hair off will solder fine and never carry a signal. Pins go down under the microscope one row at a time, then the shield legs are soldered through the board. The legs take the sideways force of a cable, which is exactly what failed on the original, so they get more solder than the factory gives them.

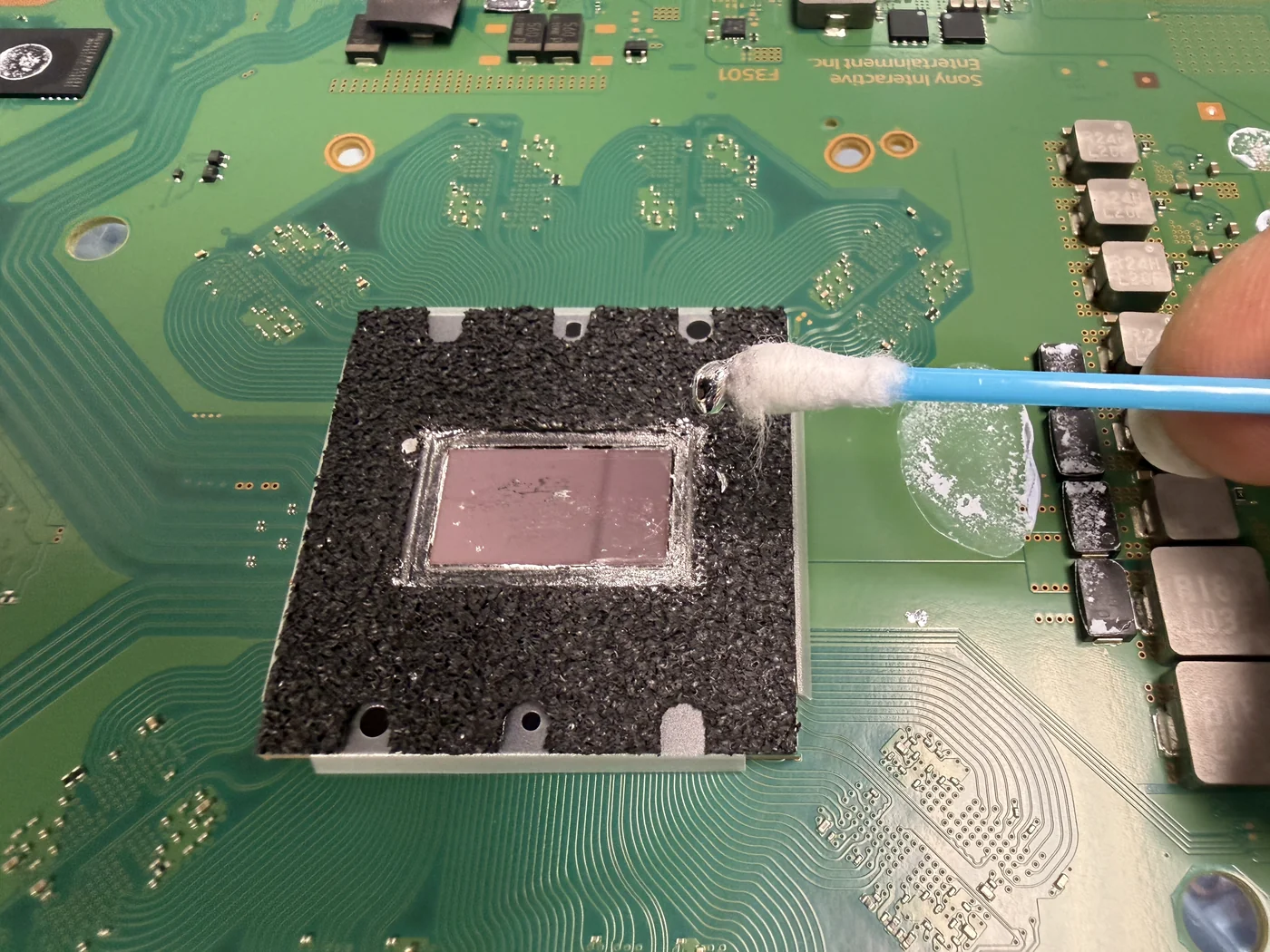

Liquid metal, cleaned and renewed
The PS5 uses liquid metal between the chip and the heatsink instead of ordinary paste. Once the heatsink has been off, we don't reuse what's there. The die is cleaned back to bare and a fresh layer goes on inside the foam barrier. It's the part of a PS5 repair that most punishes a rushed hand, and the reason this job gets the time it gets.

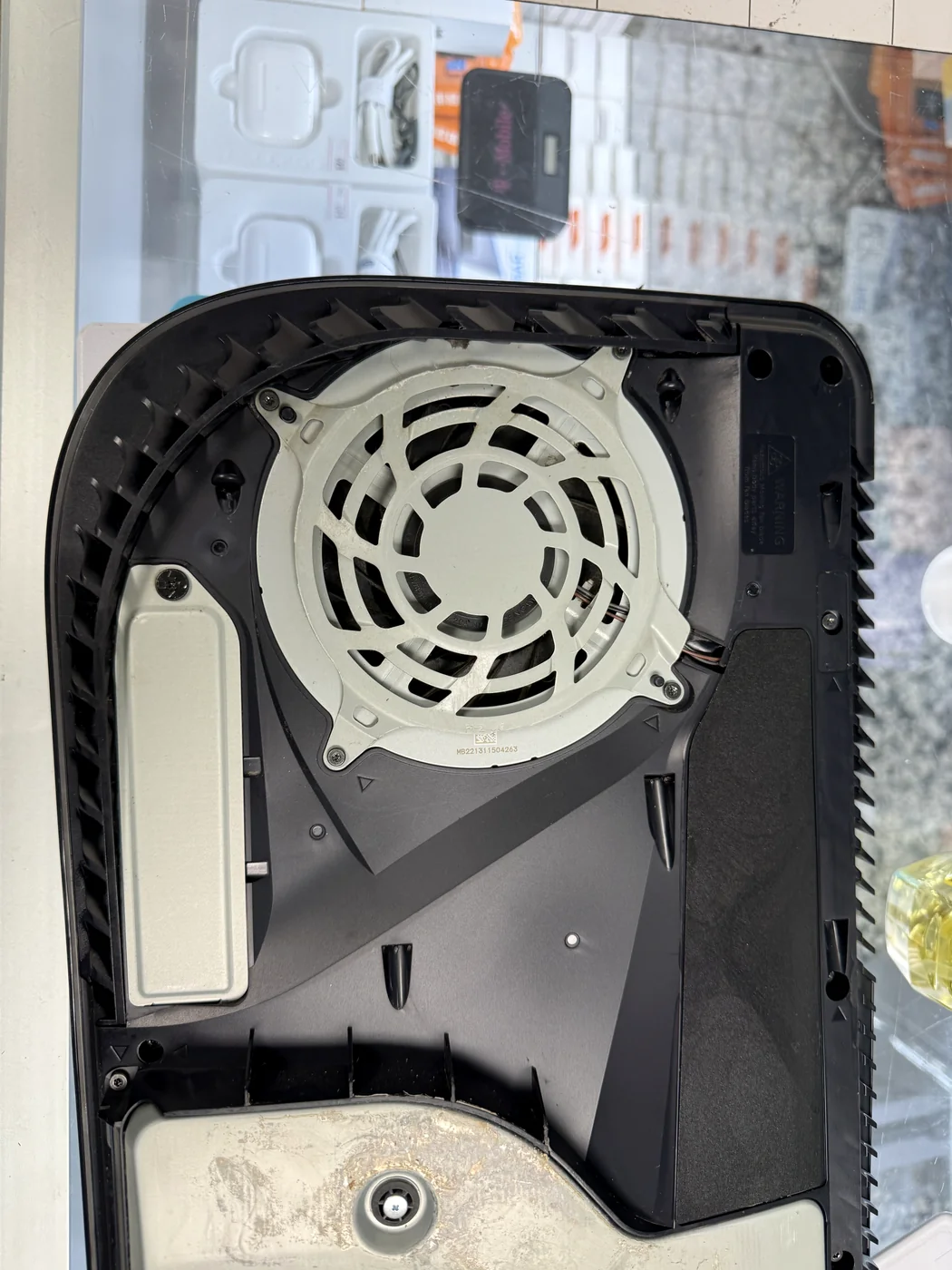

Everything cleaned before it closes
Fan, intake, vents, panels, the inside of the shell. Compare with Step 2. The full cleaning is normally a separate $120 service and adds about an hour, because it's not just blowing air through it — the fan comes out, the panels get washed, the heatsink fins get cleared. On this one, it was our welcome.
Three hours later, a picture
New port, clean console, and a boot screen in Russian.

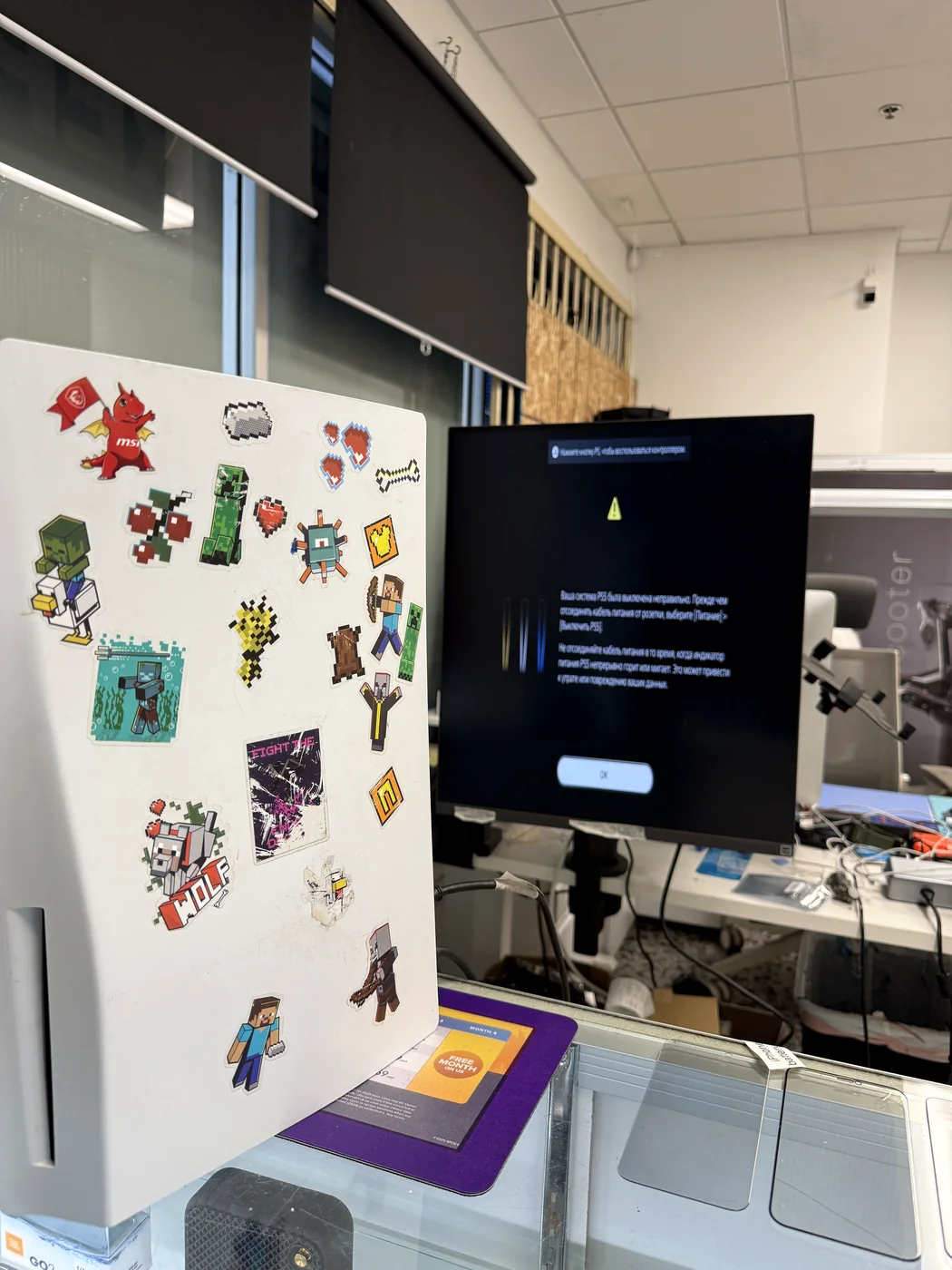

HDMI signal back, fans quiet, temperatures normal
Plugged into the bench monitor, the console handshook on the first try and booted straight to the system screen — set to Russian, which told us a little more about the family. The port sits firm in the housing with no play. Fan noise at idle is back to near-silent after the cleaning. Games, saves and accounts were untouched; nothing about this repair goes near the storage.
The questions that usually follow
Straight answers, as always.
How long does a PS5 HDMI port repair take?
The soldering itself is about two hours of uninterrupted bench time. We ask for one day so the work never has to be rushed around walk-ins, and we often hand it back the same afternoon — this one went out in about three hours.
Why say "one day" if you can do it in three hours?
Because the promise should be the number we can always keep, not the number we sometimes hit. Board-level work goes better when nobody's watching the clock, including us. If it's done early, we call you early.
My PS5 turns on but the TV says no signal. Is it the HDMI port?
Very often, yes — especially if the socket feels loose or the cable has to be held at an angle to get a picture. Try a known-good cable and a different TV input first. If that changes nothing, bring it in and we'll check the port before anything else.
Can a loose PS5 HDMI port just be re-soldered?
Rarely. By the time the port moves, the pins have usually been rocking on their pads and the shield legs have cracked free. Re-heating that gets you a few weeks. Replacing the port with new solder on cleaned pads is the repair that lasts.
Does replacing the HDMI port mean opening the whole console?
Yes. The port is on the mainboard under the heatsink, so the fan, shield and heatsink all come out, and the APU's liquid metal is cleaned and renewed on reassembly. That's part of why the job needs unhurried time.
How much is a PS5 deep cleaning, and is it worth it?
$120 as a standalone service, about an hour, and it's the difference between a console that roars and one you forget is on. If yours is already open on our bench for another repair, ask — it's often cheaper to do at the same time. See what a $120 PS5 cleaning actually includes.
Will I lose my games or saves?
No. An HDMI port replacement never touches the SSD. Games, saves, accounts and settings come back exactly as they were — including the language.
How do I stop it happening again?
Leave slack behind the console so the cable never bends at the plug, use a decent cable, and unplug by the plug body, never the cord. If the console lives in a tight cabinet, an angled HDMI adapter takes the strain off the port.
